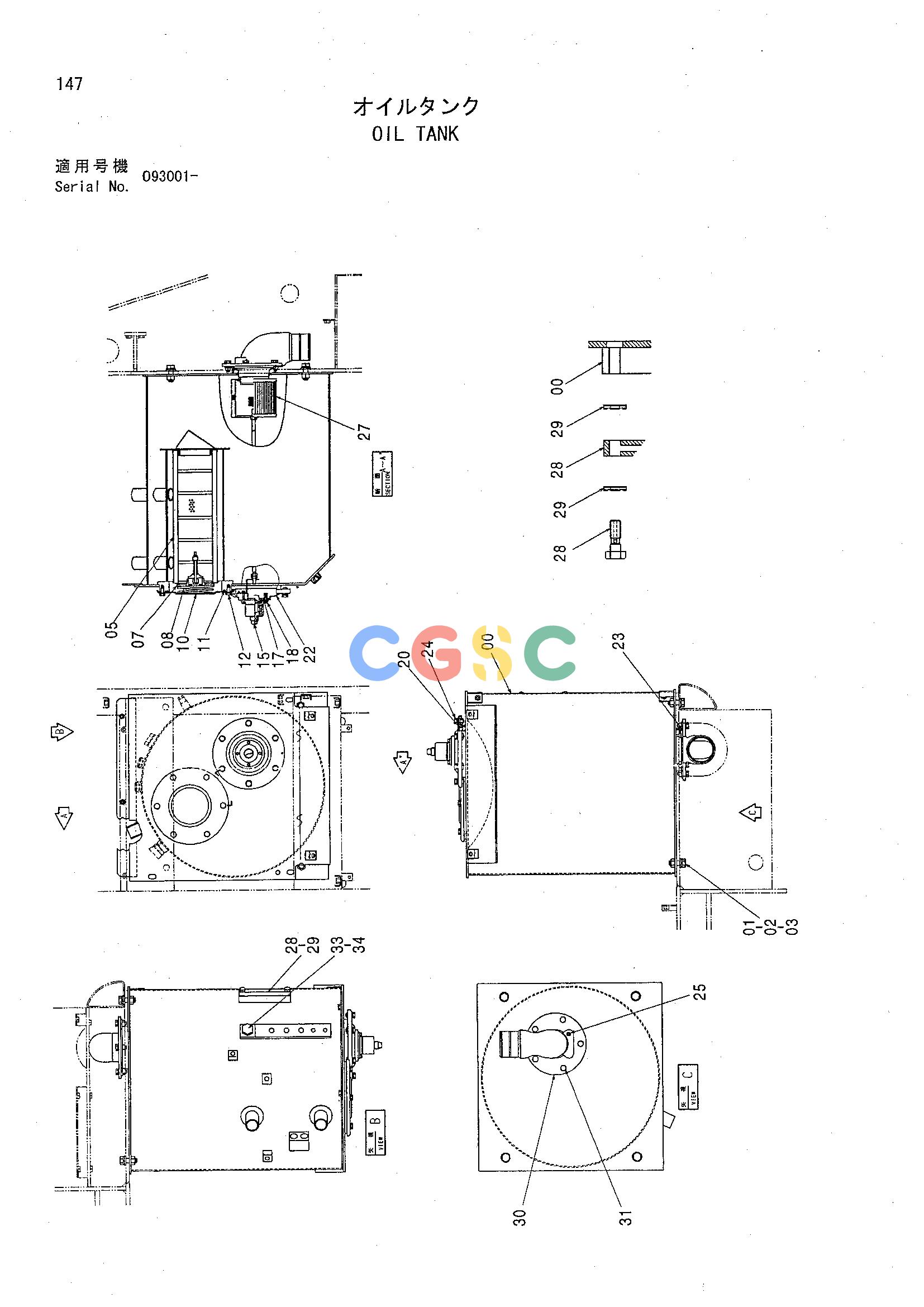

日立零件查询（CHR70）OIL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5006277 | [1] | TANK;OIL | |
| 01. | J901645 | [4] | BOLT | |
| 02. | A590916 | [4] | WASHER;SPRING | |
| 03. | J222016 | [4] | WASHER | |
| 05. | 4292789 | [1] | ELEMENT;FILTER | |
| 07. | 4180414 | [1] | VALVE | |
| 08. | 4226549 | [1] | SPRING | |
| 10. | 4204057 | [1] | COVER | |
| 11. | A810190 | [1] | O-RING | |
| 12. | J011018 | [6] | BOLT;SEMS | |
| 12. | J271020 | [6] | BOLT;SEMS | TJ901020 |
| 12. | J271020 | [6] | BOLT;SEMS | TJ222010 |
| 15. | 4434017 | [1] | BREATHER;AIR | |
| 15A. | 4437833 | [1] | BODY | |
| 15B. | 4437838 | [1] | ELEMENT | |
| 15C. | 4437837 | [1] | COVER | |
| 15D. | 4371825 | [1] | NUT | |
| 15E. | 4437836 | [1] | CAP | |
| 17. | A810060 | [1] | O-RING | |
| 18. | J780616 | [4] | BOLT;SOCKET | |
| 20. | A810160 | [1] | O-RING | |
| 22. | 9184556 | [1] | COVER | |
| 23. | 934333 | [1] | O-RING | |
| 24. | J021025 | [6] | BOLT;SEMS | |
| 24. | J271025 | [6] | BOLT;SEMS | TJ901025 |
| 24. | J271025 | [6] | BOLT;SEMS | TJ222010 |
| 25. | 94-2011 | [1] | PLUG | |
| 27. | 4345417 | [1] | FILTER;SUCTION | |
| 27A. | 4210224 | [1] | STRAINER | |
| 27B. | 4358069 | [1] | ROD | |
| 27C. | J950010 | [3] | NUT | |
| 28. | 8053499 | [1] | GAUGE;LEVEL | |
| 28A. | 4100967 | [2] | BOLT | |
| 29. | 449558 | [4] | WASHER;SEAL | |
| 30. | 2039719 | [1] | PIPE;SUCTION | |
| 31. | J011030 | [5] | BOLT;SEMS | |
| 31. | J271030 | [5] | BOLT;SEMS | TJ901030 |
| 31. | J271030 | [5] | BOLT;SEMS | TJ222010 |
| 33. | 4354135 | [1] | PLUG | |
| 34. | 4354091 | [1] | WASHER;SEAL | |
