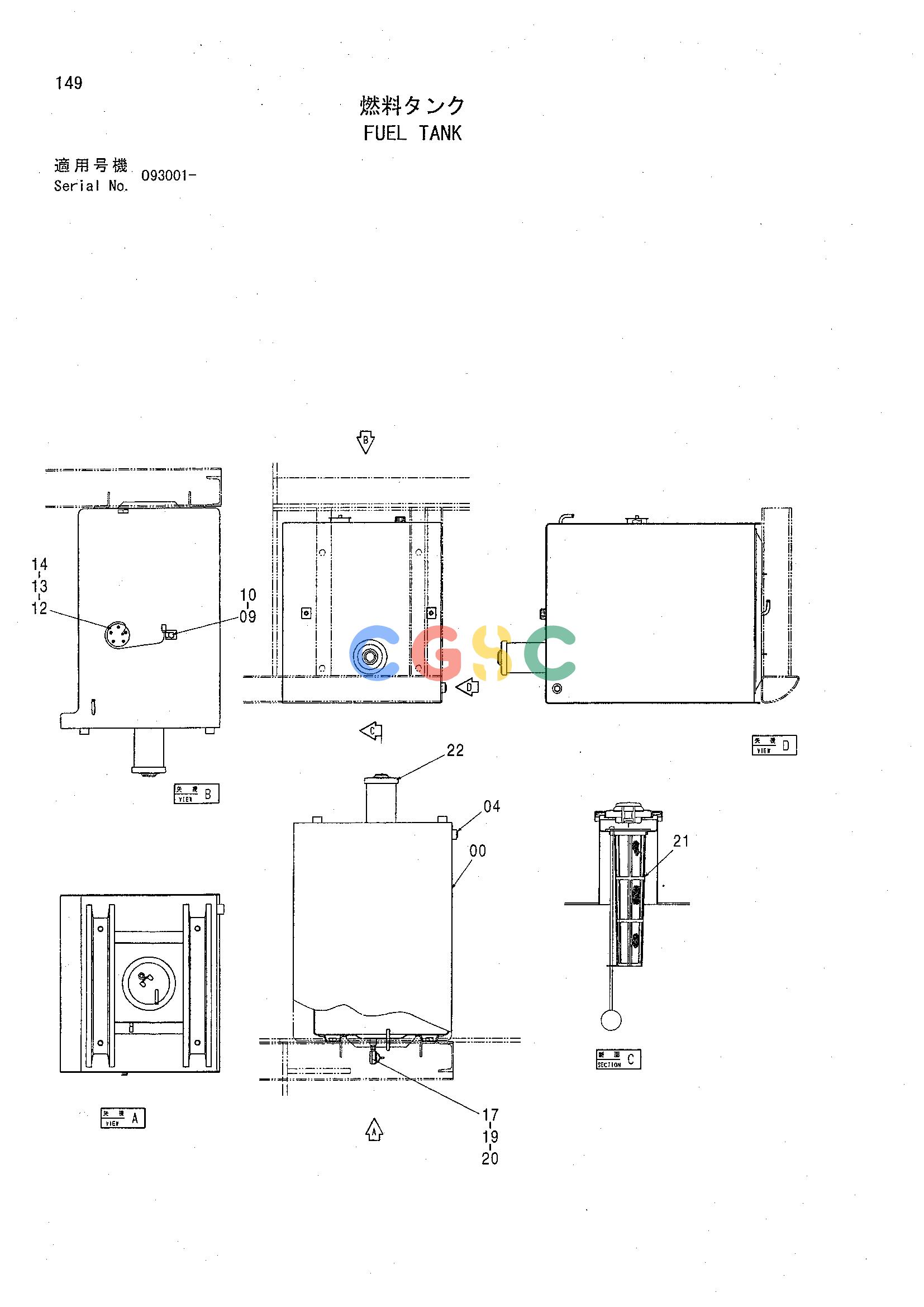

日立零件查询（CHR70）FUEL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5006276 | [1] | TANK;FUEL | |
| 04. | 94-2013 | [1] | PLUG | |
| 09. | 4257159 | [1] | BRACKET | |
| 10. | J011016 | [1] | BOLT;SEMS | |
| 10. | J271016 | [1] | BOLT;SEMS | TJ901016 |
| 10. | J271016 | [1] | BOLT;SEMS | TJ222010 |
| 12. | J450510 | [5] | SCREW;SEMS | |
| 13. | 4269607 | [1] | PACKING | |
| 14. | 4257128 | [1] | FLOAT | |
| 17. | 4374265 | [1] | VALVE;BALL | |
| 19. | J70782 | [1] | ADAPTER | |
| 20. | 94-2011 | [1] | PLUG | |
| 21. | 4353560 | [1] | STRAINER | |
| 21A. | 4372619 | [1] | STRAINER | |
| 21B. | 4372620 | [1] | FLOAT | |
| 22. | 4361638 | [1] | CAP | |
| 22A. | 4168820 | [1] | PACKING;RUBBER | |
