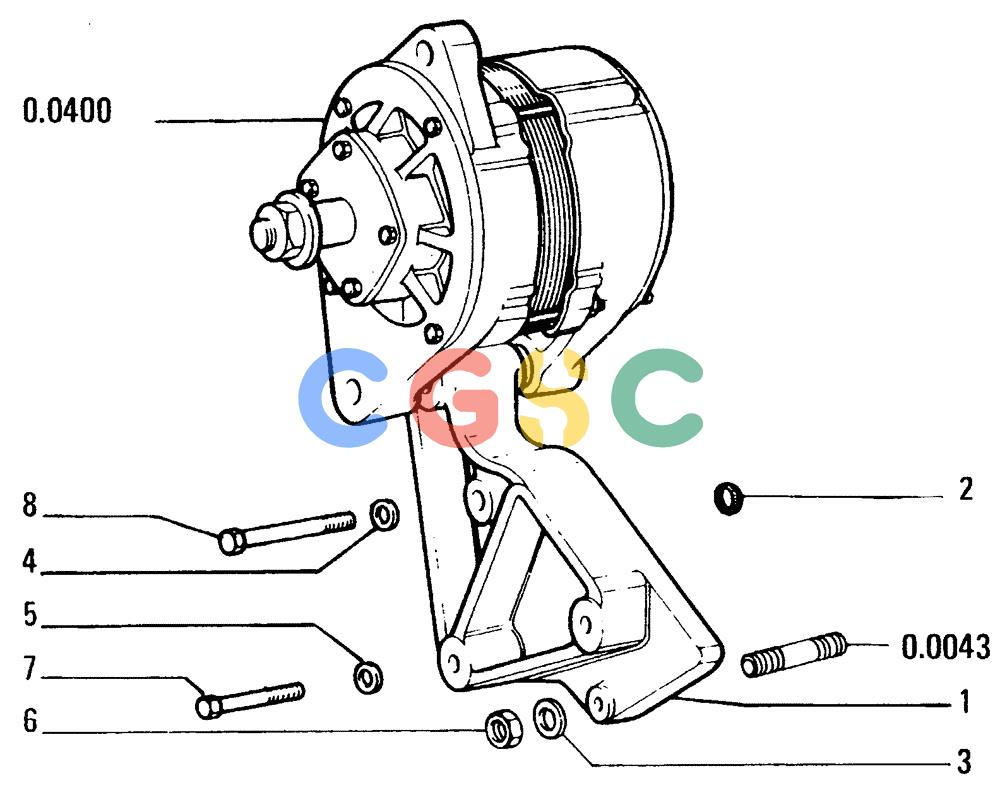

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0350[002]) - CONTROL-POWER TAKE-OFF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4722522 | [1] | SUPPORT | LEC |
| 2. | 14455280 | [1] | O-RING,2.239" ID x 0.07" Width | MKT0-RING 1,78x56,87 |
| 3. | 11197779 | [1] | BELLEVILLE WASHER,6.40mm ID x 12.00mm OD x 1.20mm, 1.63mm, Cl 8.8, ZNM | TTFWASHER 6,4x12 Superseded by part number: 17088474 |
| 4. | 12646701 | [1] | WASHER,8.15mm ID x 20mm OD x 2mm Thk | TTFLOCKWASHER 8.15x20 Superseded by part number: 12646721 |
| 5. | 11198379 | [2] | SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk | TTFLOCKWASHER 10,5x20 Superseded by part number: 11198374 |
| 6. | 15896211 | [1] | NUT,M6, Cl 8 | JES Superseded by part number: 17037821 |
| 7. | 15972724 | [2] | SCREW,Hex, M10 x 1.25 x 145mm, Cl 8.8 | LEC10x1,25x32,0 Superseded by part number: 15972721 |
| 8. | 16044821 | [1] | SCREW,Hex, M8 x 80mm, Cl 8.8 | TTFBOLT, Hex, M8 x 80, 8.8 Superseded by part number: 43133 |
