纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0360[001]) - STARTER MOTOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
354 次

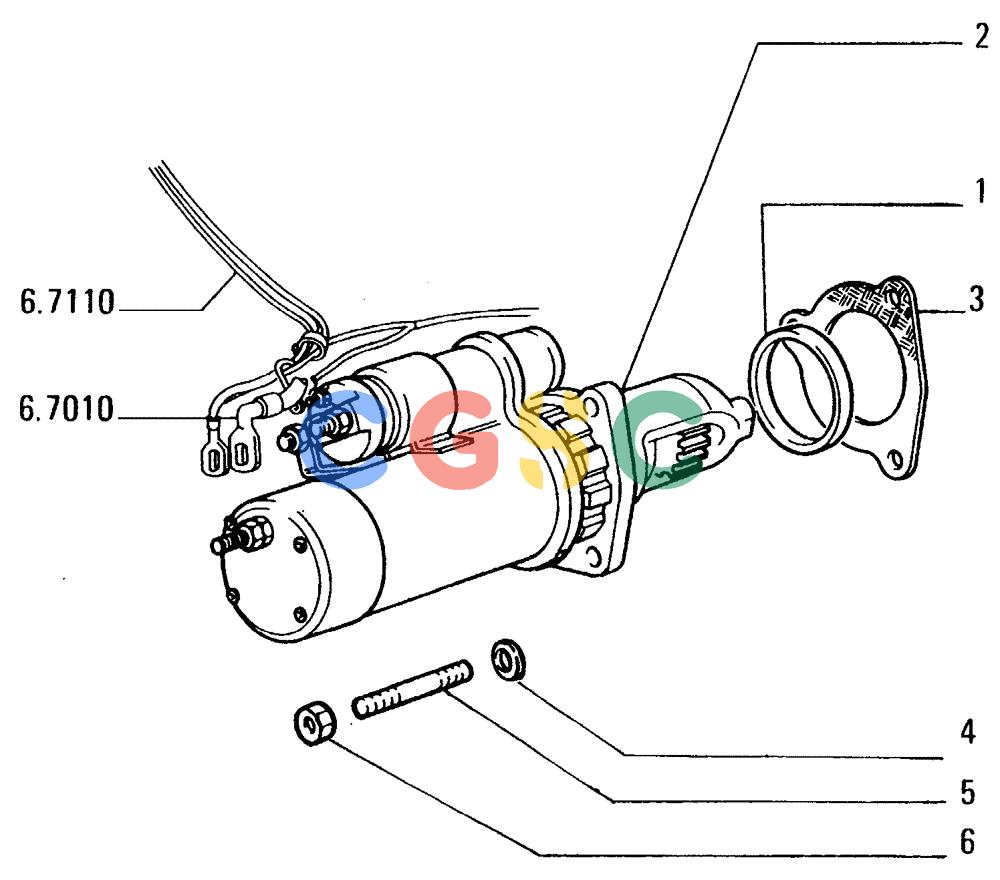

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4749164 | [1] | RING | LECSPACER |
| 2. | 4816170 | [1] | STARTER MOTOR | LEC- ASSEMBLY SEE TAV.2 |
| 3. | 4851384 | [1] | GASKET | LECSEAL Superseded by part number: 98418537 |
| 4. | 11194174 | [3] | BELLEVILLE WASHER,Conical Spring, 15.00mm ID x 27.00mm OD x 3.00mm, 3.60mm, DAC | TTFWASHER, SPRING, Belleville, M15 |
| 5. | 11797524 | [3] | STUD | LEC14x1,5x60 Superseded by part number: 11797531 |
| 6. | 12164021 | [3] | NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND | TTFM14 x 1.5, Cl 10 Superseded by part number: |
