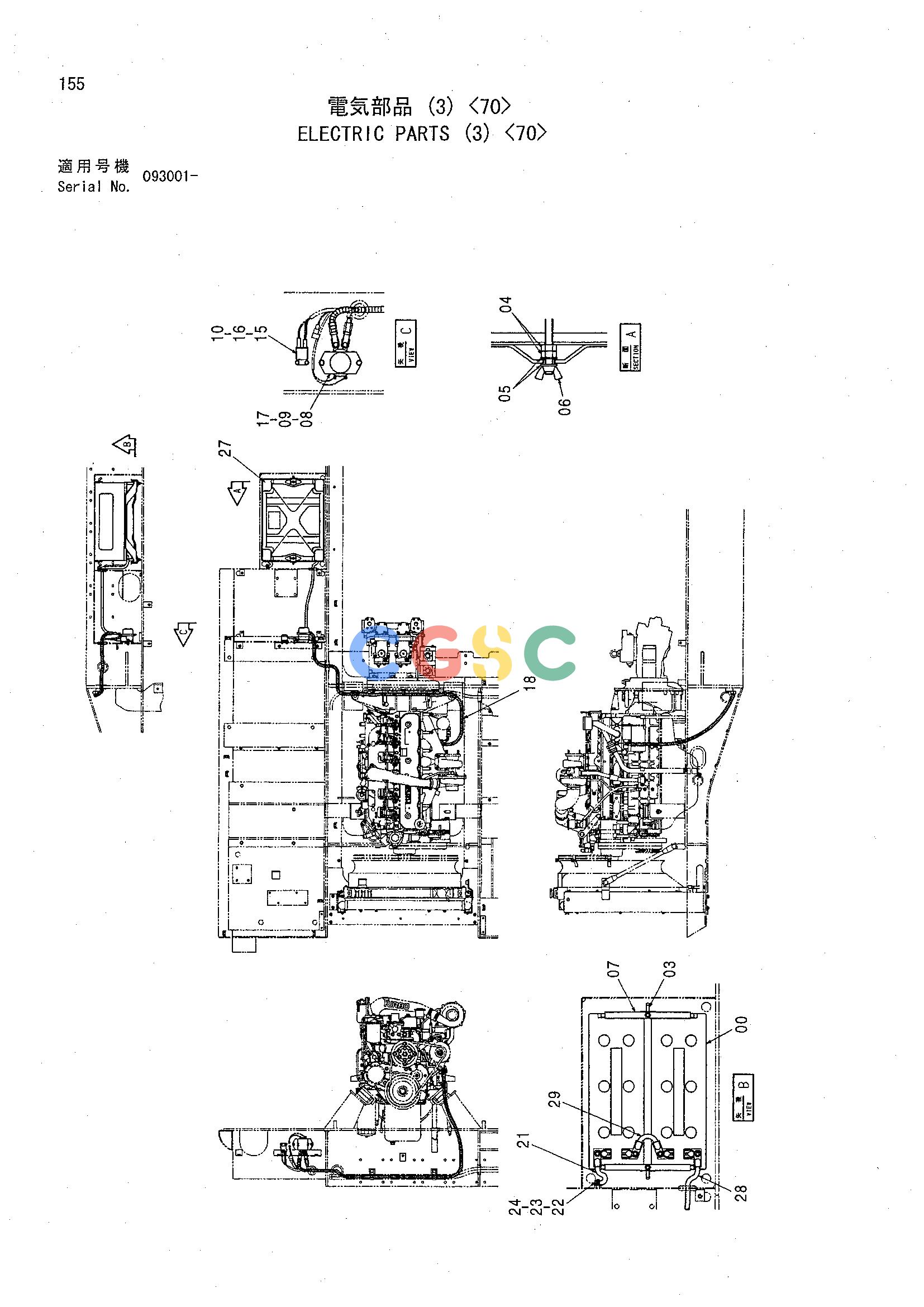

日立零件查询（CHR70）ELECTRIC PARTS (3) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4177881 | [2] | BATTERY | |
| 03. | 4257034 | [2] | BOLT;HOOK | |
| 04. | J950010 | [4] | NUT | |
| 05. | A590110 | [4] | WASHER;PLANE | |
| 06. | M570010 | [2] | NUT;WING | |
| 07. | 4435074 | [2] | SUPPORT | |
| 08. | 4255762 | [1] | RELAY;BATTERY | |
| 09. | J020830 | [2] | BOLT;SEMS | |
| 09. | J260830 | [2] | BOLT;SEMS | TJ900830 |
| 09. | J260830 | [2] | BOLT;SEMS | TA590108 |
| 10. | M500605 | [2] | NUT | |
| 15. | 4251587 | [1] | RELAY | |
| 16. | J020620 | [2] | BOLT;SEMS | |
| 16. | J260620 | [2] | BOLT;SEMS | TJ900620 |
| 16. | J260620 | [2] | BOLT;SEMS | TA590106 |
| 17. | M500807 | [2] | NUT | |
| 18. | 4412792 | [1] | HARNESS;WIRE | |
| 21. | 4263509 | [1] | HARNESS;WIRE | |
| 22. | J950010 | [1] | NUT | |
| 23. | A590910 | [1] | WASHER;SPRING | |
| 24. | A590110 | [1] | WASHER;PLANE | |
| 27. | 4351892 | [1] | COVER;BATTERY | |
| 28. | 4412791 | [1] | HARNESS;WIRE | |
| 29. | 4350736 | [1] | HARNESS;WIRE | |
