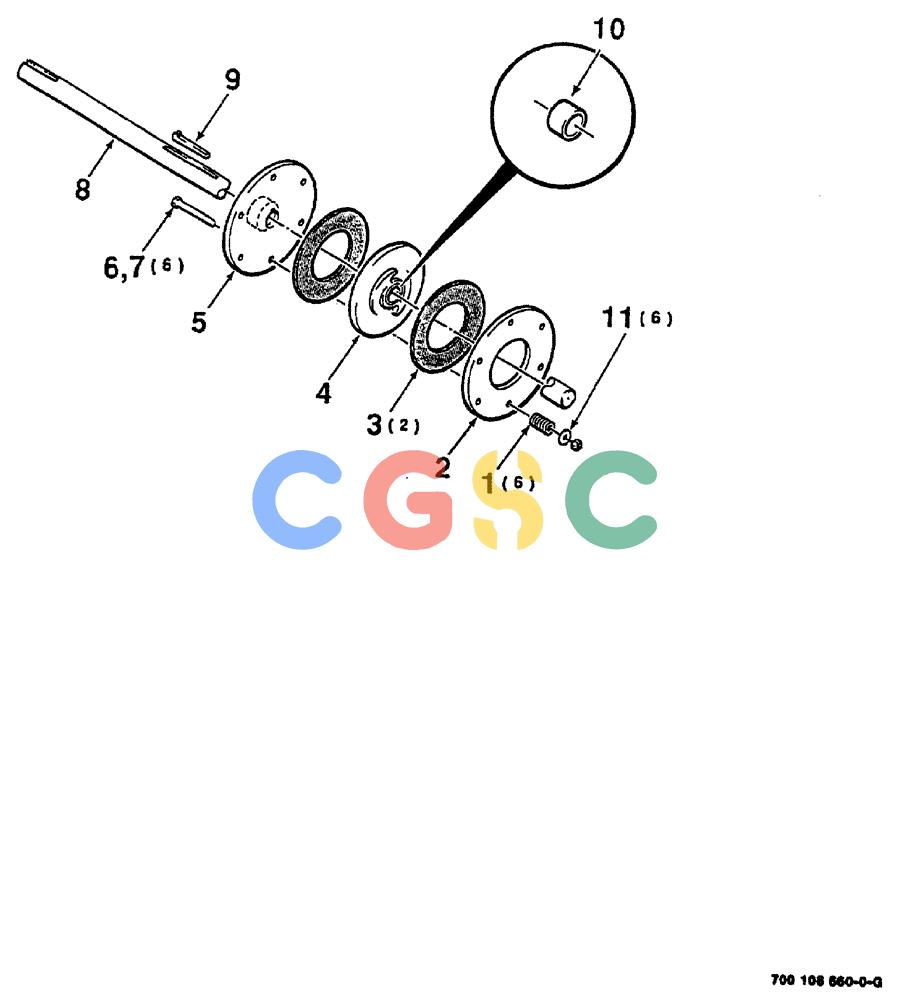

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (03-10) - CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
719 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
58107
|
[6] |
SPRING
|
IH
compression
|
| 2. |
392464
|
[1] |
LARGE PLATE
|
CAS
PLATE, LARGE pressure
|
| 3. |
700711025
|
[2] |
CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk
|
CAS
clutch
|
| 4. |
700108665
|
[1] |
CLUTCH ASSEMBLY
|
CAS
Includes: Ref. 10
|
| 5. |
700108661
|
[1] |
PLATE
|
CAS
WA, clutch
|
| 6. |
413-652
|
[6] |
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
|
CAS
Superseded by part number: 9637240
|
| 7. |
230-4216
|
[6] |
LOCK NUT,3/8"-16, GA
|
CAS
Center Superseded by part number: 87039402
|
| 8. |
700108671
|
[1] |
SHAFT
|
CAS
|
| 9. |
Q3914
|
[1] |
KEY,Gib, 1/4" Sq x 1 1/2"
|
IH
1/4 x 1-1/2, GIB
|
| 10. |
852749
|
[1] |
BRONZE BUSHING
|
CAS
bronze
|
| 11. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
