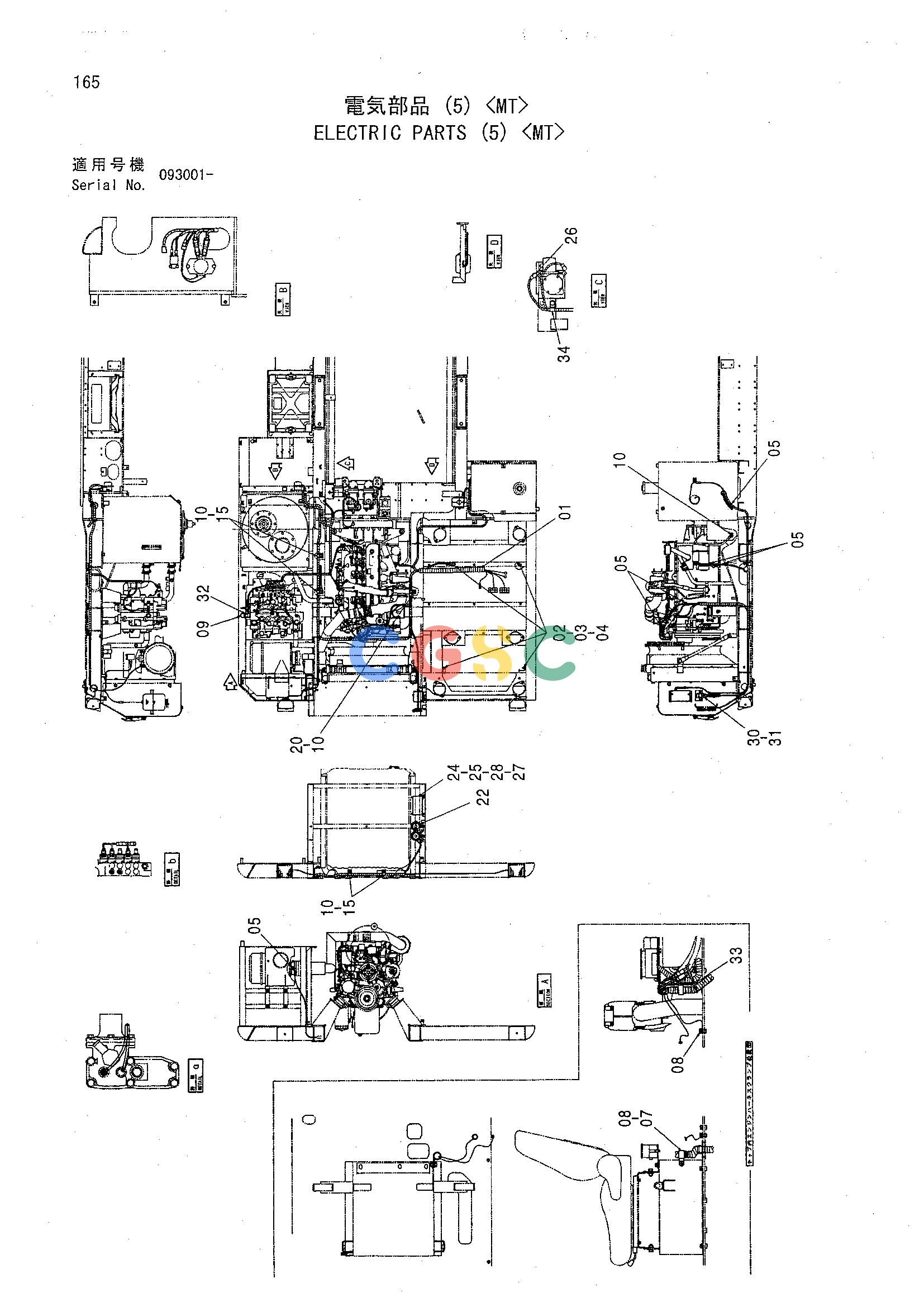

日立零件查询（CHR70）ELECTRIC PARTS (5) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
304 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 0003832 | [1] | HARNESS;WIRE | |
| 02. | J950010 | [4] | NUT | |
| 03. | A590910 | [4] | WASHER;SPRING | |
| 04. | A590110 | [4] | WASHER;PLANE | |
| 05. | 4055311 | [8] | CLIP;BAND | |
| 07. | 4190264 | [1] | CLIP | |
| 08. | J021025 | [2] | BOLT;SEMS | |
| 08. | J271025 | [2] | BOLT;SEMS | TJ901025 |
| 08. | J271025 | [2] | BOLT;SEMS | TJ222010 |
| 09. | 4207239 | [1] | CAP | |
| 10. | J011020 | [7] | BOLT;SEMS | |
| 10. | J271020 | [7] | BOLT;SEMS | TJ901020 |
| 10. | J271020 | [7] | BOLT;SEMS | TJ222010 |
| 11. | 4190261 | [1] | CLIP | |
| 15. | 4190273 | [4] | CLIP | |
| 20. | 4190274 | [1] | CLIP | |
| 22. | 9170745 | [1] | HORN | |
| 24. | 4179752 | [1] | BUZZER | |
| 25. | J900802 | [2] | BOLT | |
| 26. | 4257159 | [1] | BRACKET | |
| 27. | A590108 | [2] | WASHER;PLANE | |
| 28. | A590908 | [2] | WASHER;SPRING | |
| 30. | 4279835 | [1] | RELAY;SAFETY | |
| 31. | J010816 | [2] | BOLT;SEMS | |
| 31. | J260816 | [2] | BOLT;SEMS | TJ900816 |
| 31. | J260816 | [2] | BOLT;SEMS | TA590108 |
| 32. | 4055312 | [1] | CLIP;BAND | |
| 33. | 4055312 | [1] | CLIP;BAND | |
| 34. | 4190272 | [1] | CLIP | |
