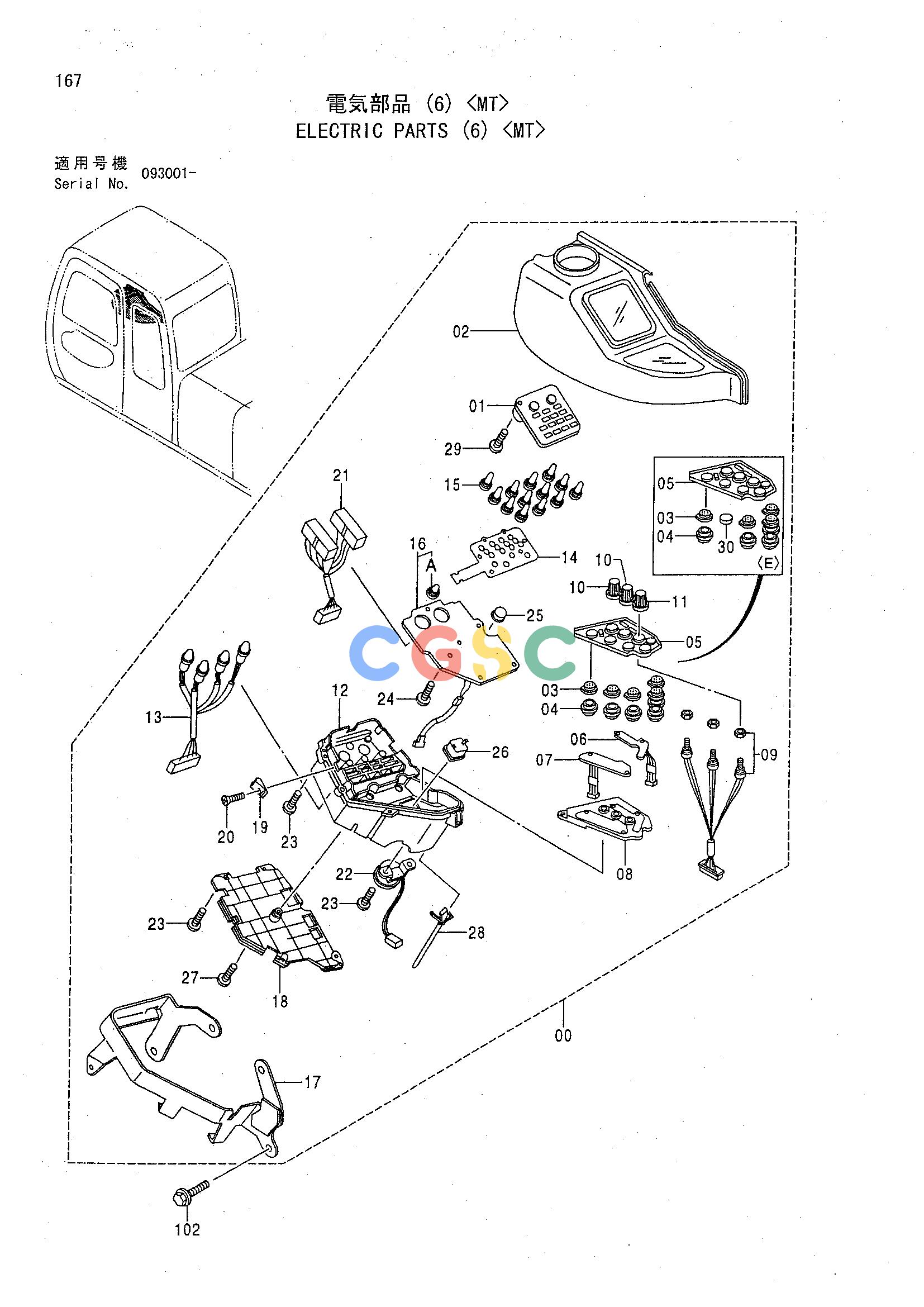

日立零件查询（CHR70）ELECTRIC PARTS (6) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
307 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4411758 | [1] | MONITOR | |
| 01. | 4377735 | [1] | METER | |
| 02. | 4420939 | [1] | CASE | |
| 03. | 4370113 | [4] | SWITCH | |
| 04. | 4310827 | [4] | CASE | |
| 05. | 4370114 | [1] | SWITCH | |
| 06. | 4370115 | [1] | SWITCH-BOARD | |
| 07. | 4370116 | [1] | SWITCH-BOARD | |
| 08. | 4370117 | [1] | BOARD | |
| 09. | 4370118 | [1] | SWITCH;ROTARY | |
| 10. | 4370119 | [2] | KNOB | |
| 11. | 4370137 | [1] | KNOB | |
| 12. | 4370138 | [1] | CASE | |
| 13. | 4370139 | [1] | LED | |
| 14. | 4370140 | [1] | BOARD | |
| 15. | 4370141 | [13] | LAMP;SOCKET | |
| 16. | 4370142 | [1] | BOARD;PRINTED | |
| 16A. | 4370141 | [1] | LAMP;SOCKET | |
| 17. | 4370144 | [1] | BRACKET | |
| 18. | 4370145 | [1] | COVER | |
| 19. | 4370146 | [2] | NUT | |
| 20. | 4370147 | [2] | SCREW;TAPPING | |
| 21. | 4370148 | [1] | RESISTOR | |
| 22. | 4370149 | [1] | BUZZER | |
| 23. | 4294999 | [19] | SCREW | |
| 24. | 4370154 | [6] | SCREW;SET | |
| 25. | 4297127 | [1] | CAP | |
| 26. | 4297105 | [1] | CAP | |
| 27. | 4297101 | [1] | SCREW | |
| 28. | 4370155 | [1] | CLAMP | |
| 29. | 4370156 | [1] | SCREW;SET | |
| 30. | 4310828 | [1] | CAP | |
| 102. | J010814 | [4] | BOLT;SEMS | |
| 102. | J260814 | [4] | BOLT;SEMS | TJ900816 |
| 102. | J260814 | [4] | BOLT;SEMS | TA590108 |
