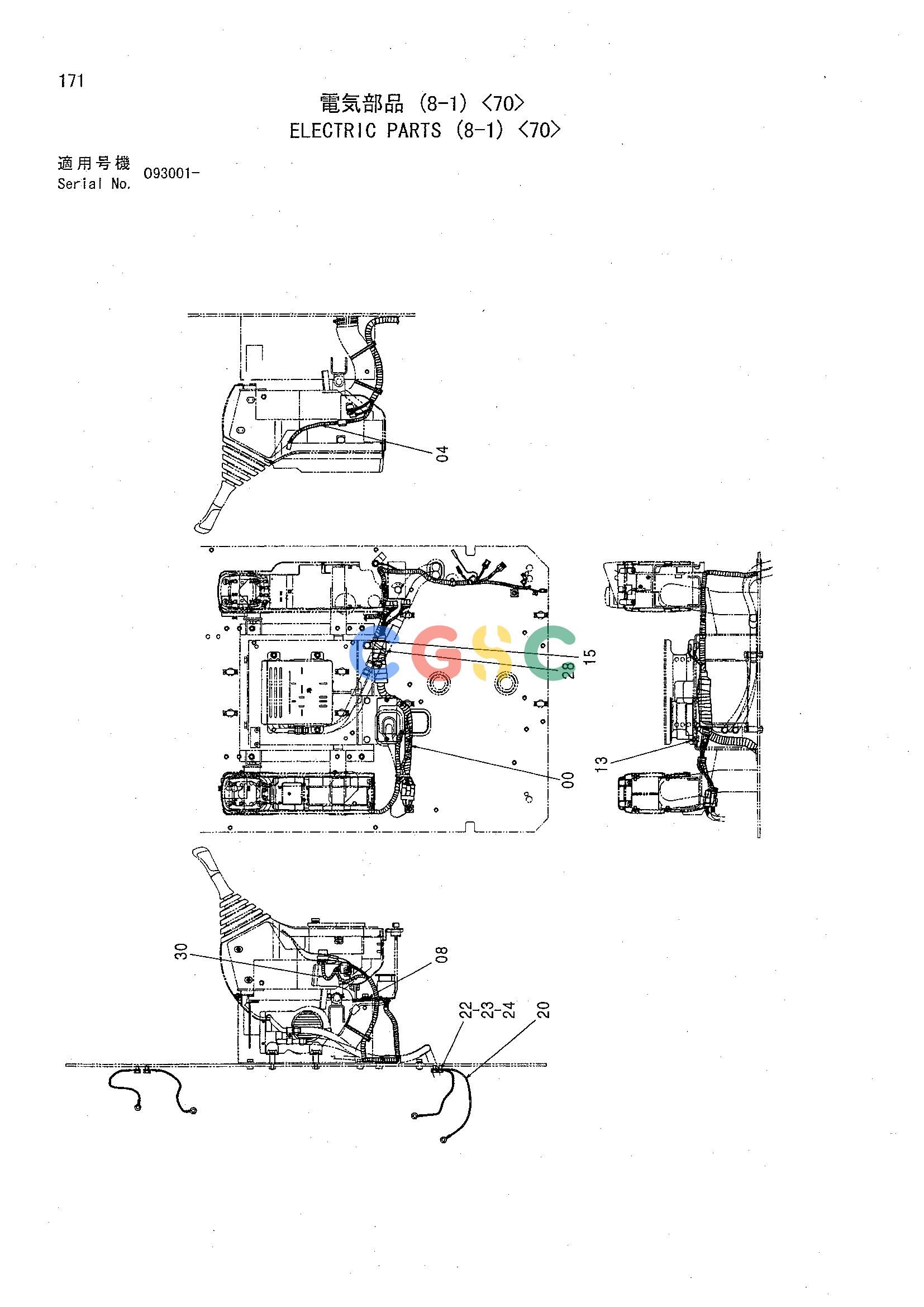

日立零件查询（CHR70）ELECTRIC PARTS (8-1) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
509 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 0002655 | [1] | HARNESS;WIRE | |
| 00A. | 4349781 | [1] | BOX;FUSE | |
| 00B. | 4378012 | [1] | COVER | |
| 00C. | 4195593 | [7] | FUSE (5A) | |
| 00D. | 4195594 | [5] | FUSE (10A) | |
| 00E. | 4195596 | [2] | FUSE (20A) | |
| 00F. | 4195593 | [2] | FUSE (5A,SPARE) | |
| 00G. | 4195594 | [1] | FUSE (10A,SPARE) | |
| 00H. | 4195595 | [1] | FUSE (20A,SPARE) | |
| 04. | 4277927 | [1] | HARNESS;WIRE | |
| 08. | 4121859 | [4] | CLIP;BAND | |
| 13. | J450620 | [2] | SCREW;SEMS | |
| 15. | 4190264 | [1] | CLIP | |
| 20. | 4281293 | [4] | HARNESS;WIRE | |
| 22. | J901016 | [4] | BOLT | |
| 23. | A590910 | [4] | WASHER;SPRING | |
| 24. | A590110 | [4] | WASHER;PLANE | |
| 28. | 4055312 | [1] | CLIP;BAND | |
| 30. | 2043974 | [1] | HARNESS;WIRE | |
