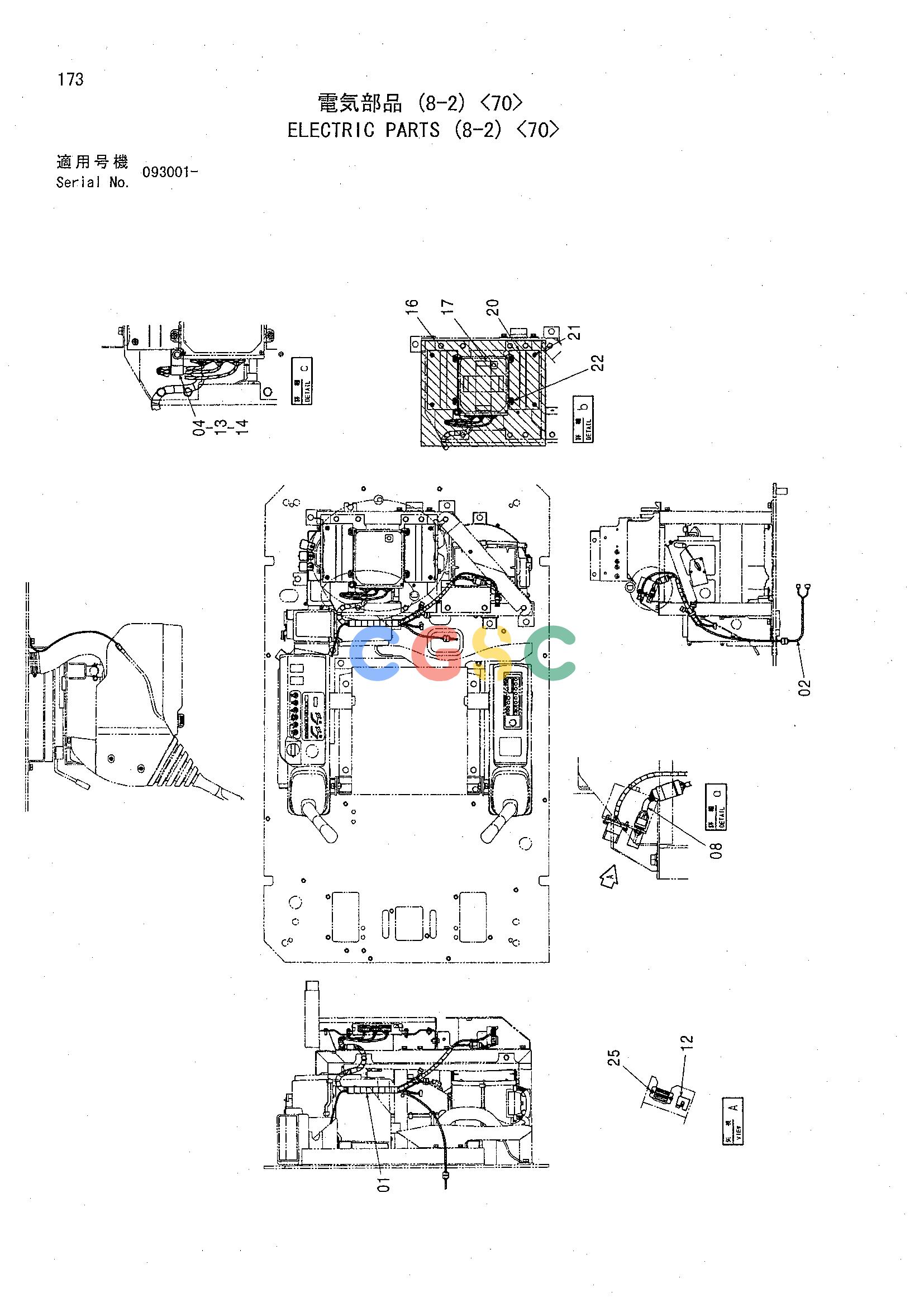

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 1028836 | [1] | HARNESS;WIRE | |
| 02. | 4455108 | [1] | HARNESS;WIRE | |
| 04. | 4190275 | [1] | CLIP | |
| 08. | 4359384 | [1] | SWITCH | |
| 12. | 4367375 | [1] | BRACKET | |
| 13. | J260616 | [1] | BOLT;SEMS | |
| 14. | A590108 | [1] | WASHER;PLANE | |
| 16. | 3075379 | [1] | COVER | |
| 17. | 4365396 | [4] | TAPE | |
| 20. | 9745785 | [2] | BRACKET | |
| 21. | J450616 | [4] | SCREW;SEMS | |
| 22. | J460625 | [4] | SCREW;SEMS | |
| 25. | J460310 | [2] | SCREW;SEMS |
