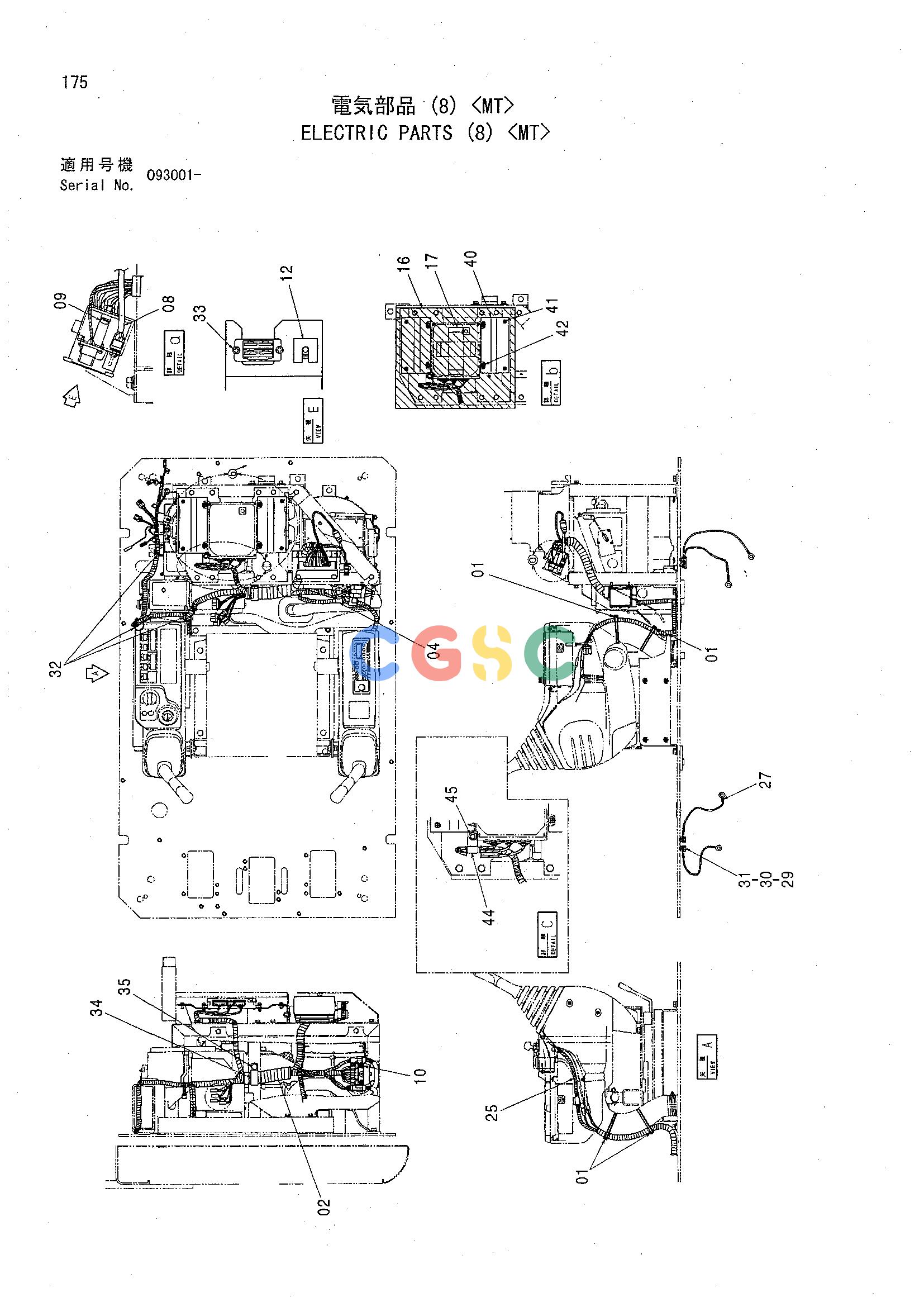

日立零件查询（CHR70）ELECTRIC PARTS (8) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
916 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4121859 | [4] | CLIP;BAND | |
| 02. | 0003825 | [1] | HARNESS;WIRE | |
| 02A. | 4349781 | [1] | BOX;FUSE | |
| 02B. | 4374940 | [1] | COVER | |
| 02C. | 4195593 | [9] | FUSE (5A) | |
| 02D. | 4195594 | [8] | FUSE (10A) | |
| 02E. | 4195596 | [2] | FUSE (20A) | |
| 02F. | 4195593 | [2] | FUSE (5A,SPARE) | |
| 02G. | 4195594 | [1] | FUSE (10A,SPARE) | |
| 02H. | 4195595 | [1] | FUSE (20A,SPARE) | |
| 04. | 4190275 | [1] | CLIP | |
| 08. | 4359384 | [1] | SWITCH | |
| 09. | J450620 | [2] | SCREW;SEMS | |
| 10. | J460620 | [2] | SCREW;SEMS | |
| 12. | 4367375 | [1] | BRACKET | |
| 16. | 3075379 | [1] | COVER | |
| 17. | 4365396 | [4] | TAPE | |
| 25. | 4277927 | [1] | HARNESS;WIRE | |
| 27. | 4281293 | [4] | HARNESS;WIRE | |
| 29. | J901016 | [4] | BOLT | |
| 30. | A590910 | [4] | WASHER;SPRING | |
| 31. | A590110 | [4] | WASHER;PLANE | |
| 32. | 4055312 | [3] | CLIP;BAND | |
| 33. | J460310 | [2] | SCREW;SEMS | |
| 34. | 4190265 | [1] | CLIP | |
| 35. | J021025 | [1] | BOLT;SEMS | |
| 35. | J271025 | [1] | BOLT;SEMS | TJ901025 |
| 35. | J271025 | [1] | BOLT;SEMS | TJ222010 |
| 40. | 9745785 | [2] | BRACKET | |
| 41. | J450616 | [4] | SCREW;SEMS | |
| 42. | J460625 | [4] | SCREW;SEMS | |
| 44. | 4289217 | [1] | CLIP;PIPE | |
| 45. | J020616 | [1] | BOLT;SEMS | |
| 45. | J260616 | [1] | BOLT;SEMS | TJ900616 |
| 45. | J260616 | [1] | BOLT;SEMS | TA590106 |
