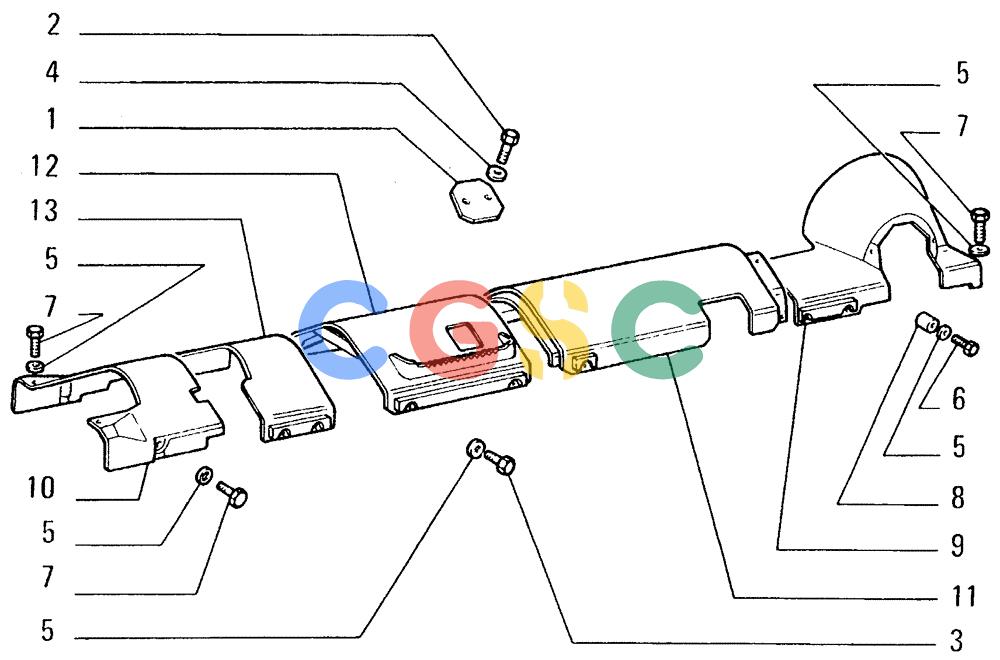

纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3465[001]) - TRACK GUARDS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
617 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 591246 | [2] | BRACKET | GICOVER Superseded by part number: 75128819, 75128819, 80591246 |
| 2. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LECBOLT, Hex, M10 x 20, 10.9, Full Thd |
| 3. | 11112431 | [26] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 4. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 5. | 12648531 | [40] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 6. | 15541131 | [4] | SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9 | JES12x1,25x65 |
| 7. | 15540331 | [10] | BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 15540321 |
| 8. | 79009345 | [4] | SPACER,12.2mm ID x 28mm OD x 40mm L | LEC |
| 9. | 79020454 | [1] | GUARD | LEC- LEFT Superseded by part number: 76035676 |
| 9. | 79020458 | [1] | GUARD | LEC- RIGHT Superseded by part number: 76035677 |
| 10. | 79090155 | [1] | GUARD | LEC- LEFT |
| 10. | 79090156 | [1] | GUARD | LEC- RIGHT |
| 11. | 79089936 | [1] | GUARD | LEC- REAR LEFT |
| 11. | 79089940 | [1] | GUARD | LEC- REAR RIGHT |
| 12. | 79089931 | [1] | GUARD | LEC- FRONT LEFT |
| 12. | 79089934 | [1] | GUARD | LEC- FRONT RIGHT |
| 13. | 79089947 | [1] | GUARD | LEC- LEFT |
| 13. | 79089950 | [1] | GUARD | LEC- RIGHT |
