纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3470[001]) - TRACK CHAIN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
691 次

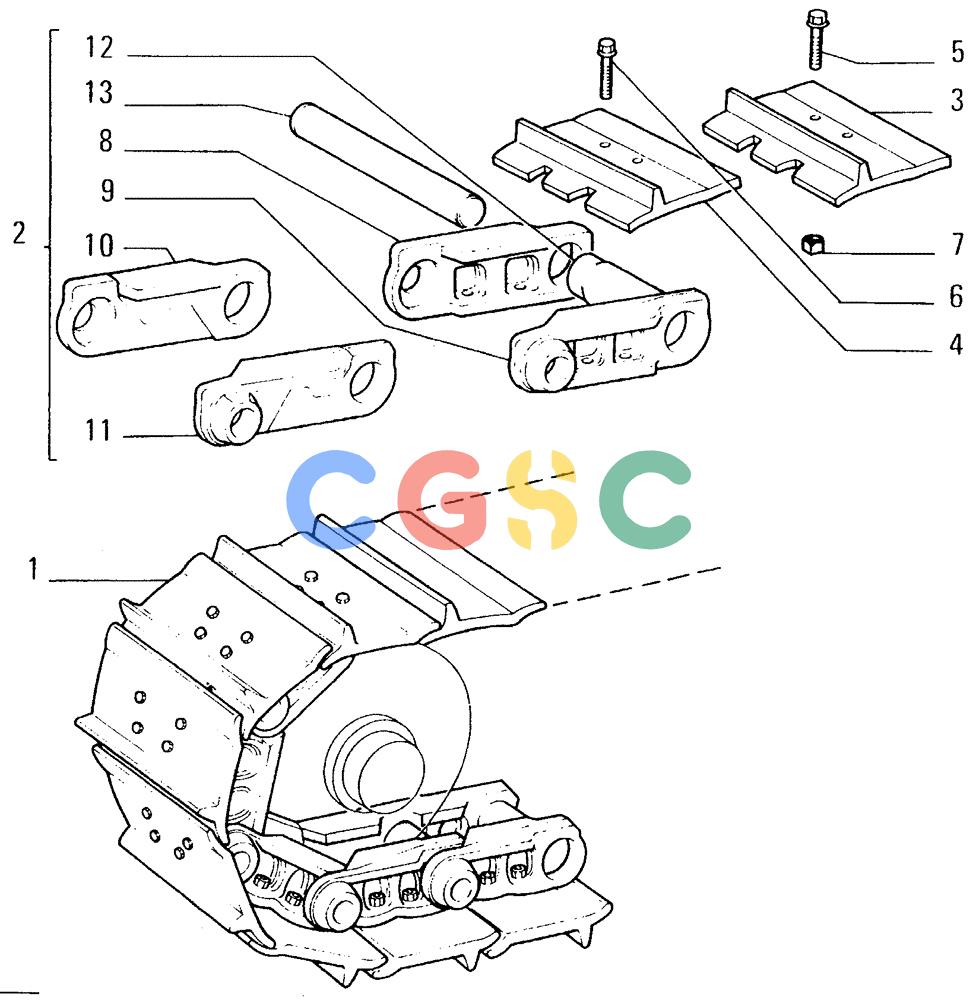

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79073926 | [2] | TRACK ASSY | LECTRACK CHAIN - ASSEMBLY Superseded by part number: 79035817, 79035818, 79035814, 79035917, 79035815 |
| 2. | 76013572 | [1] | TRACK ASSY | LECCHAIN - ASSEMBLY Superseded by part number: 79035917 |
| 2. | 79035917 | [1] | TRACK ASSY | LECCHAIN - ASSEMBLY Superseded by part number: 76027939 |
| 3. | 79035817 | [40] | TRACK SHOE | LECSHOES (1 GROUSER) Superseded by part number: 79109499 |
| 4. | 79035818 | [1] | TRACK SHOE | LECSHOES (1 GROUSER) Superseded by part number: 79109500 |
| 5. | 79035814 | [160] | SCREW | LEC Superseded by part number: 71401179 |
| 6. | 79035815 | [4] | BOLT,Flng, M20 x 1.5 x 101mm, Cl 12.9 | LEC |
| 7. | 79035816 | [160] | NUT | LEC Superseded by part number: 76030024 |
| 8. | 79035435 | [40] | TRACK LINK | LECLINK - RIGHT Superseded by part number: 79082230 |
| 9. | 79035436 | [40] | TRACK LINK | LECLINK - LEFT Superseded by part number: 79082231 |
| 10. | 79035809 | [1] | CONNECTING LINK | LECTRACK LINK - RIGHT Superseded by part number: 79082232 |
| 10. | 79064021 | [1] | CONNECTING LINK | LECTRACK LINK - RIGHT Superseded by part number: 79082232 |
| 11. | 79035810 | [1] | CONNECTING LINK | LECTRACK LINK - LEFT Superseded by part number: 79064022 |
| 11. | 79064022 | [1] | CONNECTING LINK | LECTRACK LINK - LEFT Superseded by part number: 79082233 |
| 12. | 79035811 | [41] | BUSHING | LEC |
| 13. | 79039325 | [41] | PIN,40.08mm OD x 220mm L | LEC |
