神钢零件查询(F4HFE613D B006) - ENGINE 5801925168 47748447 TC 5.90 TIER 4B & TC5.90 hillside TIER 4B (1/12-) (10.106.AA) - CAMSHAFT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
766 次

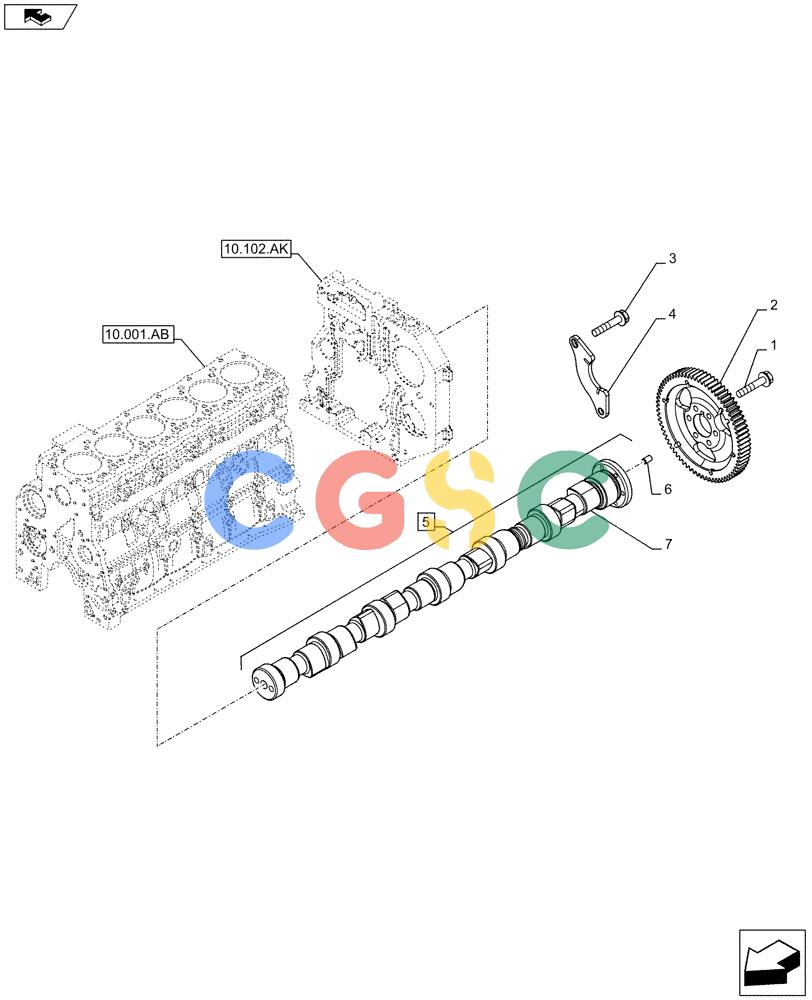

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [6] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4896380 | [1] | DRIVEN GEAR | TOR |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 4. | 4897457 | [1] | SUPPORT | TOR |
| 5. | 84342155 | [1] | CAMSHAFT | BRRASSY, Incl 6, 7 Superseded by part number: 504345138 |
| 5. | 504345138 | [1] | CAMSHAFT | TOR |
| 6. | 4899080 | [1] | DOWEL,M6 x 8 L | TOR |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCamshaft, Incl in 5 |
