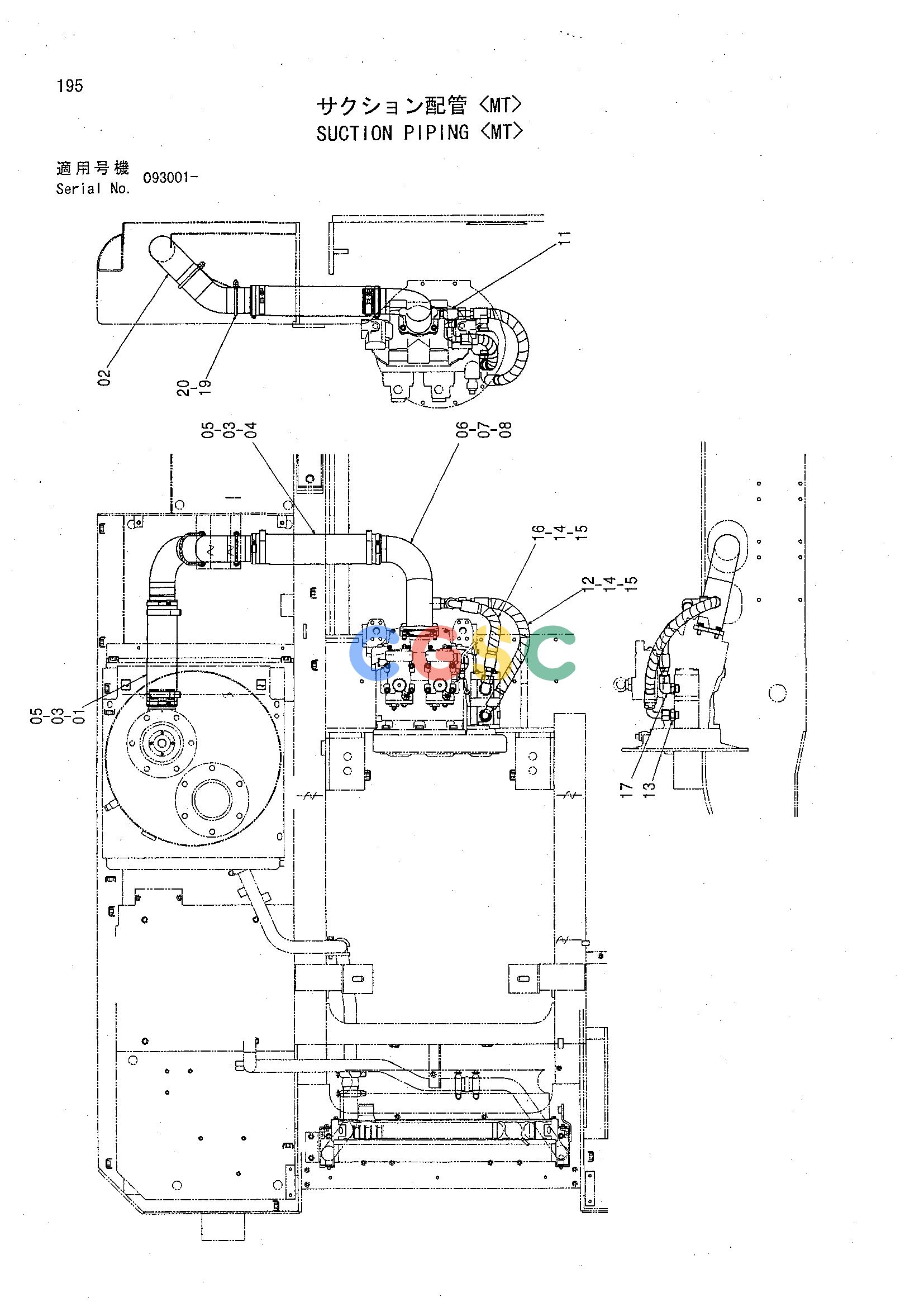

日立零件查询（CHR70）SUCTION PIPING <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4411556 | [1] | HOSE;RUBBER | |
| 02. | 8080533 | [1] | PIPE;SUCTION | |
| 03. | 4507397 | [4] | CLAMP;HOSE | |
| 04. | 4411559 | [1] | HOSE;RUBBER | |
| 05. | 4283535 | [4] | CLAMP;HOSE | |
| 06. | 8080532 | [1] | MANIFOLD;SUC. | |
| 07. | A811085 | [1] | O-RING | |
| 08. | J781228 | [4] | BOLT;SOCKET | IJ781230 |
| 08. | J781230 | [4] | BOLT;SOCKET | |
| 11. | 4218070 | [1] | TEE;S | |
| 11A. | 4506424 | [1] | O-RING | |
| 12. | 4329588 | [1] | HOSE | |
| 13. | 4189619 | [1] | ADAPTER;S | |
| 13A. | 4506424 | [1] | O-RING | |
| 14. | 4187308 | [4] | O-RING | |
| 15. | 4327294 | [2] | PROTECTOR | |
| 16. | 4320234 | [1] | HOSE | |
| 17. | 4157562 | [1] | ELBOW;S | |
| 17A. | 4506424 | [1] | O-RING | |
| 19. | 4410976 | [2] | BOLT;U | |
| 20. | J950010 | [8] | NUT | |
