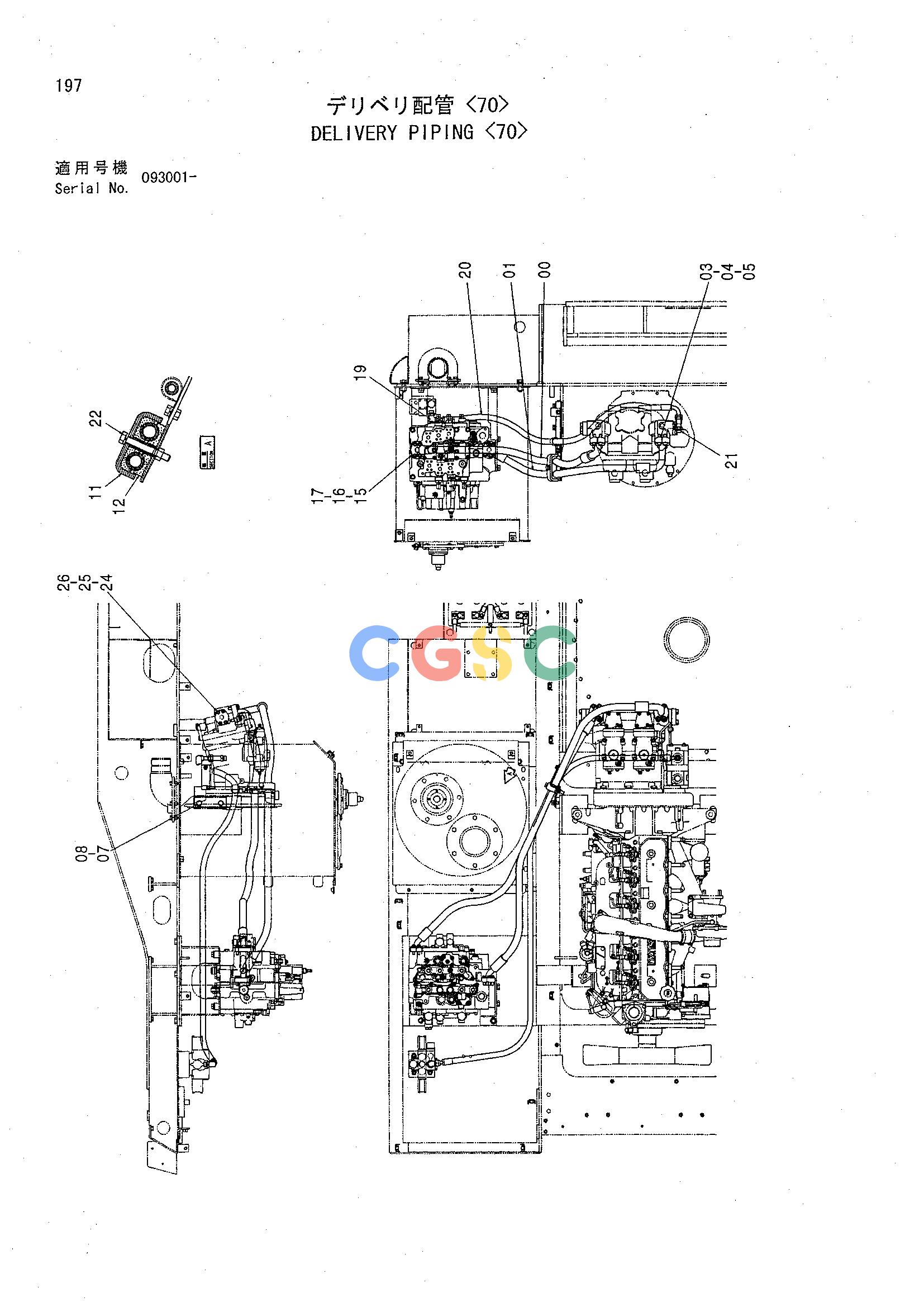

日立零件查询（CHR70）DELIVERY PIPING <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4425115 | [1] | HOSE (F) | |
| 01. | 4425117 | [1] | HOSE (R) | |
| 03. | 4085560 | [4] | FLANGE;SPLIT | |
| 04. | 966993 | [2] | O-RING | |
| 05. | J781240 | [8] | BOLT;SOCKET | |
| 07. | 7039889 | [1] | BRACKET | |
| 08. | J021225 | [2] | BOLT;SEMS | |
| 08. | J271225 | [2] | BOLT;SEMS | TJ901225 |
| 08. | J271225 | [2] | BOLT;SEMS | TJ222012 |
| 11. | 8061722 | [1] | CLAMP | |
| 12. | 3072291 | [1] | RUBBER | |
| 15. | 4506459 | [4] | FLANGE;SPLIT | |
| 16. | 971489 | [2] | O-RING | |
| 17. | J781035 | [8] | BOLT;SOCKET | |
| 19. | 4200580 | [1] | ELBOW;S | |
| 19A. | 4506418 | [1] | O-RING | |
| 20. | 4215605 | [1] | HOSE | |
| 21. | 4199247 | [1] | ADAPTER;S | |
| 21A. | 4506418 | [1] | O-RING | |
| 22. | J011290 | [1] | BOLT;SEMS | |
| 22. | J271290 | [1] | BOLT;SEMS | TJ901290 |
| 22. | J271290 | [1] | BOLT;SEMS | TJ222012 |
| 24. | 4372802 | [2] | COVER | |
| 25. | J781035 | [8] | BOLT;SOCKET | |
| 26. | 971489 | [2] | O-RING | |
