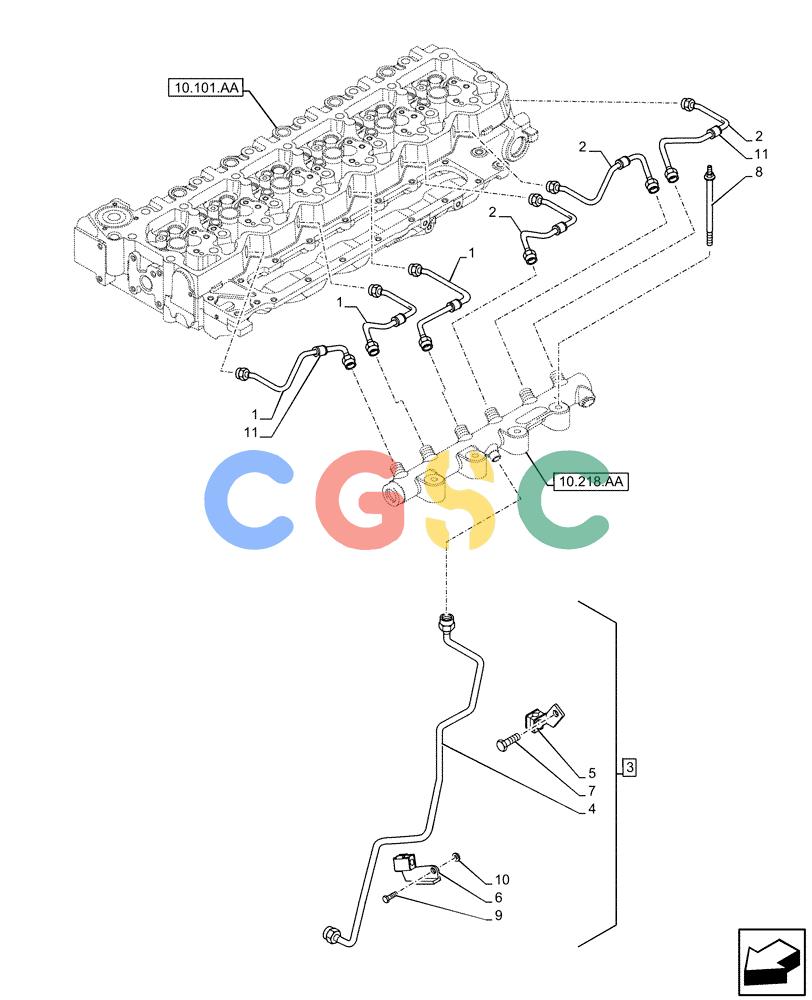

神钢零件查询(F4HFE613D B006) - ENGINE 5801925168 47748447 TC 5.90 TIER 4B & TC5.90 hillside TIER 4B (1/12-) (10.218.AI[01]) - INJECTION PIPE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2857017 | [3] | PIPE | TOR Superseded by part number: |
| 1. | 504323116 | [3] | HOSE | HOSE |
| 2. | 2857046 | [3] | PIPE | TOR Superseded by part number: |
| 2. | 504323096 | [3] | HOSE | HOSE |
| 3. | 2857049 | [1] | FUEL TUBE,178.6, 86.1 mm Length | TOR |
| 3. | 504323112 | [1] | LINE | LINE |
| 5. | 2854556 | [2] | CLAMP BRACKET | TOR |
| 5. | 2854558 | [2] | RUBBER SEAL | TOR |
| 6. | 2854557 | [2] | CLAMP BRACKET | TOR |
| 7. | 2854559 | [2] | SCREW | TOR Superseded by part number: |
| 7. | 16673635 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TOR |
| 8. | 2853537 | [4] | BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm | TOR Superseded by part number: 504053874 |
| 8. | 504053874 | [4] | BOLT | TOR Superseded by part number: 2853537 |
| 9. | 4899020 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 9. | 4896884 | [1] | BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9 | TOR |
| 10. | 13605711 | [1] | SPACER | JESIncl in 3 |
| 11. | 2854548 | [1] | SILENTBLOC | TORIsolator Vibration |
