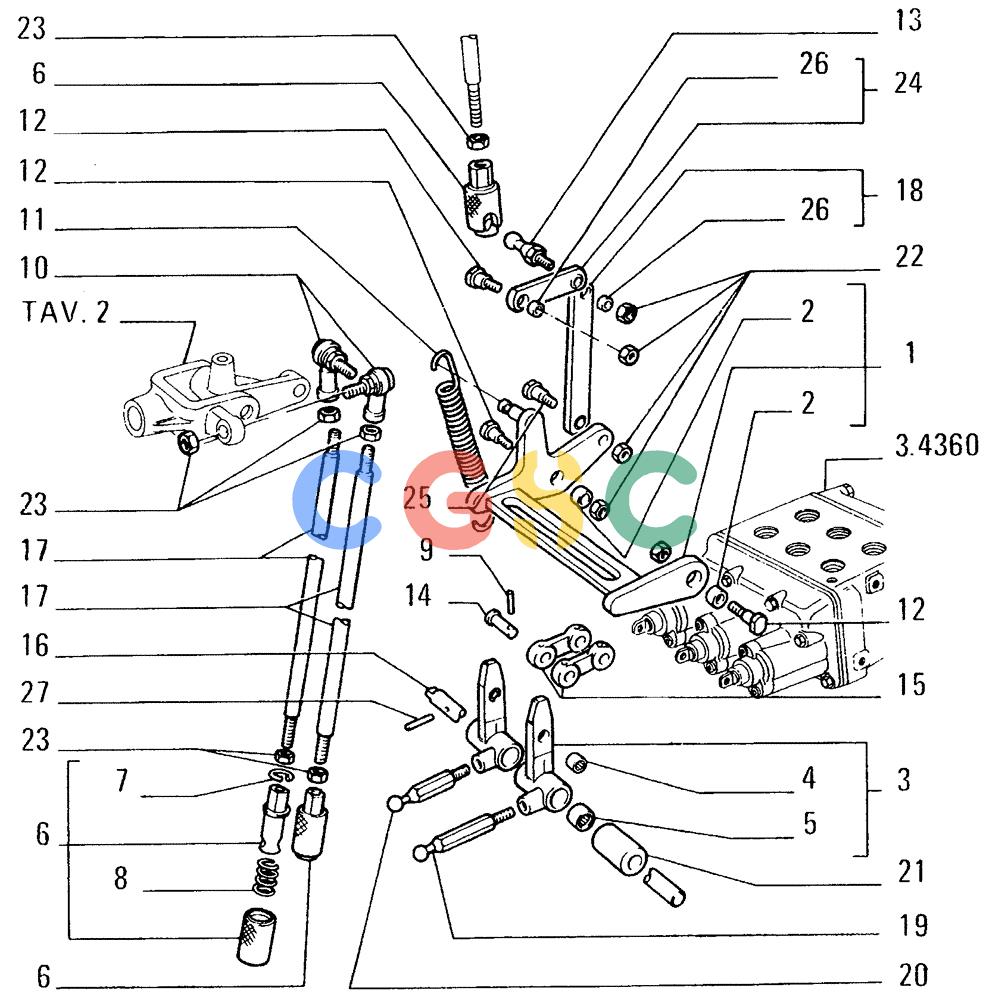

纽荷兰零件查询(FD14E) - CRAWLER DOZER (34370[001]) - CONTROL VALVE LINKAGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083251 | [1] | LEVER | LECCONTROLS LOCKING |
| 2. | 79083246 | [2] | BUSHING | LEC |
| 3. | 79092807 | [2] | LEVER | LEC |
| 4. | 79005596 | [1] | BUSHING,12mm ID x 14mm OD x 10mm L | LEC |
| 5. | 79084568 | [2] | BEARING ASSY,Needle, 16mm ID x 22mm OD x 14mm W | LECBUSHING |
| 6. | 79083370 | [3] | QUICK MALE COUPLING | LECQUICK-CONNECTING COUPLING ASSEMBLY |
| 7. | 13420776 | [1] | RING | LECSNAP RING |
| 8. | 79086837 | [1] | SPRING | LEC |
| 9. | 14161970 | [4] | LOCK PIN,M3 x 20, Slotted | LECSPRING PIN 3,3x20 Superseded by part number: 80300865 |
| 10. | 79092808 | [2] | ARTICULATION | LEC |
| 11. | 4971059 | [1] | SPRING | MOD |
| 12. | 79083292 | [3] | SCREW,M6 x 1.25 x 1.25mm | LEC |
| 13. | 79085011 | [1] | TRACK ROD END ASSY | LECEND |
| 14. | 79092805 | [4] | PIN | LEC |
| 15. | 79092804 | [4] | PLATE | LEC |
| 16. | 79078059 | [1] | PIN | LEC |
| 17. | 79083941 | [2] | SHAFT | LECTIEROO |
| 18. | 79085009 | [1] | LINK CONROD | LECLINK ROD - ASSEMBLY |
| 19. | 79086799 | [1] | ARTICULATION | LEC |
| 20. | 79086798 | [1] | ARTICULATION | LEC |
| 21. | 79084606 | [1] | SPACER | LEC |
| 22. | 16100821 | [5] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 23. | 11701721 | [7] | NUT,M10, Cl 10 | LEC10x1,5x8 Superseded by part number: 17038131 |
| 24. | 79086185 | [1] | LINK CONROD | LECLINK ROD - ASSEMBLY |
| 25. | 79086186 | [1] | SCREW,M8 x 1.25 x 1.25mm | LEC |
| 27. | 14164370 | [1] | LOCK PIN,M4 x 30, Slotted | FORSPRING PIN 4,4x30 |
