纽荷兰零件查询(FD14E) - CRAWLER DOZER (3.4610[001]) - MAIN FRAME (May 8 2007 12:53:00.1451 PM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
148 次

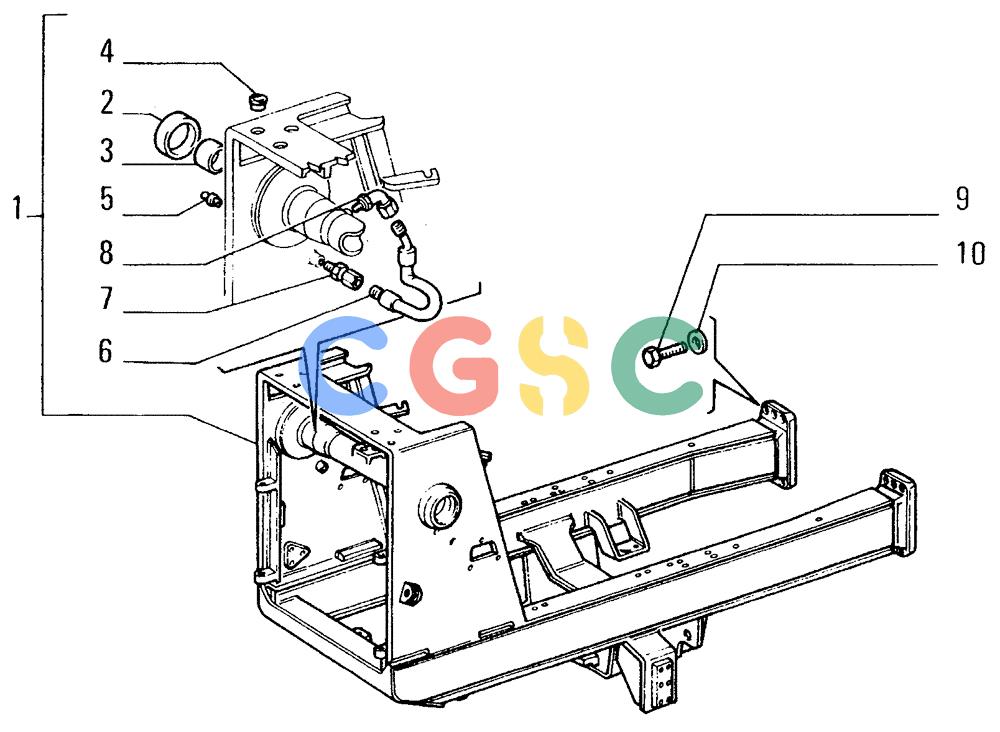

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79087946 | [1] | FRAME | LECMAIN FRAME - ASSEMBLY |
| 2. | 79087774 | [2] | BUSHING | LEC |
| 3. | 8292010 | [2] | BUSHING,76.2mm ID x 85mm OD x 50mm L | LEC |
| 4. | 4974163 | [6] | PLUG | LEC |
| 5. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 6. | 79092149 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 7. | 79066934 | [2] | HYD CONNECTOR | BHBFITTING |
| 8. | 79067014 | [2] | HYD CONNECTOR | LECFITTING |
| 9. | 15997534 | [12] | SCREW,Hex, M24 x 2 x 90mm, Cl 10.9 | LEC24x2x90 Superseded by part number: 15997537 |
| 10. | 76002741 | [12] | WASHER | LEC Superseded by part number: 79009899 |
