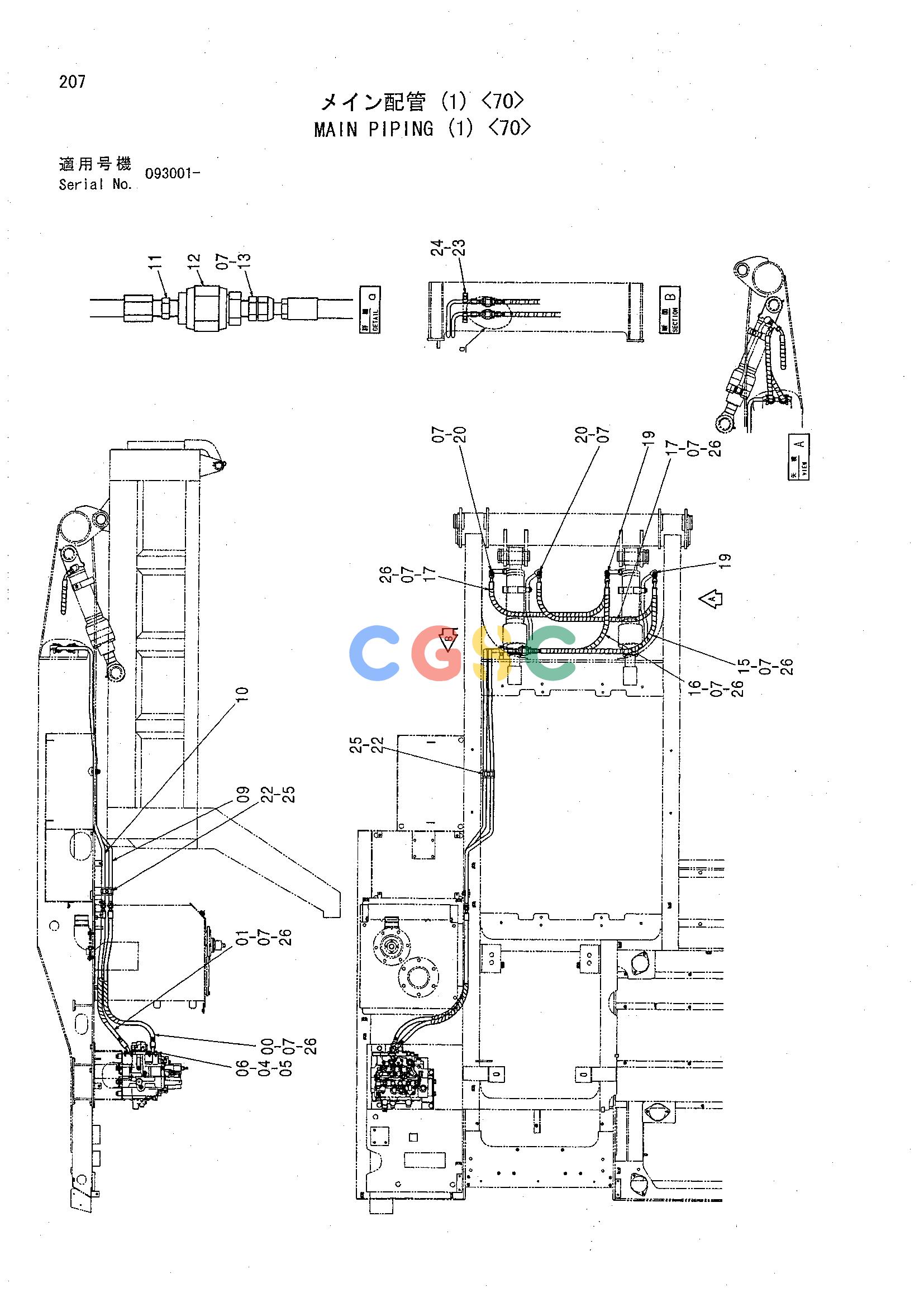

日立零件查询（CHR70）MAIN PIPING (1) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
635 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4412697 | [1] | HOSE | |
| 01. | 4412696 | [1] | HOSE | |
| 04. | 4510173 | [4] | FLANGE;SPLIT | |
| 05. | J780825 | [8] | BOLT;SOCKET | |
| 06. | 4510167 | [2] | O-RING | |
| 07. | 4138938 | [10] | O-RING | |
| 09. | 8074829 | [1] | PIPE | |
| 10. | 8074830 | [1] | PIPE | |
| 11. | 94-1703 | [2] | ADAPTER;S | |
| 12. | 4146466 | [2] | VALVE;SLOWRETUR | |
| 13. | 4210942 | [2] | ADAPTER;S | |
| 15. | 4311068 | [1] | HOSE | |
| 16. | 4327466 | [1] | HOSE | |
| 17. | 4438979 | [2] | HOSE | |
| 19. | 4205383 | [2] | TEE;S | |
| 19A. | 4506418 | [1] | O-RING | |
| 20. | 4189602 | [2] | ADAPTER;S | |
| 20A. | 4506418 | [1] | O-RING | |
| 22. | 4189858 | [2] | CLAMP;PIPE | |
| 23. | 4190125 | [2] | CLAMP;PIPE | |
| 24. | J011255 | [2] | BOLT;SEMS | |
| 24. | J271255 | [2] | BOLT;SEMS | TJ901255 |
| 24. | J271255 | [2] | BOLT;SEMS | TJ222012 |
| 25. | J011245 | [2] | BOLT;SEMS | |
| 25. | J271245 | [2] | BOLT;SEMS | TJ901245 |
| 25. | J271245 | [2] | BOLT;SEMS | TJ222012 |
| 26. | 4327294 | [15] | PROTECTOR | |
