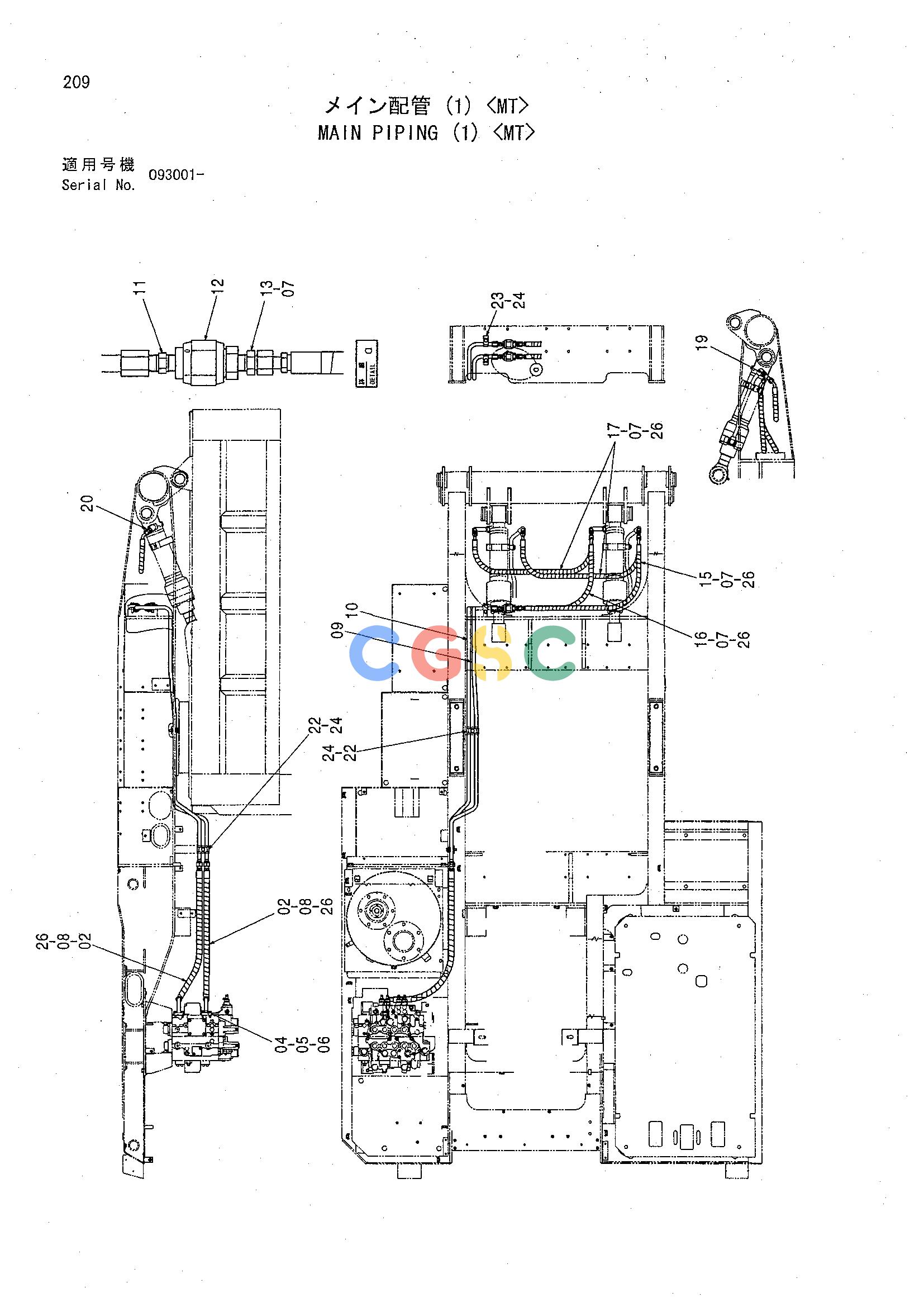

日立零件查询（CHR70）MAIN PIPING (1) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
713 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4481168 | [1] | HOSE | |
| 04. | 986910 | [4] | FLANGE;SPLIT | |
| 05. | J781030 | [8] | BOLT;SOCKET | |
| 06. | 971489 | [2] | O-RING | |
| 07. | 4138938 | [8] | O-RING | |
| 08. | 4187308 | [2] | O-RING | |
| 09. | 8080296 | [1] | PIPE | |
| 10. | 8080297 | [1] | PIPE | |
| 11. | 94-1703 | [2] | ADAPTER;S | |
| 12. | 4146466 | [2] | VALVE;SLOWRETUR | |
| 13. | 4210942 | [2] | ADAPTER;S | |
| 15. | 4311068 | [1] | HOSE | |
| 16. | 4327466 | [1] | HOSE | |
| 17. | 4438979 | [2] | HOSE | |
| 19. | 4205383 | [2] | TEE;S | |
| 19A. | 4506418 | [1] | O-RING | |
| 20. | 4189602 | [2] | ADAPTER;S | |
| 20A. | 4506418 | [1] | O-RING | |
| 22. | 4189858 | [2] | CLAMP;PIPE | |
| 23. | 4190125 | [2] | CLAMP;PIPE | |
| 24. | J011255 | [4] | BOLT;SEMS | |
| 24. | J271255 | [4] | BOLT;SEMS | TJ901255 |
| 24. | J271255 | [4] | BOLT;SEMS | TJ222012 |
| 26. | 4327294 | [15] | PROTECTOR | |
