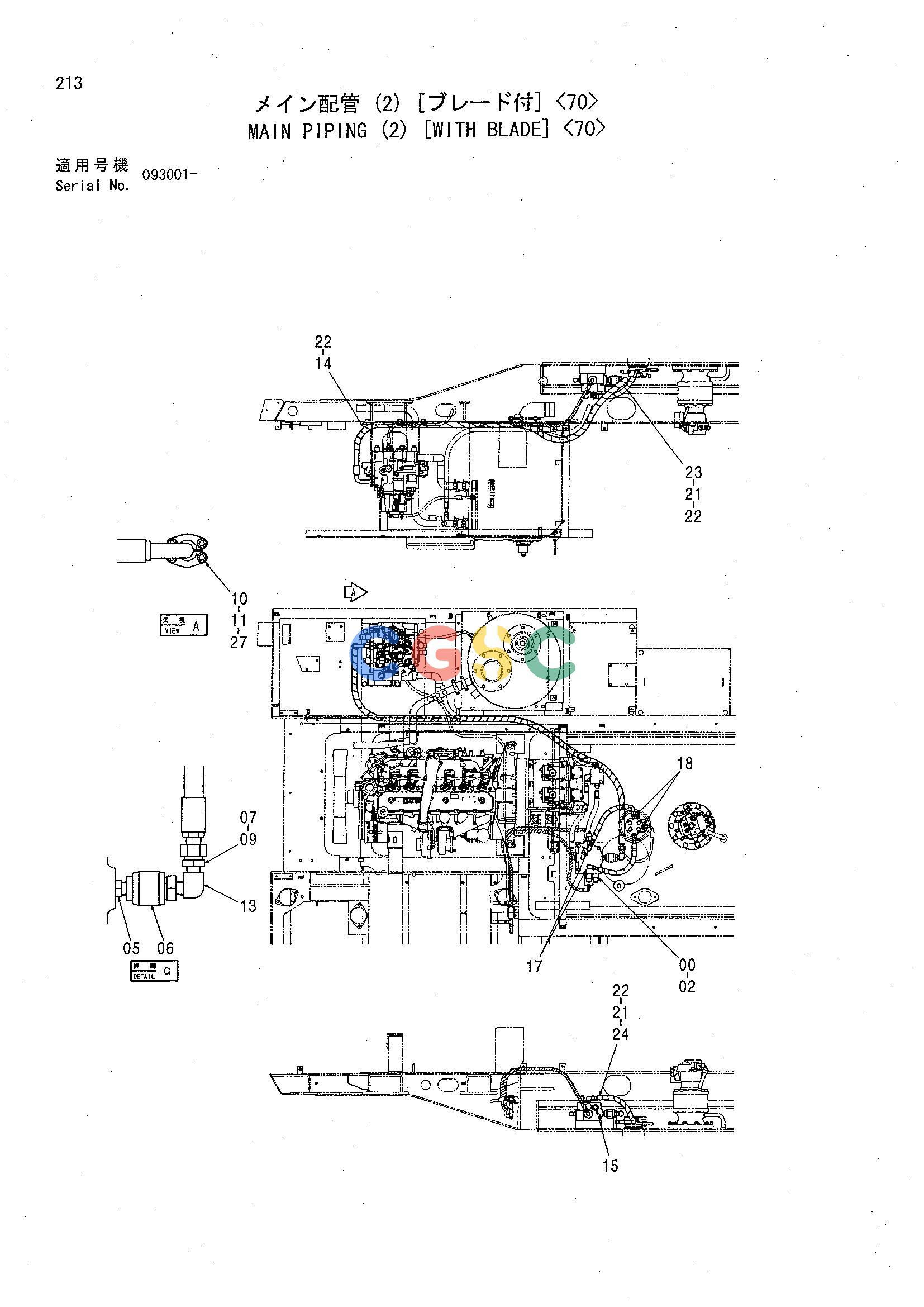

日立零件查询（CHR70）MAIN PIPING (2) [WITH BLADE] <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4361117 | [1] | VALVE;CONTROL | |
| 02. | J011090 | [3] | BOLT;SEMS | |
| 02. | J271090 | [3] | BOLT;SEMS | TJ901090 |
| 02. | J271090 | [3] | BOLT;SEMS | TJ222010 |
| 05. | 4217207 | [1] | ADAPTER;S | |
| 05A. | 4506418 | [1] | O-RING | |
| 06. | 4221984 | [1] | VALVE;SLOWRETUR | |
| 07. | 4217134 | [1] | ADAPTER;S | |
| 09. | 4187308 | [1] | O-RING | |
| 10. | 971489 | [1] | O-RING | |
| 11. | 986910 | [2] | FLANGE;SPLIT | |
| 13. | 94-0632 | [1] | ELBOW;S | |
| 14. | 4473558 | [1] | HOSE | |
| 15. | 4092534 | [1] | PLUG | |
| 15A. | 4509180 | [1] | O-RING | |
| 17. | 4200580 | [2] | ELBOW;S | |
| 17A. | 4506418 | [1] | O-RING | |
| 18. | 4189602 | [2] | ADAPTER;S | |
| 18A. | 4506418 | [1] | O-RING | |
| 21. | 4138938 | [4] | O-RING | |
| 22. | 4044420 | [7] | PROTECTOR | |
| 23. | 4359143 | [1] | HOSE | |
| 24. | 4285795 | [1] | HOSE | |
| 27. | J781030 | [4] | BOLT;SOCKET | |
