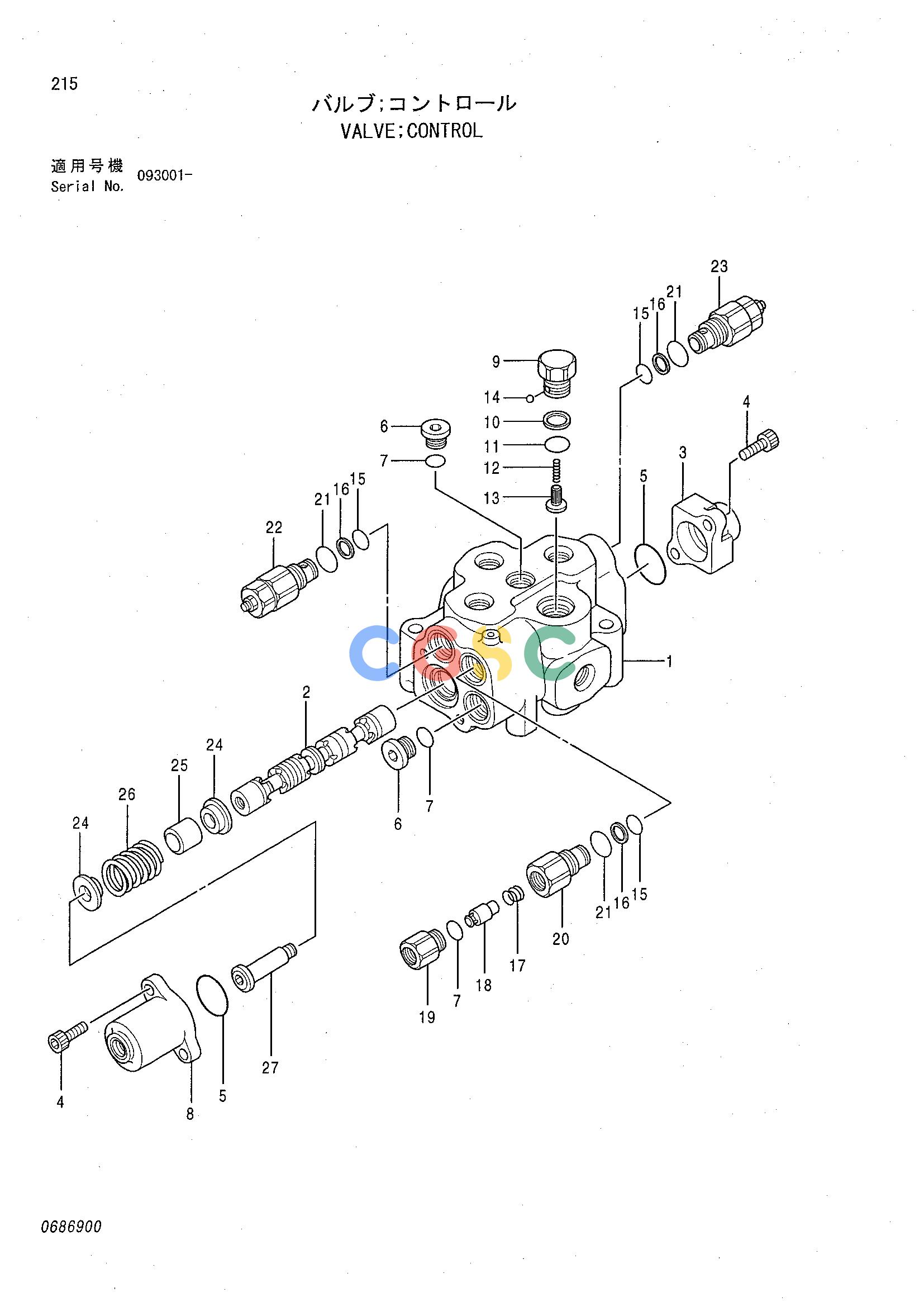

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4361117 | [1] | VALVE;CONTROL | 0686900
|
| 1. | +++++++ | [1] | HOUSING | |
| 2. | +++++++ | [1] | PLUNGER | |
| 3. | 0686901 | [1] | COVER | |
| 4. | 0135401 | [4] | BOLT | |
| 5. | 0686902 | [2] | O-RING | |
| 6. | 0622822 | [2] | CAP | |
| 7. | 4506418 | [2] | O-RING | |
| 8. | 0686903 | [1] | COVER | |
| 9. | 0686904 | [1] | CAP | |
| 10. | 0686905 | [1] | RING;BACK-UP | |
| 11. | 4028265 | [1] | O-RING | |
| 12. | 0159206 | [1] | SPRING | |
| 13. | 0686906 | [1] | CHECK | |
| 14. | 0189803 | [1] | CHIP | |
| 15. | 4506416 | [3] | O-RING | |
| 16. | 4085607 | [3] | RING;BACK-UP | |
| 17. | 0686907 | [1] | SPRING | |
| 18. | 0686908 | [1] | CHECK | |
| 19. | 0686909 | [1] | SEAT | |
| 20. | 0686910 | [1] | SLEEVE | |
| 21. | 0101234 | [3] | O-RING | |
| 22. | 0686911 | [1] | VALVE;RELIEF | |
| 23. | 0686912 | [1] | VALVE;RELIEF | |
| 24. | 0686913 | [2] | GUIDE | |
| 25. | 0686914 | [1] | SPACER | |
| 26. | 0686915 | [1] | SPRING | |
| 27. | 0686916 | [1] | CAP | |
