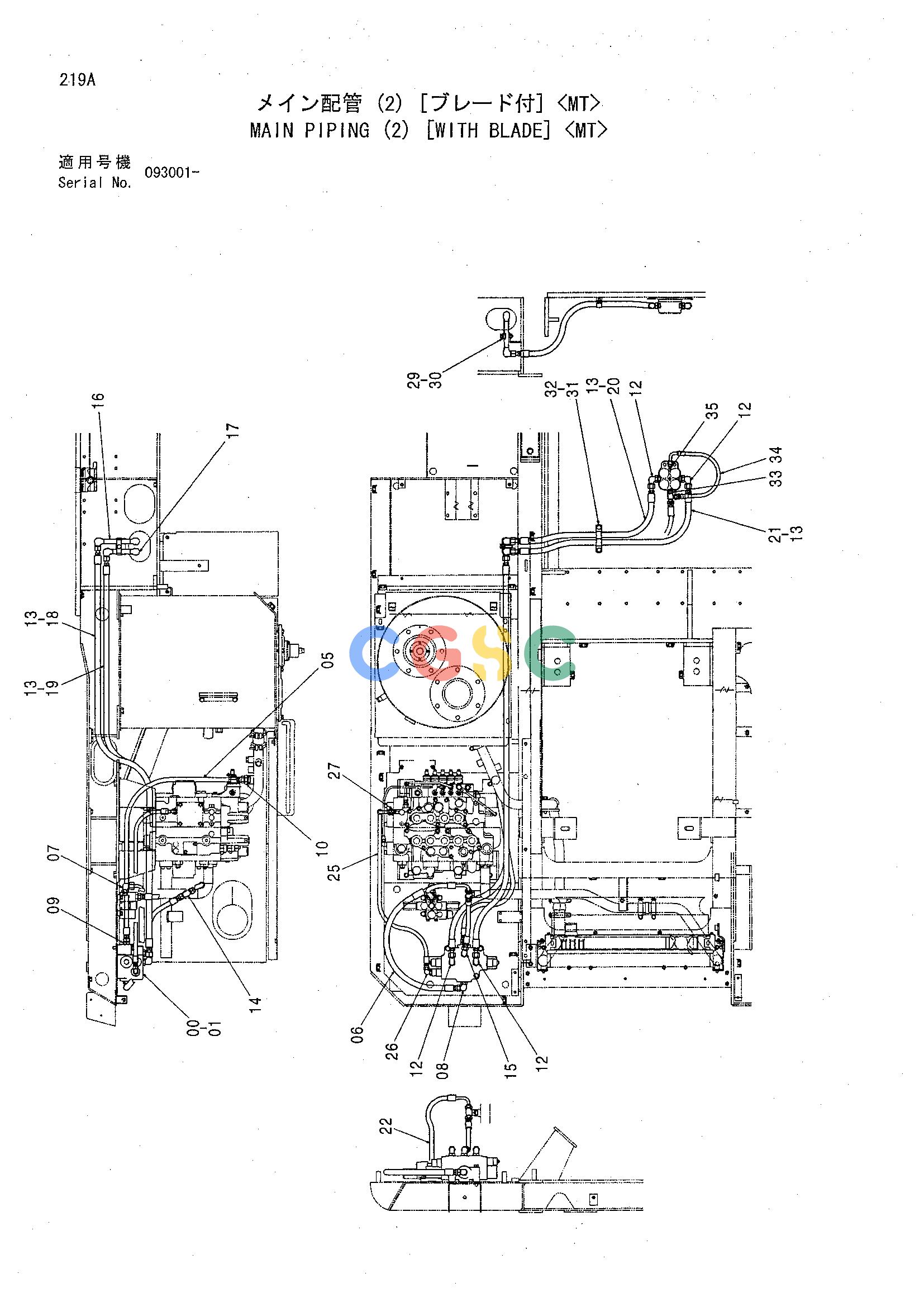

日立零件查询（CHR70）MAIN PIPING (2) [WITH BLADE] <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4361117 | [1] | VALVE;CONTROL | |
| 01. | J011290 | [3] | BOLT;SEMS | |
| 01. | J271290 | [3] | BOLT;SEMS | TJ901290 |
| 01. | J271290 | [3] | BOLT;SEMS | TJ222012 |
| 05. | 4374109 | [1] | HOSE (9-1) | |
| 06. | 4300363 | [1] | HOSE (P1) | |
| 07. | 4154672 | [1] | ELBOW;S | |
| 07A. | 4506418 | [1] | O-RING | |
| 08. | 4154672 | [1] | ELBOW;S | |
| 08A. | 4506418 | [1] | O-RING | |
| 09. | 4210361 | [1] | ADAPTER;S | |
| 09A. | 4506418 | [1] | O-RING | |
| 10. | 4279302 | [1] | ADAPTER;S | |
| 10A. | 4506424 | [1] | O-RING | |
| 12. | 4200580 | [4] | ELBOW;S | |
| 12A. | 4506418 | [1] | O-RING | |
| 13. | 4138938 | [8] | O-RING | |
| 14. | 4221224 | [1] | TEE;S | |
| 14A. | 4506418 | [1] | O-RING | |
| 15. | 4154672 | [1] | ELBOW;S | |
| 15A. | 4506418 | [1] | O-RING | |
| 16. | 9754909 | [1] | PIPE | |
| 17. | 9754910 | [1] | PIPE | |
| 18. | 4285812 | [1] | HOSE | |
| 19. | 4250080 | [1] | HOSE | |
| 20. | 4285803 | [1] | HOSE | |
| 21. | 4259444 | [1] | HOSE | |
| 22. | 4381923 | [1] | HOSE (10-2) | |
| 25. | 4311054 | [1] | HOSE | |
| 26. | 4154671 | [1] | ELBOW;S | |
| 26A. | 4509180 | [1] | O-RING | |
| 27. | 4376657 | [1] | ADAPTER;S | |
| 27A. | 4509180 | [1] | O-RING | |
| 29. | 4053593 | [1] | CLAMP;PIPE | |
| 30. | J011050 | [1] | BOLT;SEMS | |
| 30. | J271050 | [1] | BOLT;SEMS | TJ901050 |
| 30. | J271050 | [1] | BOLT;SEMS | TJ222010 |
| 31. | 4192035 | [2] | CLIP | |
| 32. | J011016 | [2] | BOLT;SEMS | |
| 32. | J271016 | [2] | BOLT;SEMS | TJ901016 |
| 32. | J271016 | [2] | BOLT;SEMS | TJ222010 |
| 33. | 4300565 | [1] | HOSE | |
| 34. | 4234371 | [1] | TEE;S | |
| 34A. | 4509180 | [1] | O-RING | |
| 35. | 4200467 | [1] | ADAPTER;S | |
| 35A. | 957366 | [1] | O-RING | |
| 37. | 4327294 | [18] | PROTECTOR | |
| 38. | 4327293 | [7] | PROTECTOR | |
