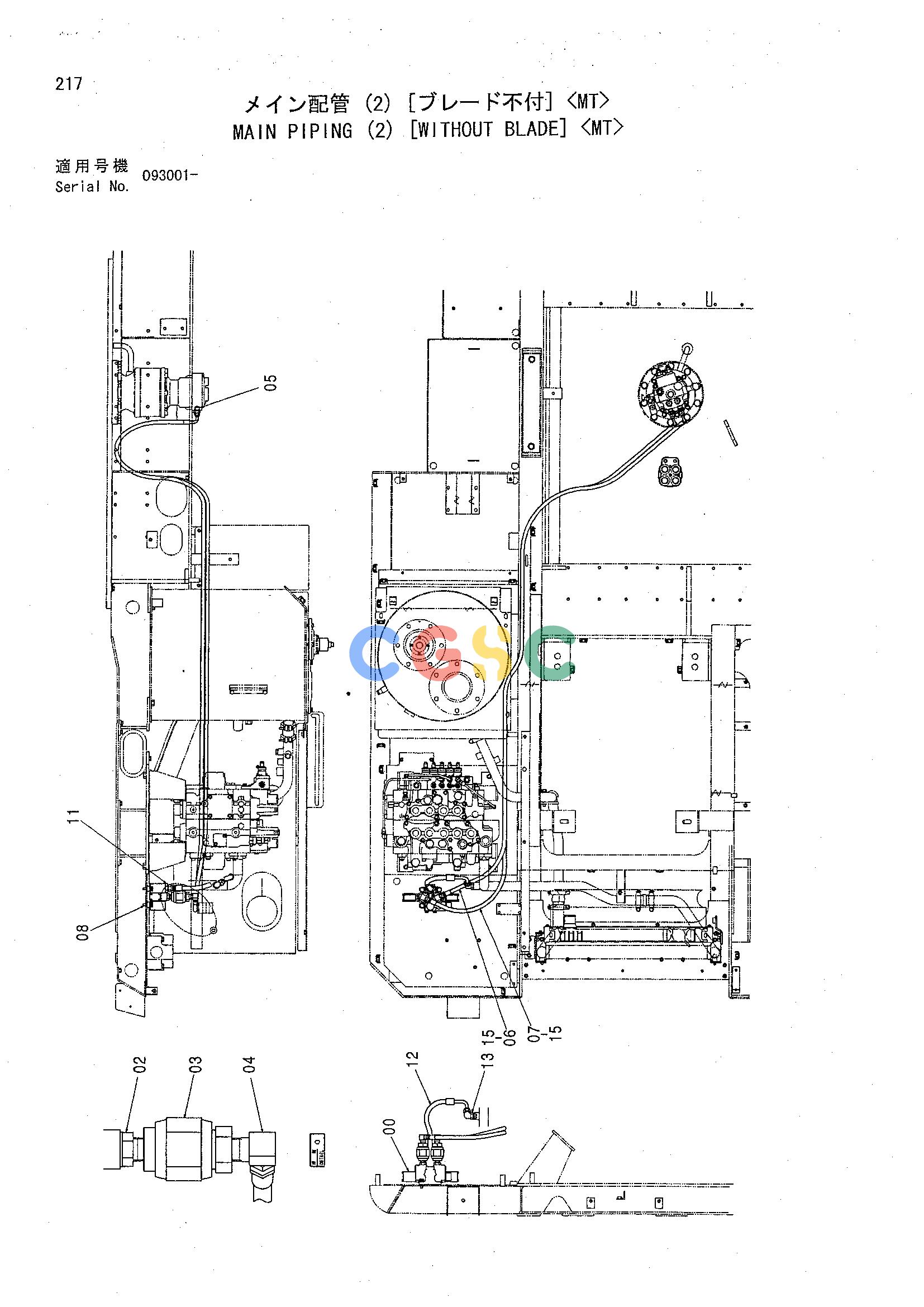

日立零件查询（CHR70）MAIN PIPING (2) [WITHOUT BLADE] <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
719 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4437508 | [1] | VALVE;CONTROL | |
| 02. | 4217207 | [2] | ADAPTER;S | |
| 02A. | 4506418 | [1] | O-RING | |
| 03. | 4146466 | [2] | VALVE;SLOWRETUR | |
| 04. | 4207744 | [2] | ELBOW;S | |
| 05. | 4200469 | [2] | ADAPTER;S | |
| 05A. | 4506418 | [1] | O-RING | |
| 06. | 4386515 | [1] | HOSE | |
| 07. | 4439128 | [1] | HOSE | |
| 08. | J021035 | [3] | BOLT;SEMS | |
| 08. | J271035 | [3] | BOLT;SEMS | TJ901035 |
| 08. | J271035 | [3] | BOLT;SEMS | TJ222010 |
| 11. | 4279302 | [1] | ADAPTER;S | |
| 11A. | 4506424 | [1] | O-RING | |
| 12. | 4217384 | [1] | HOSE | |
| 13. | 4154672 | [1] | ELBOW;S | |
| 13A. | 4506418 | [1] | O-RING | |
| 15. | 4327294 | [15] | PROTECTOR | |
