纽荷兰零件查询(FD14E) - CRAWLER DOZER (6.7120[002]) - ELECTRIC COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
301 次

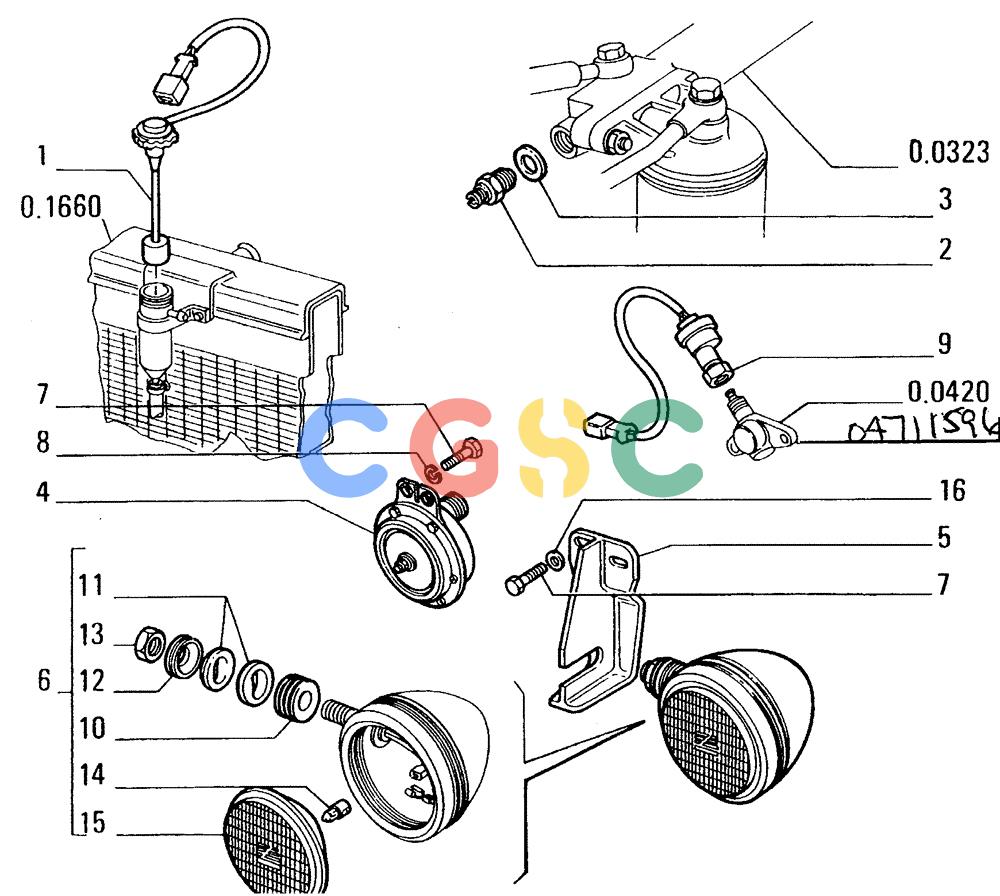

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79086201 | [1] | WARNING LIGHT | LECSENSOR |
| 2. | 79043247 | [1] | SWITCH | LEC Superseded by part number: 5116432 |
| 3. | 10279560 | [1] | SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk | TORWASHER, SEALING, , Copper M22.3 x 28 x 1 |
| 4. | 79070458 | [1] | HORN | LEC Superseded by part number: 12330587, 12330383, 12330144, 79114713 |
| 5. | 79086491 | [2] | BRACKET | LEC |
| 6. | 79073816 | [2] | HEADLAMP | LECFLOODLIGHT - ASSEMBLY Superseded by part number: 79073819 |
| 6. | 79094051 | [1] | HEADLAMP | LECFLOODLIGHT - RIGHT ASSEMBLY Superseded by part number: 79093993, 14151690 |
| 6. | 79097886 | [1] | HEADLAMP | LECFLOODLIGHT - LEFT ASSEMBLY Superseded by part number: 79097888 |
| 7. | 16043334 | [6] | BOLT,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043331 |
| 8. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 9. | 79089435 | [1] | SENDER UNIT | LECSENDING UNIT |
| 10. | 79073822 | [1] | SPACER | LEC |
| 11. | 79073823 | [2] | PAD | LECBLOCK |
| 12. | 79073824 | [1] | WASHER | LEC |
| 13. | 79073825 | [1] | NUT | LEC Superseded by part number: 10726711 |
| 14. | 79069460 | [1] | BULB | LECLAMP Superseded by part number: 14151690 |
| 15. | 79080111 | [1] | HEADLAMP LENS | LECREFLECTOR Superseded by part number: 79102125 |
| 16. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
