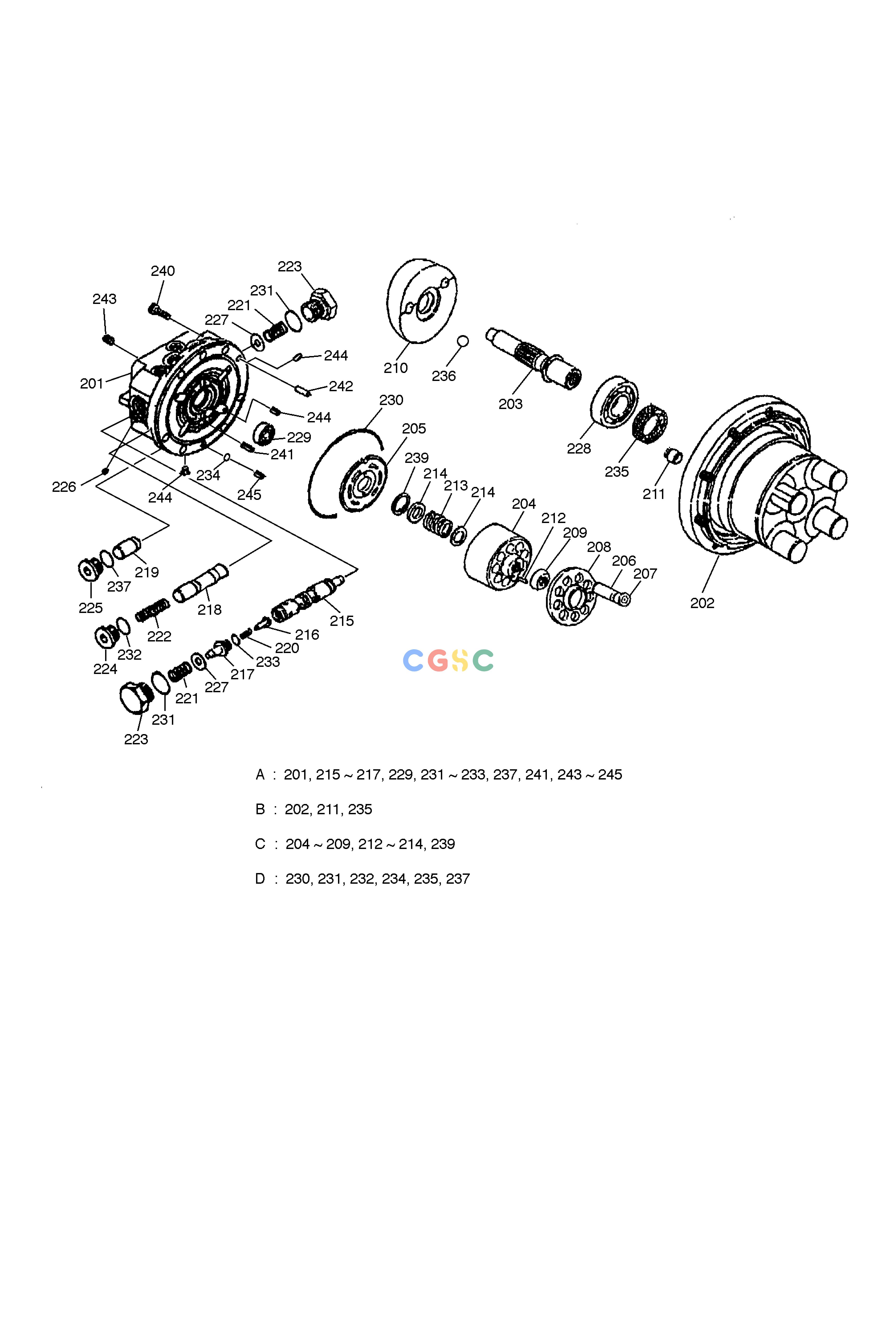

斗山零件查询TRAVEL MOTOR SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
PMV-1B-2414-MH2-45
|
[1] |
MOTOR
|
|
| 201. |
FZS-2448-01-SR
|
[1] |
BODY 1
|
|
| 202. |
FZD-4333-1-02
|
[1] |
BODY 2
|
|
| 203. |
FZD-4333-1-03
|
[1] |
SHAFT
|
|
| 204. |
FZS-2448-04
|
[1] |
CYLINDER;BARREL
|
|
| 205. |
FZS-2448-05
|
[1] |
PLATE;VALVE
|
|
| 206. |
FZS-2720-06-3-F
|
[9] |
PISTON
|
|
| 207. |
FZS-2720-07-3-F
|
[9] |
SHOE
|
|
| 208. |
FZS-2448-08
|
[1] |
HOLDER;SHOE
|
|
| 209. |
FZS-2610-09
|
[1] |
HOLDER;BARREL
|
|
| 210. |
FZD-4300-10-2414
|
[1] |
SWASH PLATE
|
|
| 211. |
FZD-4336-1-11
|
[1] |
CONTROL PISTON
|
|
| 212. |
FZS-2448-14
|
[3] |
PIN
|
|
| 213. |
PS30-101000
|
[1] |
SPRING C
|
|
| 214. |
PS29-101000
|
[2] |
RETAINER
|
|
| 215. |
FZS-2448-18-F
|
[1] |
SPOOL
|
|
| 216. |
FZS-2448-19
|
[2] |
VALVE;CHECK
|
|
| 217. |
FZS-2448-20-3
|
[2] |
SPRING GUIDE
|
|
| 218. |
FZS-2448-21
|
[1] |
SPOOL
|
|
| 219. |
FZS-2448-22
|
[1] |
SHUTTLE SPOOL
|
|
| 220. |
FZS-2448-23-05
|
[2] |
SPRING V1
|
|
| 221. |
FZS-2448-24-7
|
[2] |
SPRING V2
|
|
| 222. |
FZS-2448-25-9
|
[1] |
SPRING V3
|
|
| 223. |
FZS-2448-26
|
[2] |
PLUG
|
|
| 224. |
FZS-2448-27
|
[2] |
PLUG
|
|
| 225. |
FZS-2448-28
|
[2] |
PLUG
|
|
| 226. |
HL68-5X5-05
|
[2] |
CHOKE
|
|
| 227. |
FZS-2448-30
|
[2] |
RING
|
|
| 228. |
#6205
|
[1] |
BEARING
|
|
| 229. |
#6201
|
[1] |
BEARING
|
|
| 230. |
RO-G125-90
|
[1] |
O-RING
|
|
| 231. |
RO-P25-90
|
[2] |
O-RING
|
|
| 232. |
RO-P14-90
|
[2] |
O-RING
|
|
| 233. |
RO-P12.5-70
|
[2] |
O-RING
|
|
| 234. |
RO-P7-90
|
[1] |
O-RING
|
|
| 235. |
SCJY254010
|
[1] |
OIL SEAL
|
|
| 236. |
YB-5/8
|
[2] |
BALL
|
|
| 237. |
RO-P8-90
|
[2] |
O-RING
|
|
| 239. |
RH-28
|
[1] |
RING;SNAP
|
|
| 240. |
TH-10X25
|
[7] |
BOLT;SOCKET HEAD M10X25
|
|
| 241. |
PPS-W-5X12
|
[1] |
PIN;SPRING
|
|
| 242. |
PP-H7-8X15
|
[1] |
PIN
|
|
| 243. |
TPHA-1/8
|
[2] |
PLUG
|
|
| 244. |
TPU-1/16
|
[5] |
PLUG
|
|
| 245. |
HL68-5X5-10
|
[1] |
CHOKE
|
|
| A. |
MHB-1-M-2448
|
[1] |
BODY 1 KIT
|
|
| B. |
MHB-1B-2-4333
|
[1] |
BODY 2 KIT
|
|
| C. |
MHCB-1-2448
|
[1] |
CYLINDER BARREL KIT
|
|
| D. |
MHS-1B-1-4336
|
[1] |
SEAL KIT
|
|
