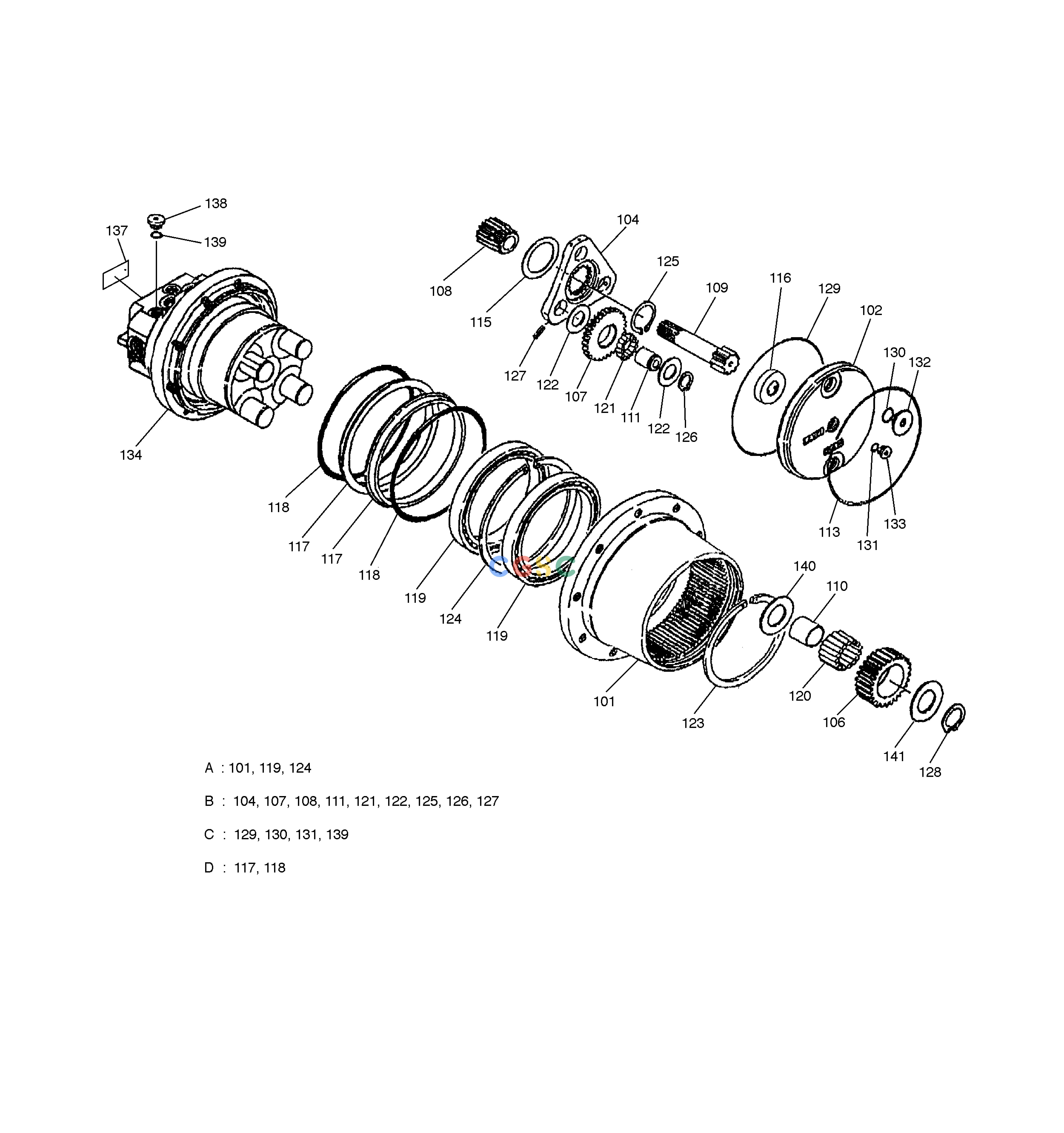

斗山零件查询TRAVEL REDUCTION GEAR SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-9218
|
[2] |
DRIVE MOTOR ASS'Y
|
|
| 101. |
FZD-8395-1-01
|
[1] |
BODY
|
|
| 102. |
FZD-8388-1-02
|
[1] |
COVER
|
|
| 104. |
FRP-1015-04
|
[1] |
CARRIER 2
|
|
| 106. |
FZD-8388-1-06
|
[4] |
GEAR B1
|
|
| 107. |
FRP-1015-07
|
[3] |
GEAR B2
|
|
| 108. |
FZD-8388-1-08
|
[1] |
GEAR S1
|
|
| 109. |
FZD-8388-1-09
|
[1] |
GEAR S2
|
|
| 110. |
FZD-8388-1-10
|
[4] |
RING
|
|
| 111. |
FRP-336-2-15
|
[3] |
PIN B2
|
|
| 113. |
FRP-1015-13
|
[1] |
RING;SNAP
|
|
| 115. |
FZD-8388-1-15
|
[1] |
COLLAR;THRUST
|
|
| 116. |
FZD-8322-1-16
|
[1] |
RING;SLIDE
|
|
| 117. |
NA00462
|
[2] |
|
|
| 118. |
NA00643
|
[2] |
. O-RING
|
|
| 119. |
130BA16
|
[2] |
BEARING
|
|
| 120. |
FZD-8388-1-20
|
[92] |
BEARING;NEEDLE
|
|
| 121. |
FRP-448-2-20
|
[48] |
BEARING;NEEDLE
|
|
| 122. |
FRP-448-22
|
[6] |
WASHER;THRUST
|
|
| 123. |
FRP-614-25
|
[1] |
RING;SNAP
|
|
| 124. |
FZD-8388-1-24
|
[1] |
RING;SNAP
|
|
| 125. |
RA-30
|
[1] |
RING;SNAP
|
|
| 126. |
RA-25
|
[3] |
RING;SNAP
|
|
| 127. |
PPS-W-4X20
|
[3] |
PIN;SPRING
|
|
| 128. |
RA-28
|
[4] |
RING;SNAP
|
|
| 129. |
ROA-261-70
|
[1] |
O-RING
|
|
| 130. |
RO-P14-90
|
[2] |
O-RING
|
|
| 131. |
RO-P8-90
|
[1] |
O-RING
|
|
| 132. |
FZD-8144-1-34
|
[2] |
PLUG
|
|
| 133. |
GPF-1/8
|
[1] |
PLUG
|
|
| 134. |
PMV-1B-2414-MH2-45
|
[1] |
MOTOR
|
|
| 137. |
NV65
|
[1] |
NAME;PLATE
|
|
| 138. |
FRP-820-35
|
[1] |
PLUG
|
|
| 139. |
RO-P11-90
|
[1] |
O-RING
|
|
| 140. |
FZD-8388-1-40
|
[4] |
THRUST WASHER
|
|
| 141. |
FZD-8388-1-41
|
[4] |
THRUST WASHER
|
|
| A. |
GHB-200-1-8395
|
[1] |
BODY KIT
|
|
| B. |
GHC-250-2-8388
|
[1] |
CARRIER 2 KIT
|
|
| C. |
GHS-250-1-8461
|
[1] |
SEAL KIT
|
|
| D. |
ES100-148
|
[2] |
FLOATING SEAL
|
|
