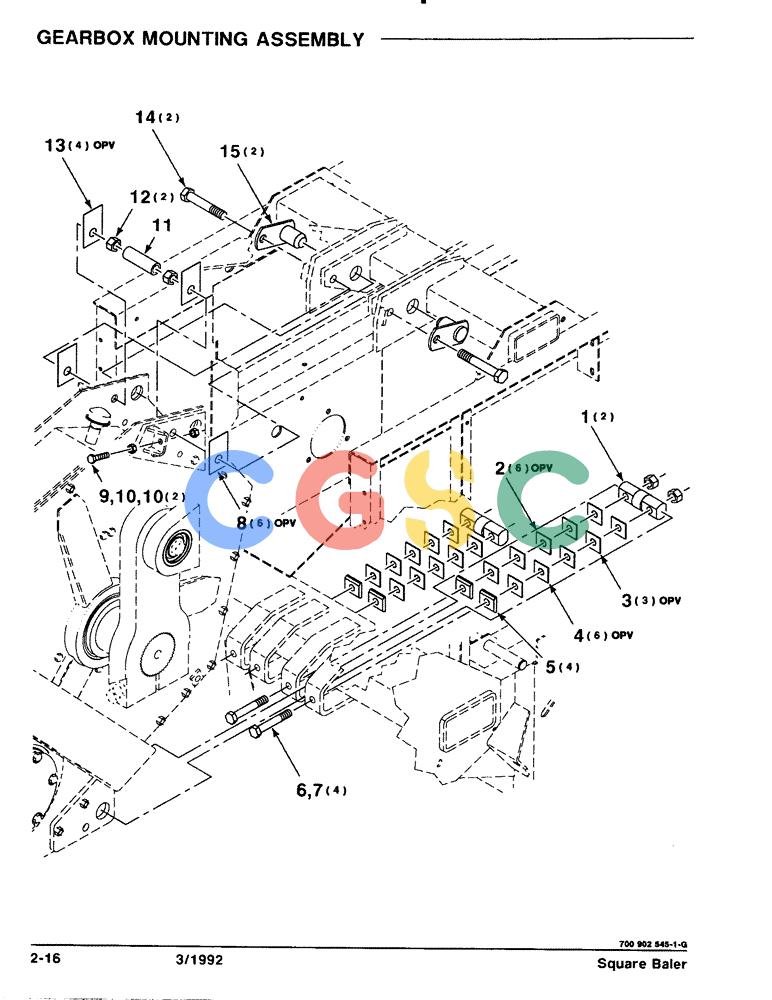

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (2-16) - GEARBOX MOUNTING ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123123
|
[2] |
PIN
|
CAS
- LOWER
|
| 2. |
700710399
|
[6] |
SHIM
|
CAS
- 0.13 / .005
|
| 3. |
700710398
|
[3] |
SHIM
|
CAS
- 0.08 / .003
|
| 4. |
700710401
|
[6] |
SHIM
|
CAS
- 0.25 / 0.10
|
| 5. |
700123124
|
[4] |
SPACER
|
CAS
|
| 6. |
7701683
|
[4] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
5/8-11 X 3 C Superseded by part number: 87338
|
| 7. |
7774482
|
[4] |
NUT
|
CAS
5/8-11 HTLN GR/C Superseded by part number: 85700693
|
| 8. |
700123485
|
[6] |
SHIM
|
CAS
|
| 9. |
873406
|
[2] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd
|
CAS
1/2-13 X 3 FTC Superseded by part number: 113-420
|
| 10. |
86516876
|
[4] |
1/2-13 H
|
COVER
|
| 11. |
700123129
|
[1] |
TUBE,16.93 mm ID, 31.75 mm OD, 110 mm Length
|
CAS
|
| 12. |
700710072
|
[2] |
LOCK NUT
|
CAS
3/4 - 10 HTLN GR/C Superseded by part number: 280375
|
| 13. |
700123486
|
[4] |
SHIM
|
CAS
|
| 14. |
700710073
|
[2] |
BOLT
|
CAS
3/4-10 X 3-3/4 C GR8 NP Superseded by part number: 326-1260
|
| 15. |
700123126
|
[2] |
PIN
|
CAS
WA
|
