纽荷兰零件查询(FD14E) - CRAWLER DOZER (6.7120[005]) - ELECTRIC COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
737 次

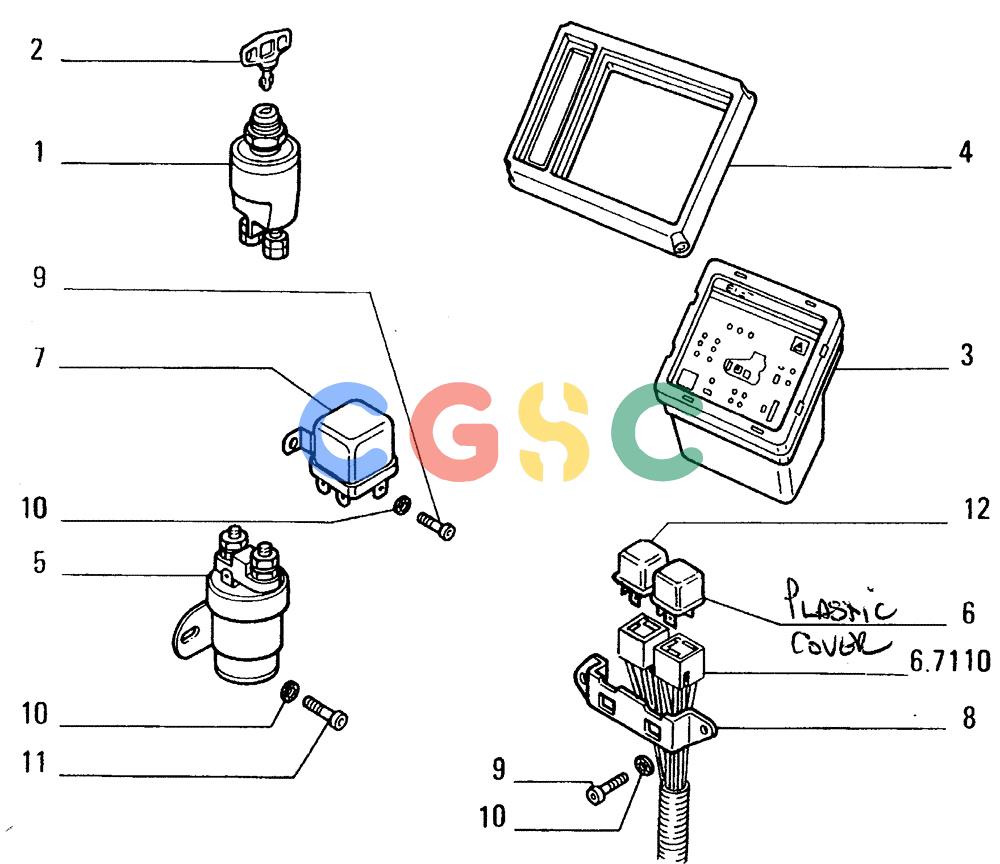

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79073032 | [1] | IGNITION SWITCH | LECSWITCH Superseded by part number: 47611853 |
| 2. | 79073033 | [2] | IGNITION KEY | LEC Superseded by part number: 47611853 |
| 3. | 79089252 | [1] | WARNING LIGHT | LECPANEL C2708 Superseded by part number: 79096375 |
| 3. | 79096375 | [1] | WARNING LIGHT | LECPANEL E.D.M. D2708 Superseded by part number: 84331059 |
| 4. | 79094009 | [1] | INSTRUMENT PANEL | LEC |
| 5. | 79060328 | [1] | RELAY | LEC |
| 6. | 79083312 | [1] | RELAY,3A | LECCONTAINER |
| 7. | 79051879 | [1] | RELAY | LEC- IN ALTERNATIVE Superseded by part number: 79056428 |
| 7. | 79056428 | [1] | RELAY | LEC- IN ALTERNATIVE |
| 8. | 79068201 | [1] | BRACKET | LEC |
| 9. | 14304131 | [4] | SCREW,M5 x 12mm, Cl 10.9 | LEC5x0,8x12 Superseded by part number: 14304137 |
| 10. | 10615379 | [6] | LOCK WASHER,Ext Tooth, M5 | LECWASHER, Ext Tooth, M5 Superseded by part number: |
| 11. | 13273917 | [2] | SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 5.8, Full Thd | LEC Superseded by part number: 86585709 |
| 12. | 79070487 | [1] | RELAY,24V, 10A | LECD2744 |
