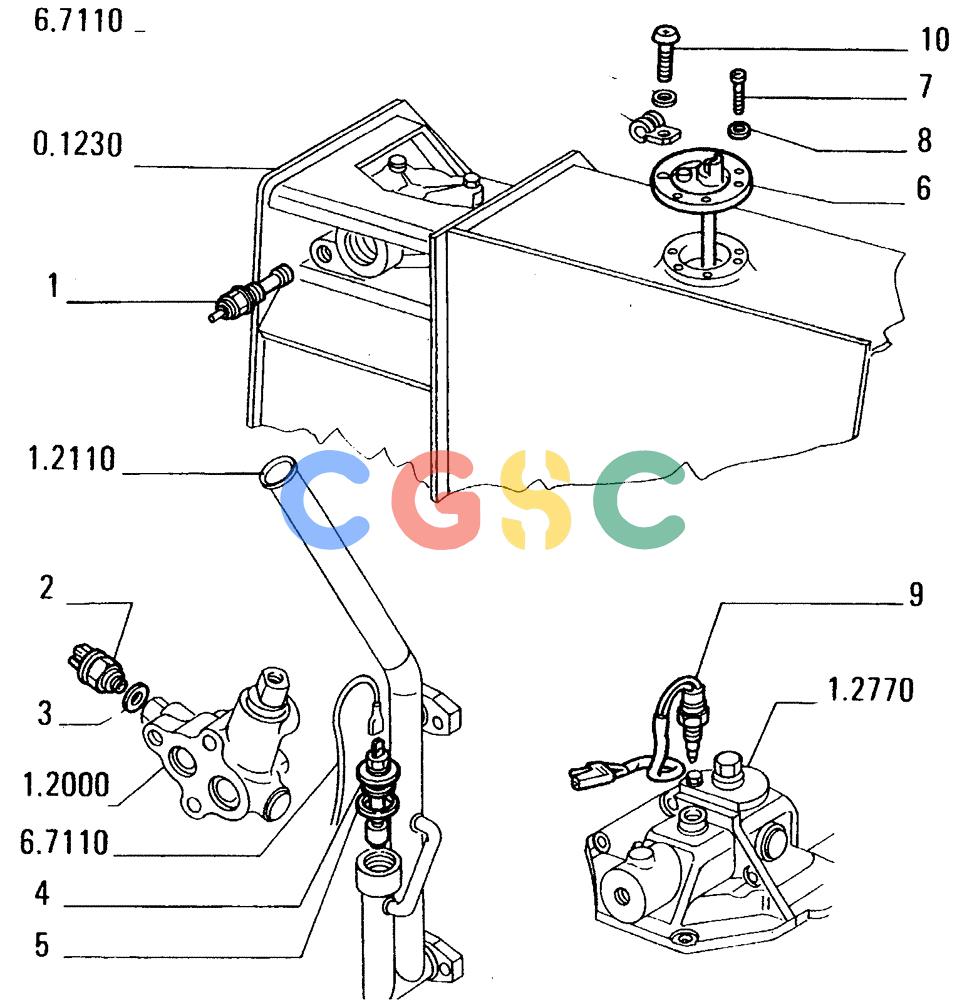

纽荷兰零件查询(FD14E) - CRAWLER DOZER (6.7120[004]) - ELECTRIC COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79077607 | [1] | SENDER UNIT | TORSENDING UNIT |
| 2. | 79080057 | [1] | PRESSURE SWITCH | LECSWITCH |
| 3. | 10296160 | [1] | SEALING WASHER,M12.2 x 18 x 1, Copper | MKTGASKET 12,2x18 Superseded by part number: 4858607 |
| 4. | 79068180 | [1] | RESTRICTION SWITCH | LECSENSOR Superseded by part number: 71450991 |
| 5. | 10265060 | [1] | SEALING WASHER,32.4mm ID x 38mm OD x 1.5mm Thk | TORWASHER, COPPER, , Gasket M32.4 x 38 x 1.5 |
| 6. | 79078312 | [1] | LEVEL GAUGE CONTROL | LECINDICATOR |
| 7. | 13309017 | [5] | SCREW,Pozidriv Oval Csk Hd, M4 x 12mm, Cl 5.8 | LEC Superseded by part number: 13309011 |
| 8. | 13336407 | [5] | WASHER | LECWASHER |
| 9. | 79087162 | [2] | SWITCH | LEC(BREAK WEAR SENSOR) |
| 10. | 13312917 | [1] | SCREW,Cross Oval Hd, M6 x 14mm, Cl 5.8 | MKT6x1x14 Superseded by part number: 13301211 |
