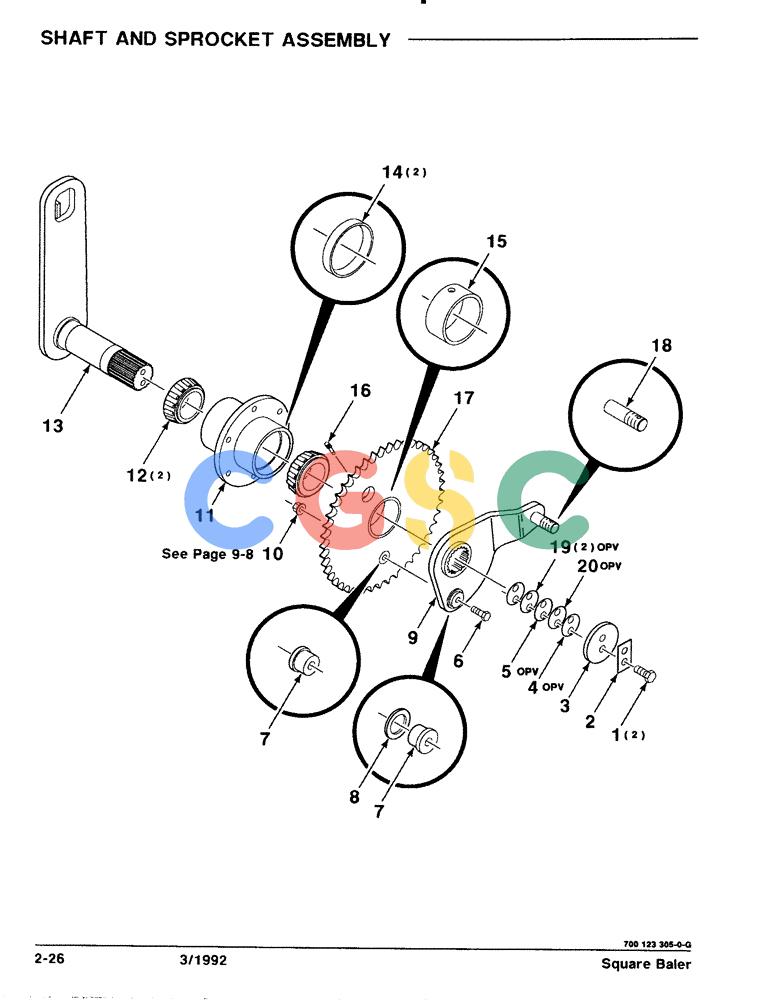

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (2-26) - SHAFT AND SPROCKET ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
632 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7701758
|
[2] |
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5
|
CAS
5/8-11 X 1-1/2 C Superseded by part number: 88062
|
| 2. |
700113045
|
[1] |
LOCKING PLATE
|
CAS
TAB - LOCK
|
| 3. |
700113044
|
[1] |
RETAINING PLATE
|
CAS
CAP - RETAINER
|
| 4. |
700707993
|
[1] |
SHIM
|
CAS
SHIN - .020
|
| 5. |
700706060
|
[1] |
SHIM
|
CAS
- .005
|
| 6. |
7773070
|
[1] |
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8
|
HFI
1/2-13 X 2-3/4 C GRD 8 Superseded by part number: 86520614
|
| 7. |
6526081
|
[2] |
BUSHING
|
CAS
SLEEVE - SHEAR BOLT Superseded by part number: 706526081
|
| 8. |
52324
|
[1] |
BUSHING
|
CAS
1-1/4 X 10 GAUGE NRMB Superseded by part number: 052324
|
| 9. |
700123316
|
[1] |
HUB
|
CAS
(INCLUDES ITEMS 7,8 & 18)
|
| 10. |
704742
|
[1] |
ROD
|
NNA
1/2-13 HFTLN GR/G Superseded by part number: 231-5348, 231-5348, 86516877
|
| 11. |
700123311
|
[1] |
HUB
|
CAS
ASSEMBLY (INCLUDES ITEM 14)
|
| 12. |
700710545
|
[2] |
ROLLER BEARING,68.26mm ID x 22mm W
|
CAS
CONE - BEARING
|
| 13. |
700123306
|
[1] |
ARM
|
CAS
WA Superseded by part number: 700153620
|
| 14. |
700710544
|
[2] |
BEARING CUP,110 mm OD
|
CAS
CUP - BEARING Superseded by part number: 163044
|
| 15. |
700123389
|
[1] |
BRONZE BUSHING
|
CAS
BUSHING - BRONZE
|
| 16. |
77388
|
[1] |
LUBE NIPPLE,90 Degree, 1/8" NPT x 1.81" lg
|
CAS
1/8-27 X 90 DEGREE ZERK Superseded by part number: 219-56
|
| 17. |
700123320
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET (INCLUDES ITEMS 7 & 15)
|
| 18. |
700123319
|
[1] |
SHAFT
|
CAS
|
| 19. |
700706059
|
[2] |
SHIM
|
CAS
- .003
|
| 20. |
700706061
|
[1] |
SHIM
|
CAS
- .010
|
