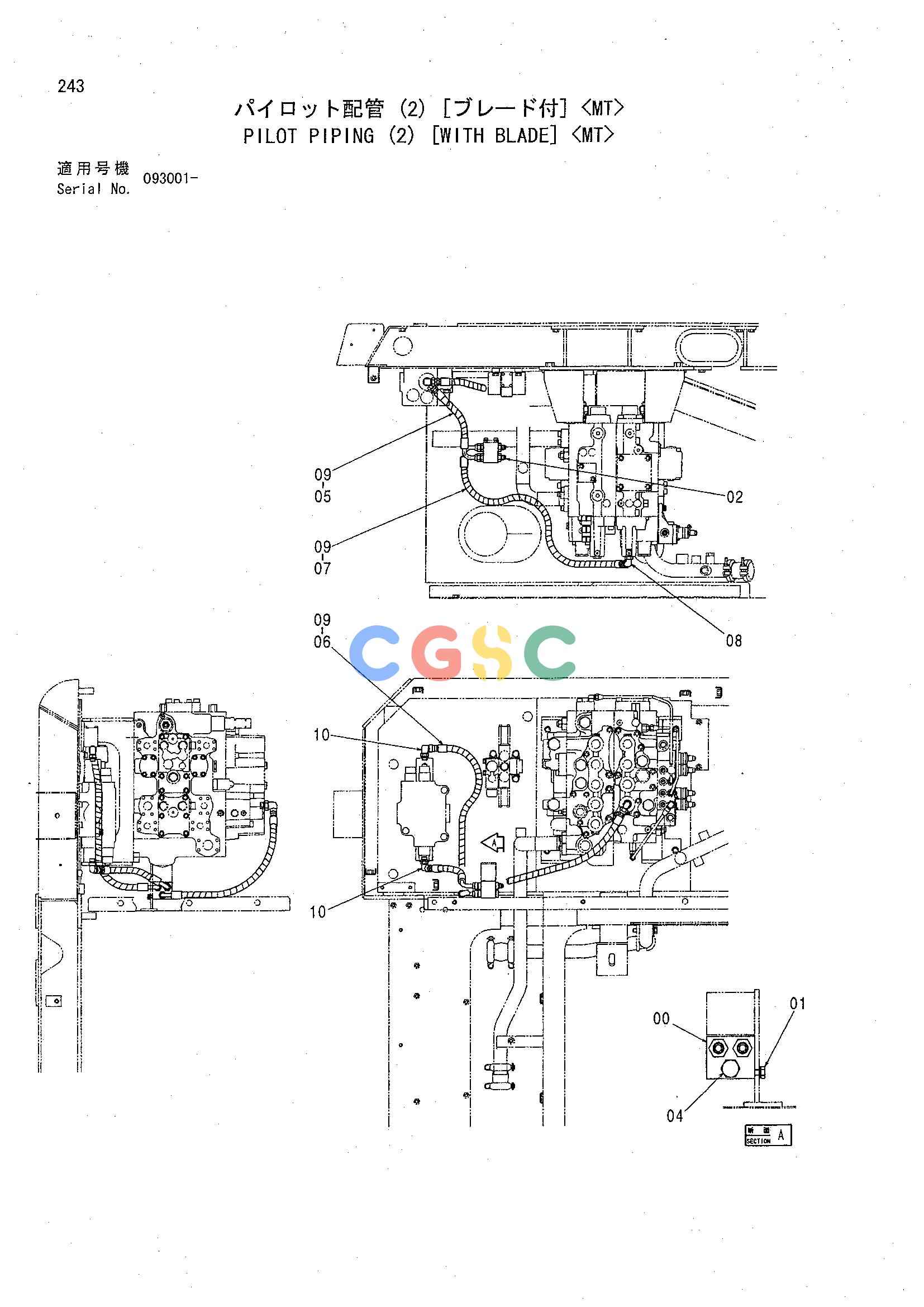

日立零件查询（CHR70）PILOT PIPING (2) [WITH BLADE] <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4330230 | [1] | VALVE;SHUTTLE | |
| 01. | J010816 | [2] | BOLT;SEMS | |
| 01. | J260816 | [2] | BOLT;SEMS | TJ900816 |
| 01. | J260816 | [2] | BOLT;SEMS | TA590108 |
| 02. | 4200466 | [5] | ADAPTER;S | |
| 02A. | 4509180 | [1] | O-RING | |
| 04. | 4092534 | [1] | PLUG | |
| 04A. | 4509180 | [1] | O-RING | |
| 05. | 4381952 | [1] | HOSE (SVP) | |
| 06. | 4303075 | [1] | HOSE | |
| 07. | 4290572 | [1] | HOSE | |
| 08. | 4208913 | [1] | ELBOW;S | |
| 08A. | 4509180 | [1] | O-RING | |
| 09. | 4327293 | [4] | PROTECTOR | |
| 10. | 4154671 | [2] | ELBOW;S | |
| 10A. | 4509180 | [1] | O-RING | |
