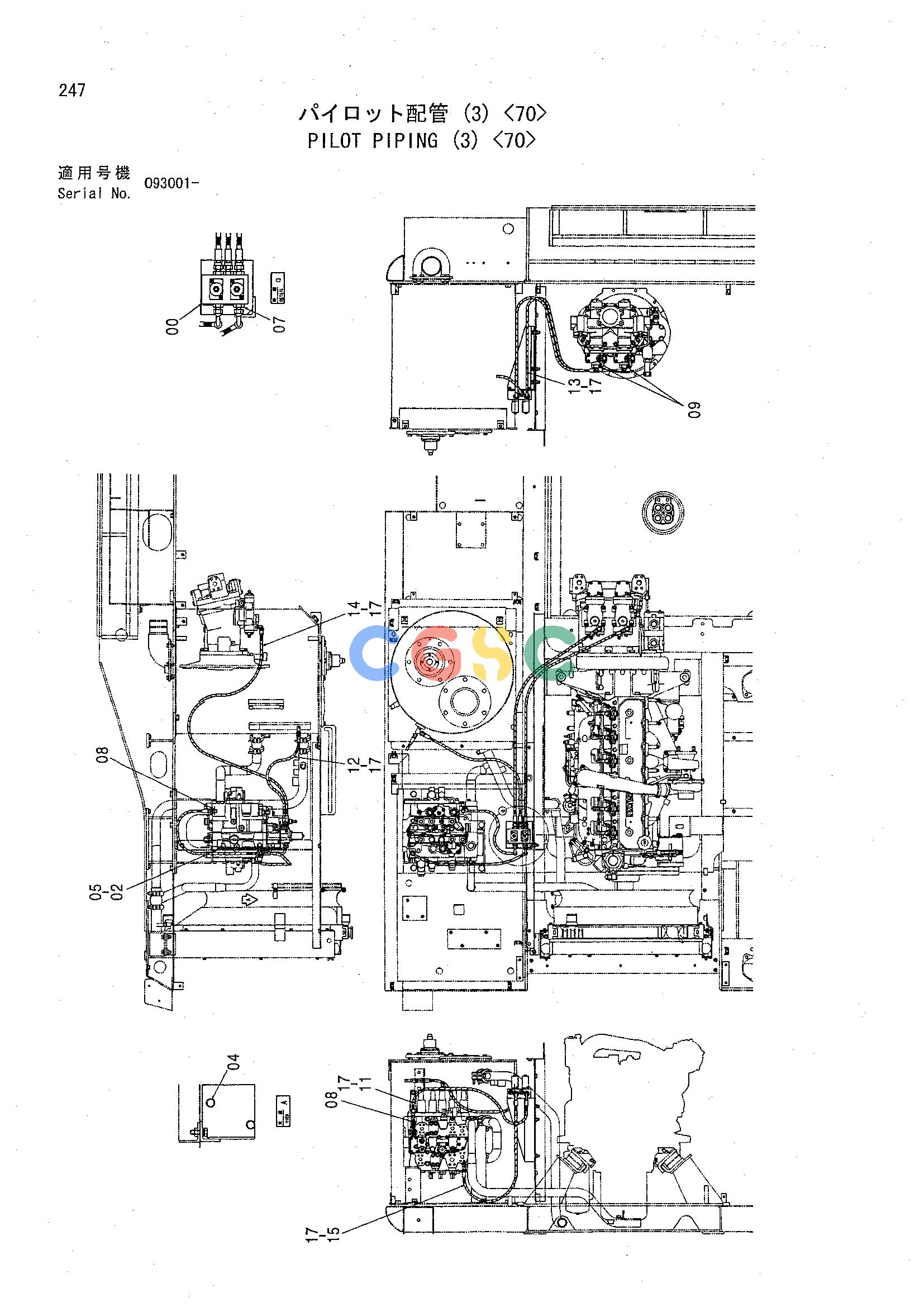

日立零件查询（CHR70）PILOT PIPING (3) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4294176 | [1] | VALVE;REDUCER | |
| 02. | 8077793 | [1] | BRACKET | |
| 04. | J020820 | [2] | BOLT;SEMS | |
| 04. | J260820 | [2] | BOLT;SEMS | TJ900820 |
| 04. | J260820 | [2] | BOLT;SEMS | TA590108 |
| 05. | J021035 | [3] | BOLT;SEMS | |
| 05. | J271035 | [3] | BOLT;SEMS | TJ901035 |
| 05. | J271035 | [3] | BOLT;SEMS | TJ222010 |
| 07. | 4200468 | [5] | ADAPTER;S | |
| 07A. | 4509180 | [1] | O-RING | |
| 08. | 4200465 | [2] | ADAPTER;S | |
| 08A. | 957366 | [1] | O-RING | |
| 09. | 4154670 | [2] | ELBOW;S | |
| 09A. | 957366 | [1] | O-RING | |
| 11. | 4332899 | [1] | HOSE (LT) | |
| 12. | 4396337 | [1] | HOSE (P) | |
| 13. | 4401962 | [1] | HOSE | |
| 14. | 4401961 | [1] | HOSE (SL) | |
| 15. | 4381193 | [1] | HOSE (BR) | |
| 17. | 4133527 | [13] | PROTECTOR | |
