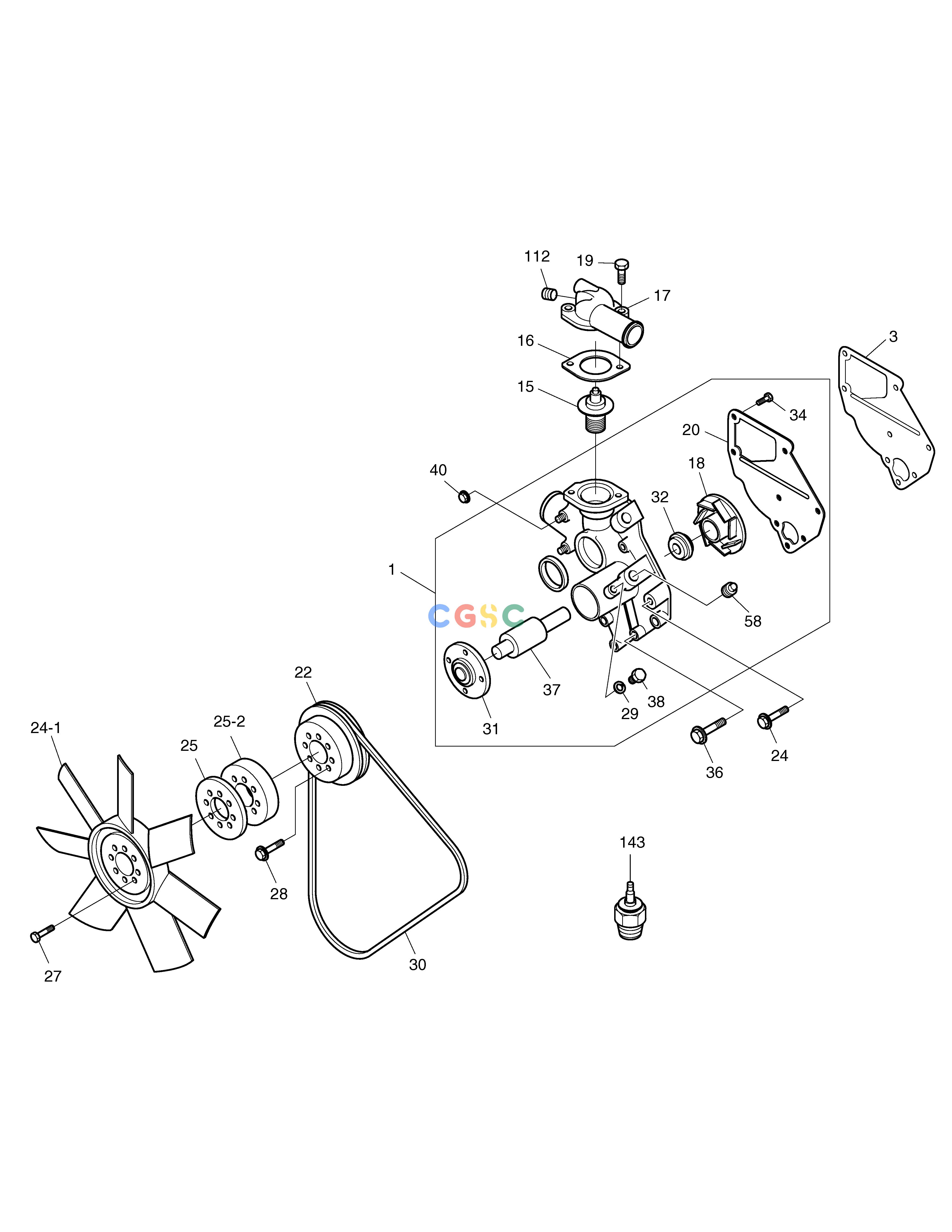

斗山零件查询COOLING SYSTEM SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897254-1481
|
[1] |
PUMP ASS'Y;WATER
|
|
| 112. |
109605-0500
|
[1] |
PLUG;OILGALLERY PT1/8
|
|
| 143. |
897078-5920
|
[1] |
UNIT;THERMOMETER
|
|
| 15. |
897211-2090
|
[1] |
THERMOSTAT
|
|
| 16. |
897264-6901
|
[1] |
PACKING;OUTLET PIPE
|
|
| 17. |
897258-4792
|
[1] |
PIPE;WATER OUTLET
|
|
| 18. |
897254-1450
|
[1] |
IMPELLER;WATER PUMP
|
|
| 19. |
028680-8250
|
[2] |
BOLT;OUTLET PIPE FIX
|
|
| 20. |
897254-1440
|
[1] |
COVER
|
|
| 22. |
897226-8550
|
[1] |
PULLEY;FAN D=103
|
|
| 24. |
028080-8450
|
[1] |
BOLT;FAN FIX
|
|
| 24-1. |
894450-7260
|
[1] |
FAN ASS'Y D=380 7 SUCT
|
|
| 25. |
897063-4003
|
[1] |
SPACER;FAN-PULLEY T=4.5
|
|
| 25-2. |
989136-4230
|
[1] |
SPACER;FAN-PULLEY T=18
|
|
| 27. |
028080-8450
|
[4] |
BOLT;FAN FIX
|
|
| 28. |
020800-6120
|
[2] |
BOLT;PULLEY-W/PUMP
|
|
| 29. |
909150-5080
|
[1] |
WASHER;SPRING
|
|
| 3. |
897289-5430
|
[1] |
GASKET
|
|
| 30. |
897224-9990
|
[1] |
BELT;COOLING FAN L=840
|
|
| 31. |
897180-2530
|
[1] |
CENTER
|
|
| 32. |
897254-1710
|
[1] |
SEAL UNIT
|
|
| 34. |
903090-8200
|
[4] |
SCREW
|
|
| 36. |
028080-8400
|
[2] |
BOLT;W/P FIX L=40
|
|
| 37. |
897328-7460
|
[1] |
BEARING UNIT
|
|
| 38. |
909814-0141
|
[1] |
SCREW
|
|
| 40. |
091150-2080
|
[2] |
NUT;EXH MANIFOLD
|
|
| 58. |
509605-0050
|
[1] |
PLUG;HEATER PT3/8
|
|
