斗山零件查询CRANK SHAFT SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
336 次

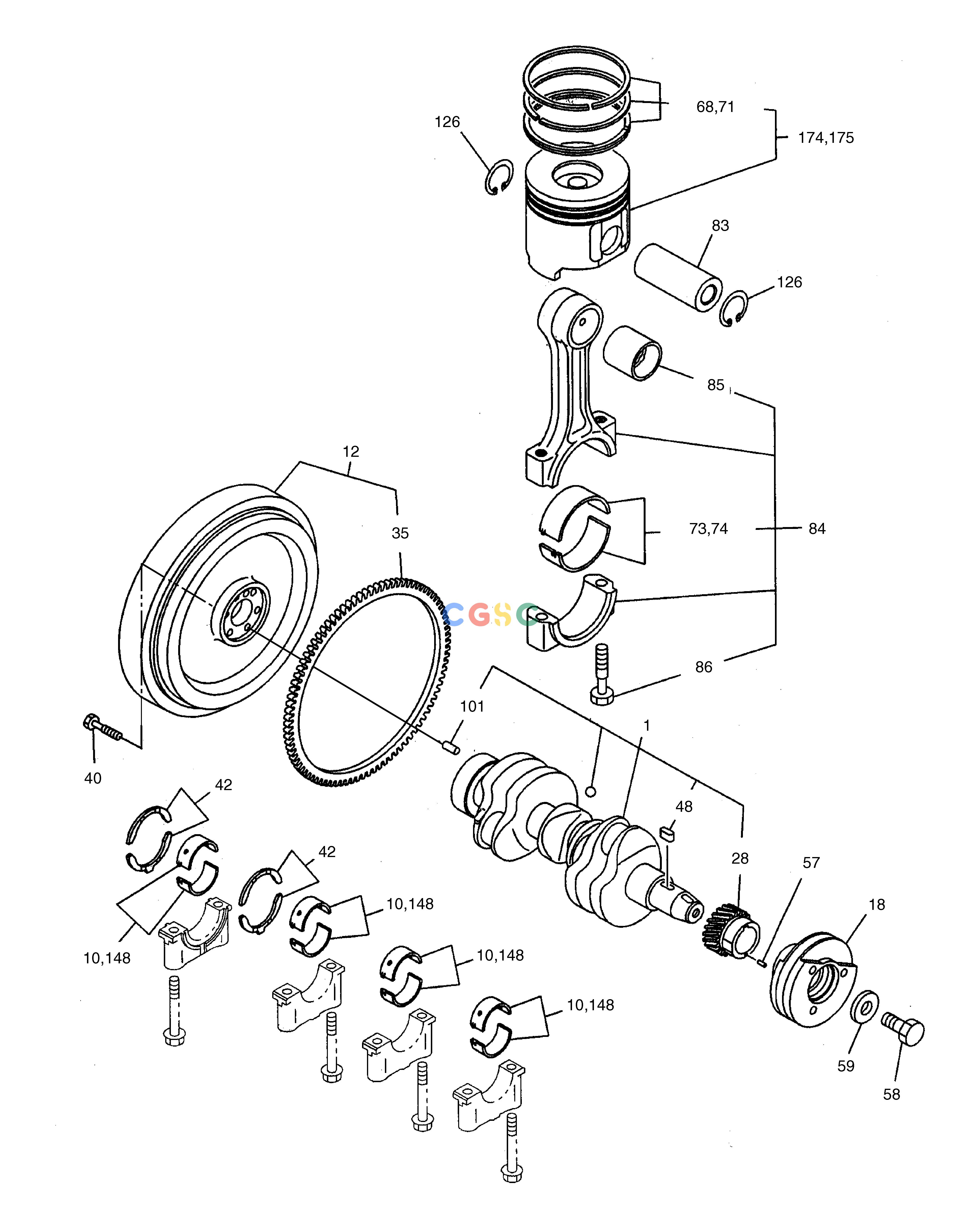

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
586401-0510
|
[1] |
CRANKSHAFT ASS'Y
|
|
| 10. |
586400-1260
|
[4] |
METAL SET;MAIN
|
|
| 101. |
586400-1710
|
[1] |
PIN;CRANKSHAFT
|
|
| 12. |
586400-3780
|
[1] |
FLYWHEEL ASS'Y
|
|
| 126. |
586400-2920
|
[6] |
RING;SNAP
|
|
| 148. |
586400-1880
|
[4] |
METAL SET;MAIN
|
|
| 174. |
586401-3230
|
[3] |
PISTON SET
|
|
| 175. |
586401-3250
|
[3] |
PISTON SET (0.25)
|
|
| 18. |
586400-1450
|
[1] |
PULLEY;CRANKSHAFT
|
|
| 28. |
586400-9460
|
[1] |
GEAR;CRANKSHAFT
|
|
| 35. |
586400-0900
|
[1] |
GEAR;RING
|
|
| 40. |
586400-0970
|
[6] |
BOLT
|
|
| 42. |
586400-1890
|
[2] |
WASHER;THRUST
|
|
| 42. |
586400-1900
|
[2] |
WASHER;THRUST (0.25)
|
|
| 48. |
586400-2950
|
[1] |
KEY
|
|
| 57. |
586400-2930
|
[1] |
PIN;PULLEY
|
|
| 58. |
586400-1050
|
[1] |
BOLT
|
|
| 59. |
586400-2780
|
[1] |
WASHER
|
|
| 68. |
586401-3240
|
[3] |
RING SET;PISTON
|
|
| 71. |
586401-3260
|
[3] |
RING SET;PISTON (0.25)
|
|
| 73. |
586400-2010
|
[3] |
METAL;CONNECTING ROD
|
|
| 74. |
586400-2020
|
[3] |
METAL;CONNECTING ROD (0.25)
|
|
| 83. |
586400-2140
|
[3] |
PIN;PISTON
|
|
| 84. |
586400-3530
|
[3] |
CONNECTING ROD ASS'Y
|
|
| 85. |
586400-1750
|
[3] |
BUSHING;CONNROD
|
|
| 86. |
586400-1040
|
[6] |
BOLT;CONNROD
|
|
