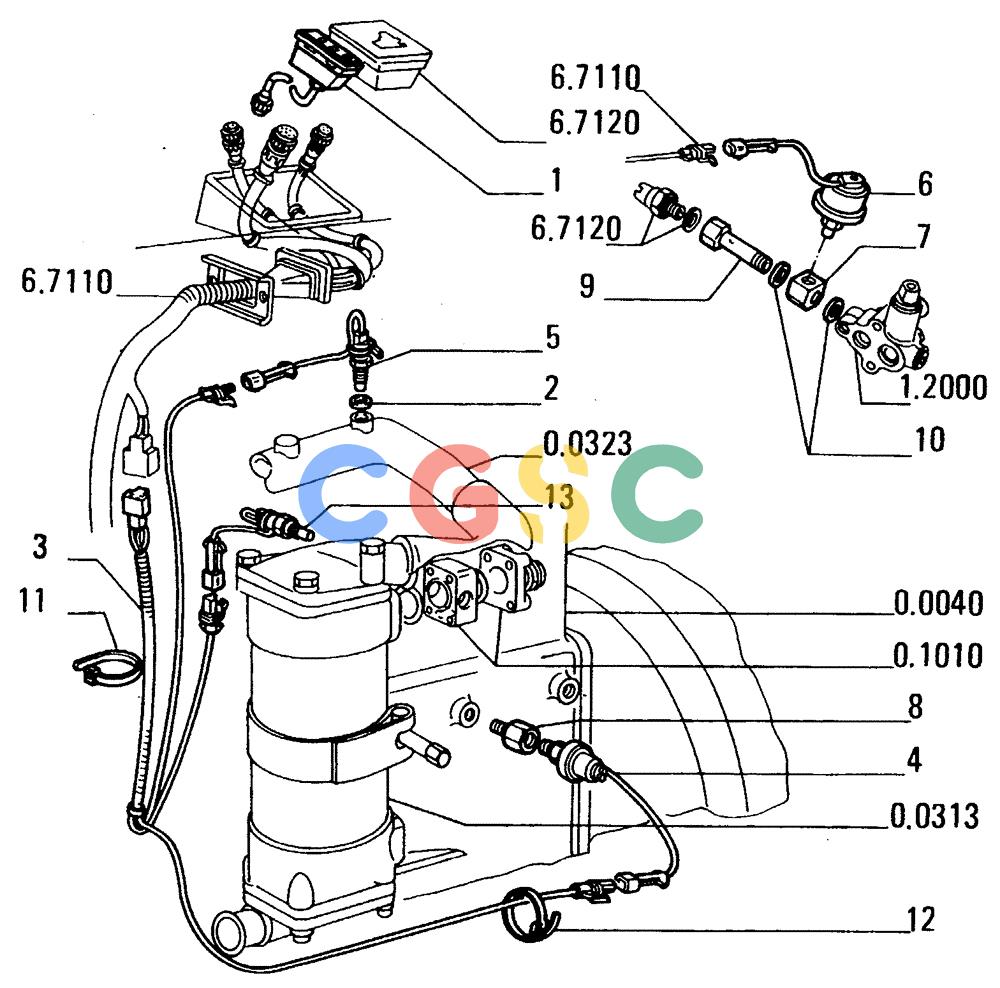

纽荷兰零件查询(FD14E) - CRAWLER DOZER (96.7350[001]) - INSTUMENT CLUSTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
261 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79087050 | [1] | PANEL | LEC |
| 2. | 79028953 | [1] | SEAL,16.45mm ID x 25.55mm OD x 2.1mm Thk | LECSEAL |
| 3. | 79092998 | [1] | ELECTRIC CABLE | LECCABLE |
| 4. | 79086203 | [1] | SENDER UNIT | LECSENDING UNIT |
| 5. | 79086205 | [1] | SENDER UNIT | LECSENDING UNIT Superseded by part number: 79072543, 12330383, 12331087, 12330244 |
| 6. | 79089176 | [1] | SENDER UNIT | LECSENDING UNIT |
| 7. | 79089178 | [1] | BLOCK | LEC |
| 8. | 79092999 | [1] | HYD CONNECTOR | LECFITTING |
| 9. | 79089179 | [1] | HYD CONNECTOR | LECFITTING |
| 10. | 79086323 | [2] | SEAL,12.7mm ID x 18mm OD x 1.5mm Thk | LECSEAL |
| 11. | 79013422 | [2] | CABLE TIE,145mm L | LECSTRAP, CABLE, 145mm L |
| 12. | 4982514 | [18] | CABLE TIE | LECCLAMP Superseded by part number: 87615202 |
