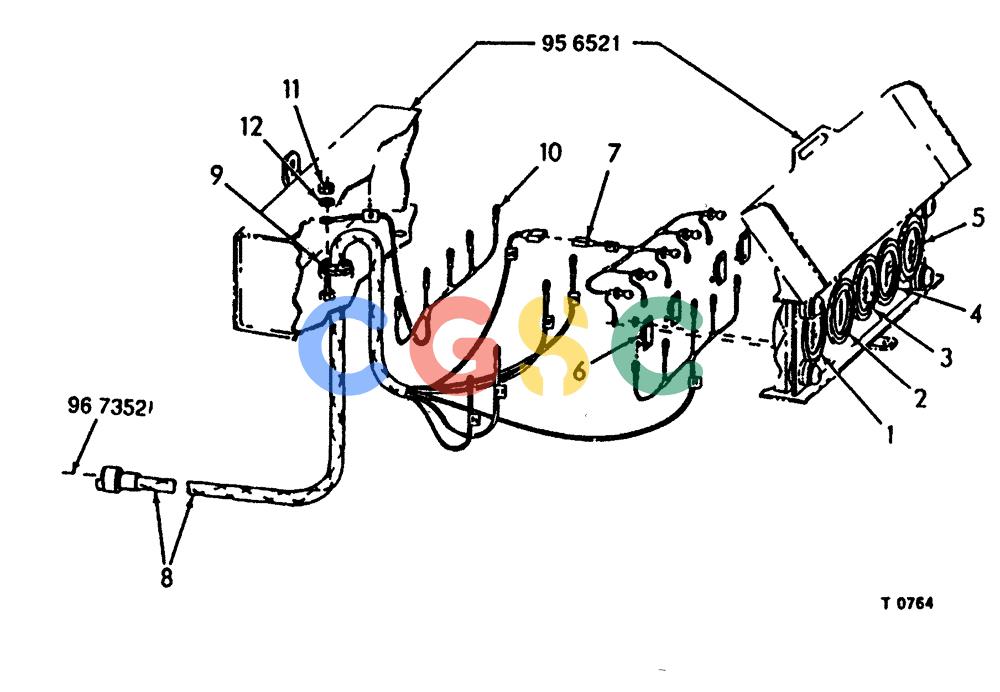

纽荷兰零件查询(FD14E) - CRAWLER DOZER (96.7351[001]) - INSTRUMENT PANEL GAUGES & WIRING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
606 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73157572 | [1] | OIL PRESSURE GAUGE | CMIGAUGE, OIL PRESSURE, ENGINE |
| 2. | 73157571 | [1] | WARNING LIGHT | CMIGAUGE, TEMPERATURE, COOLANT |
| 3. | 73157588 | [1] | MEASURING INSTRUMENT | CMIVOLTMETER Superseded by part number: 84212378 |
| 4. | 73157574 | [1] | SENDER UNIT | NHGAUGE, OIL PRESSURE, TRANS Superseded by part number: 73159155 |
| 5. | 73157575 | [1] | GAUGE | CMITEMPERATURE, TRANS OIL Superseded by part number: 84212373 |
| 6. | 73157730 | [4] | REVERSER | NHREDUCER |
| 7. | 73157566 | [1] | WIRE HARNESS | NHCABLE HARNESS |
| 8. | 73157568 | [1] | WIRE HARNESS | NHCABLE HARNESS |
| 9. | 70921403 | [1] | SCREW | BHBGROMMET Superseded by part number: 86508732, 70919385 |
| 10. | 73157567 | [1] | CABLE | NHELECTRIC |
| 11. | 70911024 | [1] | NUT | BHB1/4""NC Superseded by part number: 70900365 |
| 12. | 70914593 | [1] | LOCK WASHER | CMILOCKWASHER |
