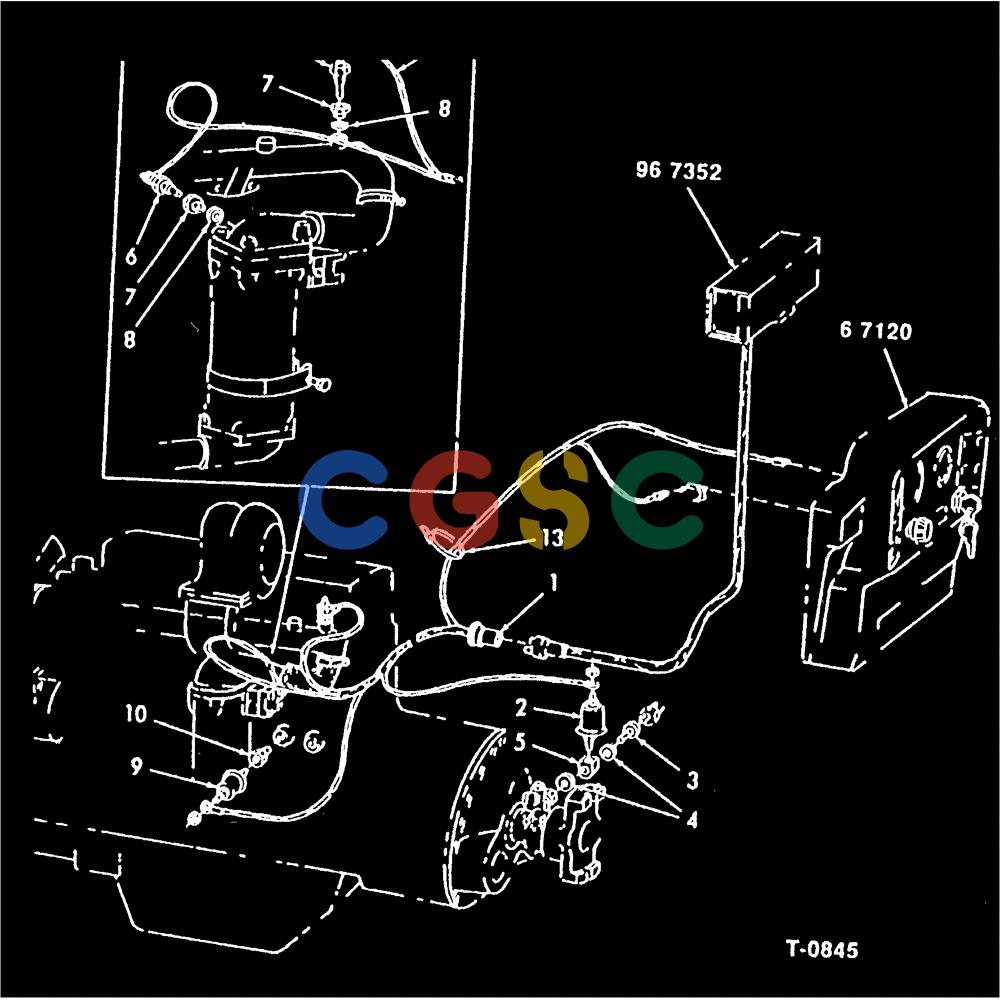

纽荷兰零件查询(FD14E) - CRAWLER DOZER (96.7352[001]) - GAUGE SENDING UNITS & WIRING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
319 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73157569 | [1] | WIRE HARNESS | NHCABLE HARNESS |
| 2. | 73157589 | [1] | SENDER UNIT | NHSENDING UNIT, TRANS OIL PRESS. Superseded by part number: 70917415, 70904203, 73159154 |
| 3. | 79089179 | [1] | HYD CONNECTOR | LECFITTING |
| 4. | 79086323 | [2] | SEAL,12.7mm ID x 18mm OD x 1.5mm Thk | LECWASHER |
| 5. | 73157640 | [1] | ADAPTER | NHADAPTOR |
| 6. | 73157591 | [1] | SENDER UNIT | BHBSENDING UNIT, TRANS OIL TEMP. Superseded by part number: 84212455 |
| 7. | 73154468 | [2] | PLUG | NHADAPTOR |
| 8. | 4858609 | [2] | O-RING | TTFWASHER, COPPER, M16.3 x 22 x 1.5 |
| 9. | 73157590 | [1] | SENDER UNIT | BHBSENDING UNIT, ENGINE OIL PRESS. |
| 10. | 73070490 | [1] | HYD CONNECTOR | CMIADAPTOR |
| 12. | 73107113 | [1] | ELEC CONNECTOR | CMIADAPTOR |
| 13. | 70198775 | [10] | CLAMP | CMITIE Superseded by part number: 4982514 |
