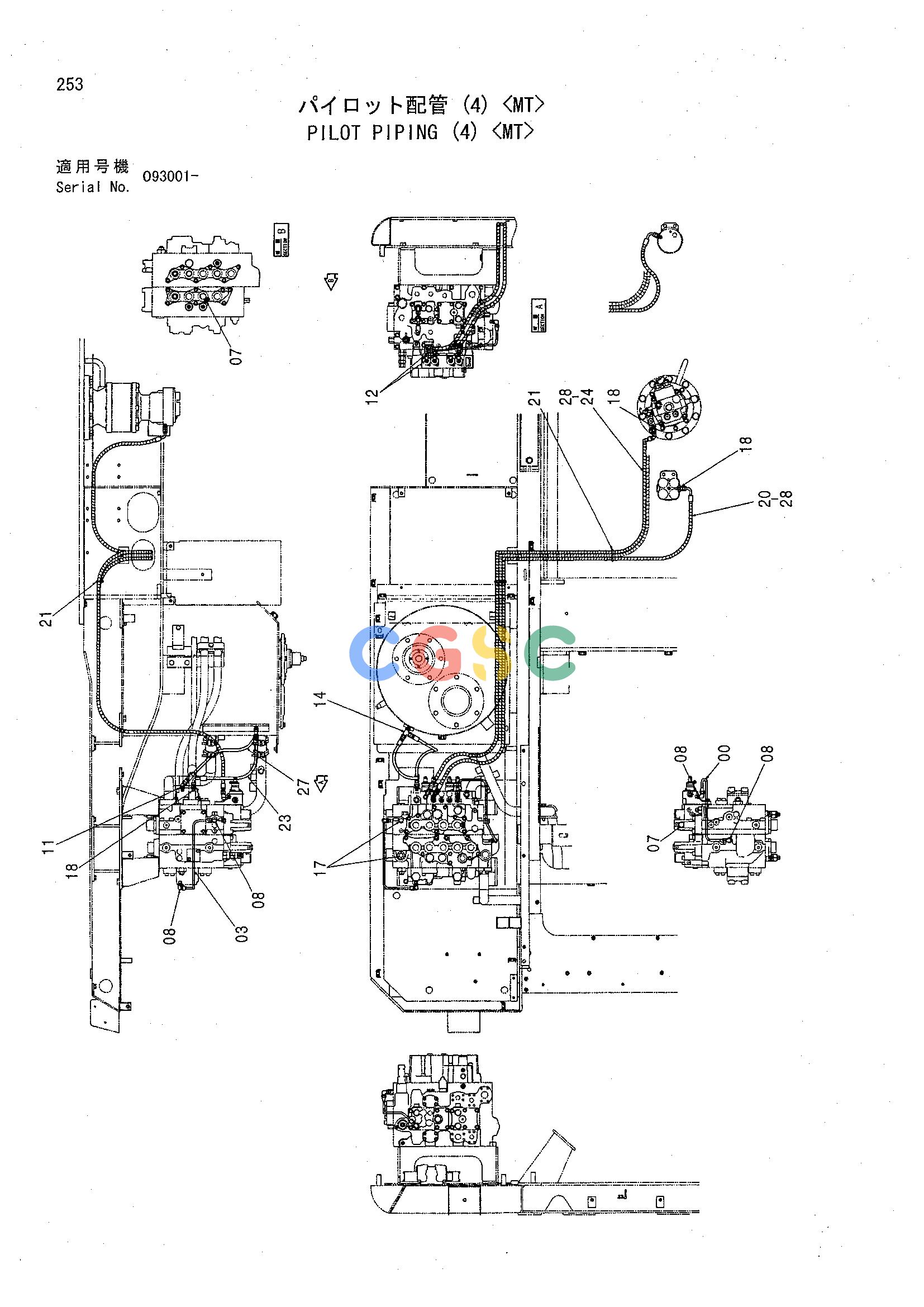

日立零件查询（CHR70）PILOT PIPING (4) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4333884 | [1] | PIPE | |
| 03. | 4333886 | [1] | PIPE | |
| 07. | 4092534 | [2] | PLUG | |
| 07A. | 4509180 | [1] | O-RING | |
| 08. | 4293950 | [4] | ELBOW;S | |
| 08A. | 957366 | [1] | O-RING | |
| 11. | A852222 | [1] | ELBOW;S | |
| 11A. | 957366 | [1] | O-RING | |
| 12. | A852322 | [2] | ELBOW;S | |
| 12A. | 957366 | [1] | O-RING | |
| 14. | 4203171 | [1] | TEE;S | |
| 14A. | 957366 | [1] | O-RING | |
| 17. | 4093624 | [2] | PLUG | |
| 17A. | 957366 | [1] | O-RING | |
| 18. | 4200465 | [3] | ADAPTER;S | |
| 18A. | 957366 | [1] | O-RING | |
| 20. | 4440090 | [1] | HOSE (SI) | |
| 21. | 4055312 | [2] | CLIP;BAND | |
| 23. | 4369077 | [1] | HOSE (DA) | |
| 24. | 4440091 | [1] | HOSE (SH) | |
| 27. | 4366368 | [1] | HOSE (S) | |
| 28. | 4327293 | [11] | PROTECTOR | |
