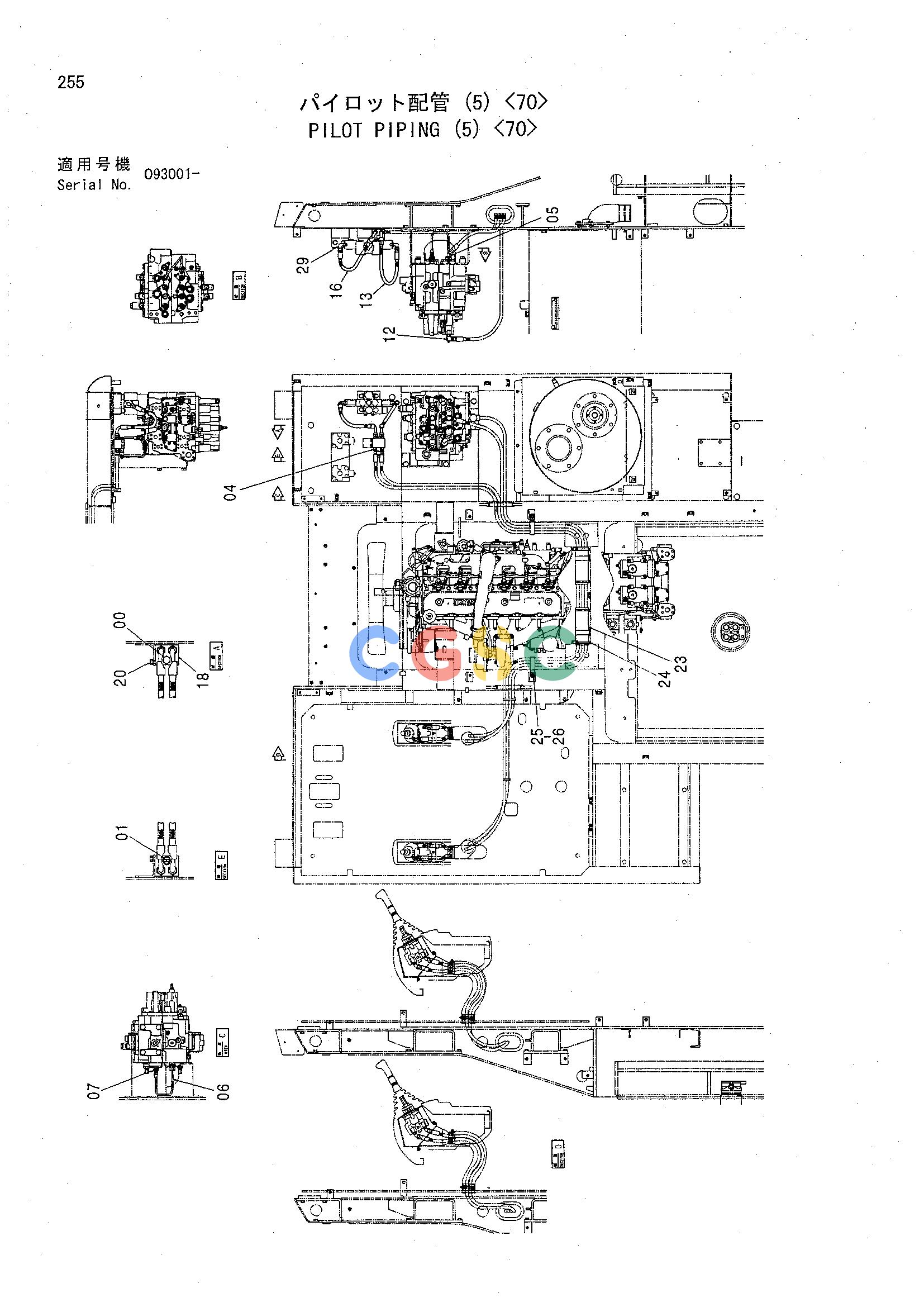

日立零件查询（CHR70）PILOT PIPING (5) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
998 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4093624 | [1] | PLUG | |
| 00A. | 957366 | [1] | O-RING | |
| 01. | 4333040 | [1] | SWITCH | |
| 01A. | 957366 | [1] | O-RING | |
| 04. | 4200466 | [5] | ADAPTER;S | |
| 04A. | 4509180 | [1] | O-RING | |
| 05. | 4190244 | [1] | ELBOW;S | |
| 05A. | 4509180 | [1] | O-RING | |
| 06. | 4339377 | [1] | PIPE | |
| 07. | 4255305 | [2] | FITTING;PIPE | |
| 07A. | 4509180 | [1] | O-RING | |
| 12. | 4208913 | [1] | ELBOW;S | |
| 12A. | 4509180 | [1] | O-RING | |
| 13. | 4355423 | [1] | HOSE | |
| 16. | 4372103 | [1] | HOSE (P) | |
| 18. | 4330230 | [1] | VALVE;SHUTTLE | |
| 20. | J011025 | [2] | BOLT;SEMS | |
| 20. | J271025 | [2] | BOLT;SEMS | TJ901025 |
| 20. | J271025 | [2] | BOLT;SEMS | TJ222010 |
| 23. | 4219918 | [2] | BUSHING;RUBBER | |
| 24. | 4055312 | [4] | CLIP;BAND | |
| 25. | 4193816 | [4] | CLIP | |
| 26. | J021020 | [4] | BOLT;SEMS | |
| 26. | J271020 | [4] | BOLT;SEMS | TJ901020 |
| 26. | J271020 | [4] | BOLT;SEMS | TJ222010 |
| 29. | 4156434 | [2] | ELBOW;S | |
| 29A. | 957366 | [1] | O-RING | |
