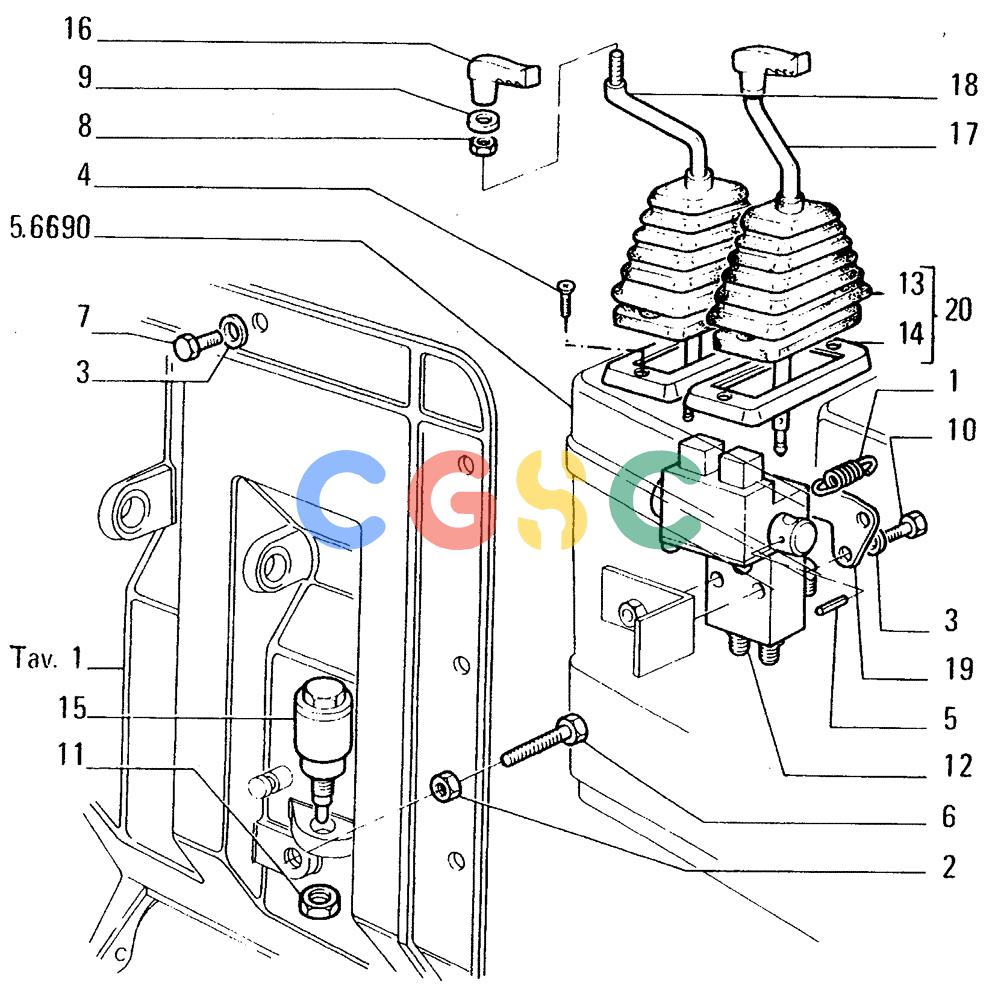

纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3040[002]) - BRAKE CONTROLS-STEERING CLUTCH New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
627 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 547547 | [2] | SPRING | MOD |
| 2. | 11701721 | [1] | NUT,M10, Cl 10 | LEC10x1.5x8 Superseded by part number: 17038131 |
| 3. | 12645031 | [12] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 4. | 13313417 | [4] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 5. | 14601170 | [2] | LOCK PIN,M5 x 26, Slotted | FORSPRING PIN 5x26 Superseded by part number: 130045 |
| 6. | 15214731 | [1] | BOLT,Hex, M10 x 55, 10.9, Full Thd | LECSCREW 10x1.5x55 |
| 7. | 16043631 | [10] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHBBOLT, Hex, M8 x 25, 10.9 Superseded by part number: 43234 |
| 8. | 10717311 | [2] | THIN NUT,Thin, M12 x 1.75, Cl 04 | LEC Superseded by part number: 337475 |
| 9. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 10. | 86625003 | [2] | BOLT,Hex, M8 x 50mm, Cl 10.9 | FAR |
| 11. | 16103921 | [1] | NUT | LEC16x1.5x5 |
| 12. | 79077489 | [1] | MANIPULATOR | LEC- ASSEMBLY SEE TAV.5 |
| 13. | 79095562 | [1] | BOOT | LECDUST BOOT C2713 Superseded by part number: 79100924 |
| 14. | 79095564 | [1] | CAPPING | LECBEZEL C2713 |
| 15. | 79085190 | [1] | HYDRAULIC VALVE | LECVALVE - ASSEMBLY SEE TAV. 6 |
| 16. | 79091306 | [2] | HANDLE GRIP | LECHANDGRIP |
| 17. | 79091308 | [1] | LEVER | LEC |
| 18. | 79091327 | [1] | LEVER | LEC |
| 19. | 79092066 | [1] | BRACKET | LEC |
| 20. | 79100924 | [2] | BOOT | LECDUST BOOT - ASSEMBLY |
