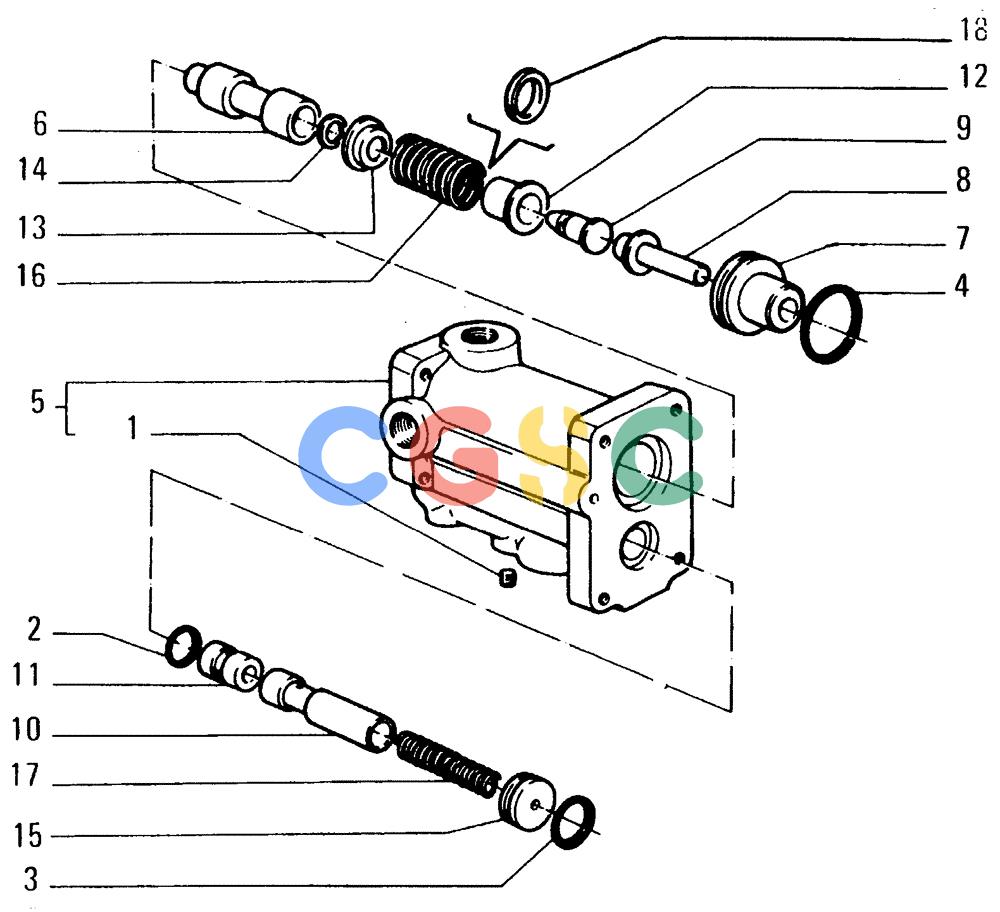

纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3040[003]) - BRAKE CONTROLS-STEERING CLUTCH New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
759 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79092247 | [1] | PLUG | LEC |
| 2. | 14457480 | [1] | O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro | LEC0-RING 2,62x18,72 Superseded by part number: 86977728 |
| 3. | 14457580 | [1] | O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro | LEC0-RING -117, 70 Duro, .799" ID x .103" Thk Superseded by part number: 14457581 |
| 4. | 14458480 | [1] | O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro | JES0-RING -126, 70 Duro, 1.362" ID x .103" Thk Superseded by part number: 134375 |
| 5. | 79080950 | [1] | BODY | LEC- ASSEMBLY Superseded by part number: 79080953 |
| 6. | 79059615 | [1] | PLUNGER | LECPISTON |
| 7. | 79059618 | [1] | GUIDE | LEC |
| 8. | 79059621 | [1] | PIN,9.99mm OD x 46mm L | LEC |
| 9. | 79059620 | [1] | PUSH ROD | LEC |
| 10. | 79059622 | [1] | PISTON | LEC |
| 11. | 79059626 | [1] | SPACER | LEC |
| 12. | 79059627 | [1] | CUP | LEC |
| 13. | 79059628 | [1] | CUP | LEC |
| 14. | 79059629 | [1] | WASHER | LEC |
| 15. | 79059633 | [1] | WASHER | LEC |
| 16. | 79068644 | [1] | SPRING | LEC |
| 17. | 79068645 | [1] | SPRING | LEC |
| 18. | 79076055 | [1] | SHIM,18.2mm ID x 27mm OD x 2.2mm Thk | LEC |
