日立零件查询（CHR70）VALVE;FC Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
934 次

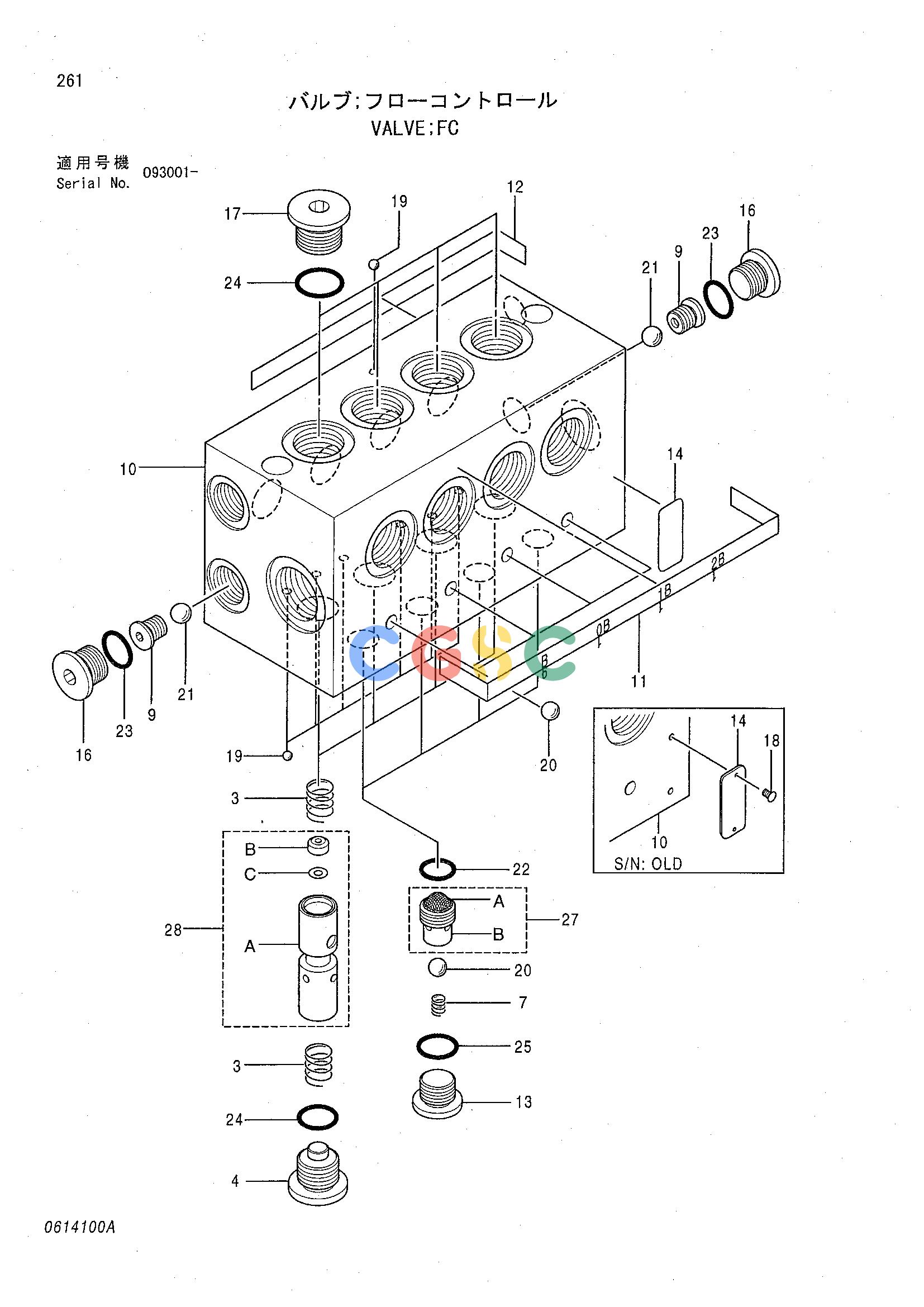

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4325812 | [1] | VALVE;FC | 0614100A
|
| 3. | 0309801 | [8] | SPRING | |
| 4. | 0309802 | [4] | PLUG | |
| 7. | 0309803 | [4] | SPRING | |
| 9. | 0614101 | [3] | SEAT | |
| 10. | +++++++ | [1] | BODY | |
| 10. | +++++++ | [1] | BODY | |
| 10. | +++++++ | [1] | BODY | |
| 10. | +++++++ | [1] | BODY | |
| 11. | 0614102 | [1] | SEAL | |
| 12. | 0614103 | [1] | SEAL | |
| 13. | 0309804 | [4] | PLUG | |
| 14. | 0420504 | [1] | NAME-PLATE | |
| 14. | 0420504 | [1] | NAME-PLATE | |
| 14. | +++++++ | [1] | NAME-PLATE | |
| 14. | +++++++ | [1] | NAME-PLATE | |
| 16. | 0314205 | [3] | PLUG | |
| 17. | 0309805 | [4] | PLUG | |
| 18. | 0208717 | [2] | SCREW;DRIVE | |
| 18. | 0208717 | [2] | SCREW;DRIVE | |
| 19. | 4179573 | [7] | BALL;STEEL | |
| 20. | 0259914 | [8] | BALL;STEEL | |
| 21. | 0253304 | [3] | BALL;STEEL | |
| 22. | 4506409 | [4] | O-RING | |
| 23. | 957366 | [3] | O-RING | |
| 24. | 4509180 | [8] | O-RING | |
| 25. | 0228803 | [4] | O-RING | |
| 27. | 0309810 | [4] | FILTER ASS'Y | |
| 27A. | +++++++ | [1] | FILTER | |
| 27B. | +++++++ | [1] | SLEEVE | |
| 28. | 0333805 | [4] | PLUNGER;SUB-ASS'Y | I0309807 |
| 28. | 0309807 | [4] | PLUNGER;SUB-ASS'Y | |
| 28A. | +++++++ | [1] | PLUNGER | |
| 28B. | +++++++ | [1] | RING | |
| 28C. | +++++++ | [1] | ORIFICE | |
