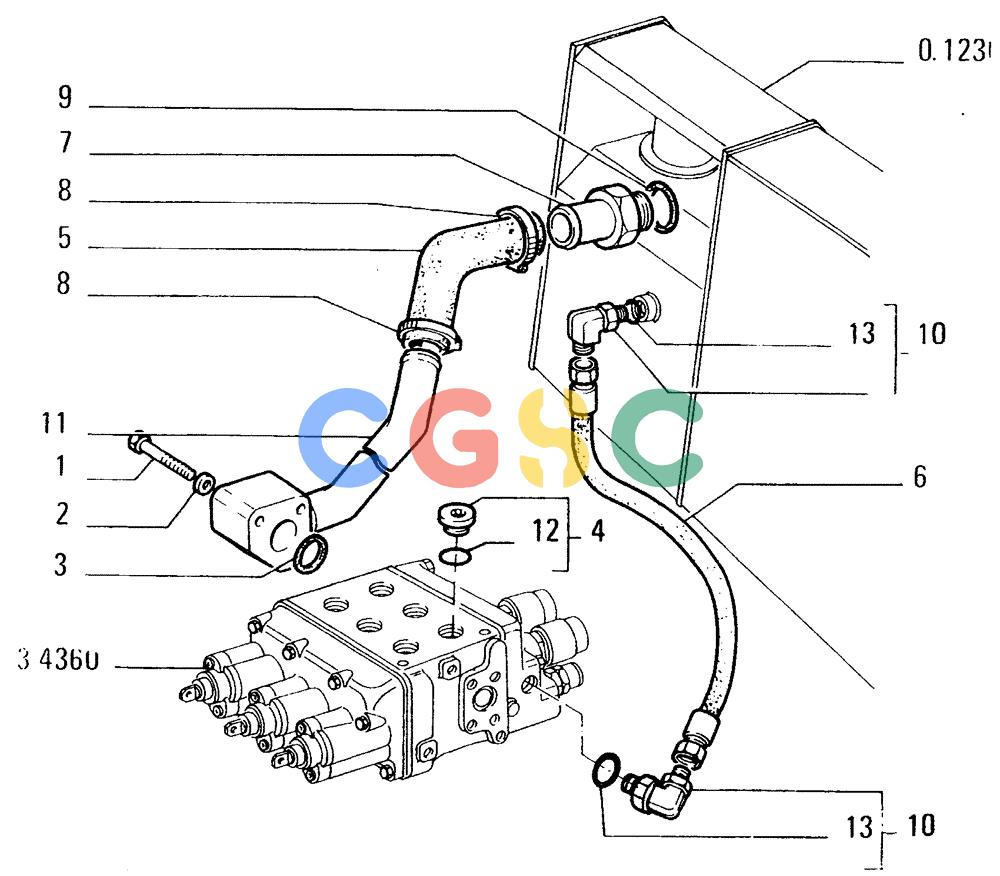

纽荷兰零件查询(FD14E) - CRAWLER DOZER (3.4340[002]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11107834 | [3] | SCREW | LEC Superseded by part number: 11107831 |
| 2. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 3. | 14463780 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro | LEC-219, 70 Duro, 1.296" ID x .139" Thk (M32.92 ID x 3.53 Thk) Superseded by part number: 353108 |
| 4. | 10119040 | [4] | PLUG,M27 x 2 x 20, Brass | LECAssy M27 x 2 x 20, Brass |
| 5. | 79086240 | [1] | FLEXIBLE HOSE,45.00 mm ID x 200.00 mm | LEC45.00 mm ID x 200.00 mm |
| 6. | 79079050 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 7. | 79079035 | [1] | BANJO BOLT | LECFILLER PLUG |
| 8. | 79083847 | [2] | HOSE CLAMP,M50-70 | LECCLAMP, HOSE, M50-70 |
| 9. | 79080438 | [1] | SEAL,42.9mm ID x 52.5mm OD x 3.4mm Thk | LECSEAL |
| 10. | 79067021 | [2] | HYD CONNECTOR | LECFITTING - ASSEMBLY |
| 11. | 79083684 | [1] | RIGID TUBE | LECTUBE |
| 12. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES24MM ID x 3.0 Thk |
| 13. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC15.3MM ID x 2.4 Thk |
