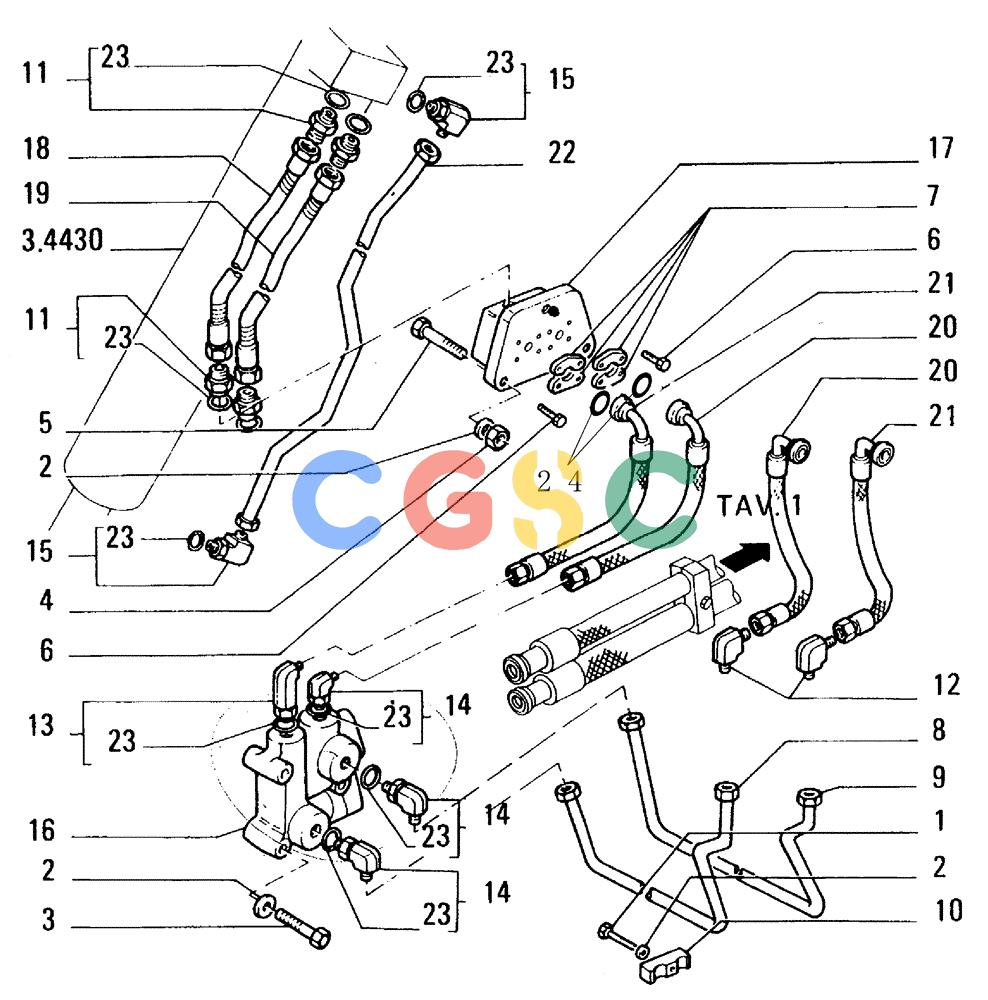

纽荷兰零件查询(FD14E) - CRAWLER DOZER (3.4400[002]) - LIFT CYLINDERS PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11107234 | [1] | BOLT,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 11107231 |
| 2. | 14496631 | [10] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 3. | 11107534 | [3] | SCREW | LEC Superseded by part number: 11107531 |
| 4. | 11701721 | [6] | NUT,M10, Cl 10 | LEC10x1,5x8 Superseded by part number: 17038131 |
| 5. | 14420634 | [6] | SCREW,M10 x 1.5 x 50mm | BUR10x1,25x50 Superseded by part number: 14420631 |
| 6. | 14420234 | [16] | SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC10x1,25x30 Superseded by part number: 14420231 |
| 7. | 76007732 | [8] | HALF-FLANGE | LECHALF FLANGE |
| 8. | 79084878 | [1] | RIGID TUBE | LECTUBE |
| 9. | 79084879 | [1] | RIGID TUBE | LECTUBE |
| 10. | 79084821 | [1] | CLAMP | LECBLOCK |
| 11. | 79066945 | [8] | HYD CONNECTOR | LECFITTING - ASSEMBLY |
| 12. | 79043379 | [2] | HYD CONNECTOR | LECFITTING |
| 13. | 79067042 | [1] | HYD CONNECTOR | LECFITTING - ASSEMBLY |
| 14. | 79067026 | [3] | HYD CONNECTOR | LECFITTING - ASSEMBLY |
| 15. | 79067025 | [2] | ELBOW | LECFITTING - ASSEMBLY |
| 16. | 79090098 | [1] | BLOCK | LEC |
| 17. | 79096371 | [2] | BLOCK | LEC |
| 18. | 79091155 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 19. | 79091246 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 20. | 79084865 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 21. | 79084866 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 22. | 79086889 | [2] | RIGID TUBE | LECTUBE |
| 24. | 14463280 | [2] | O-RING,24.99mm ID x 3.53" Width | BHB-214, 70 Duro, .984" ID x .139" Thk Superseded by part number: 14463281 |
| 23. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES24MM ID x 3.0 Thk |
