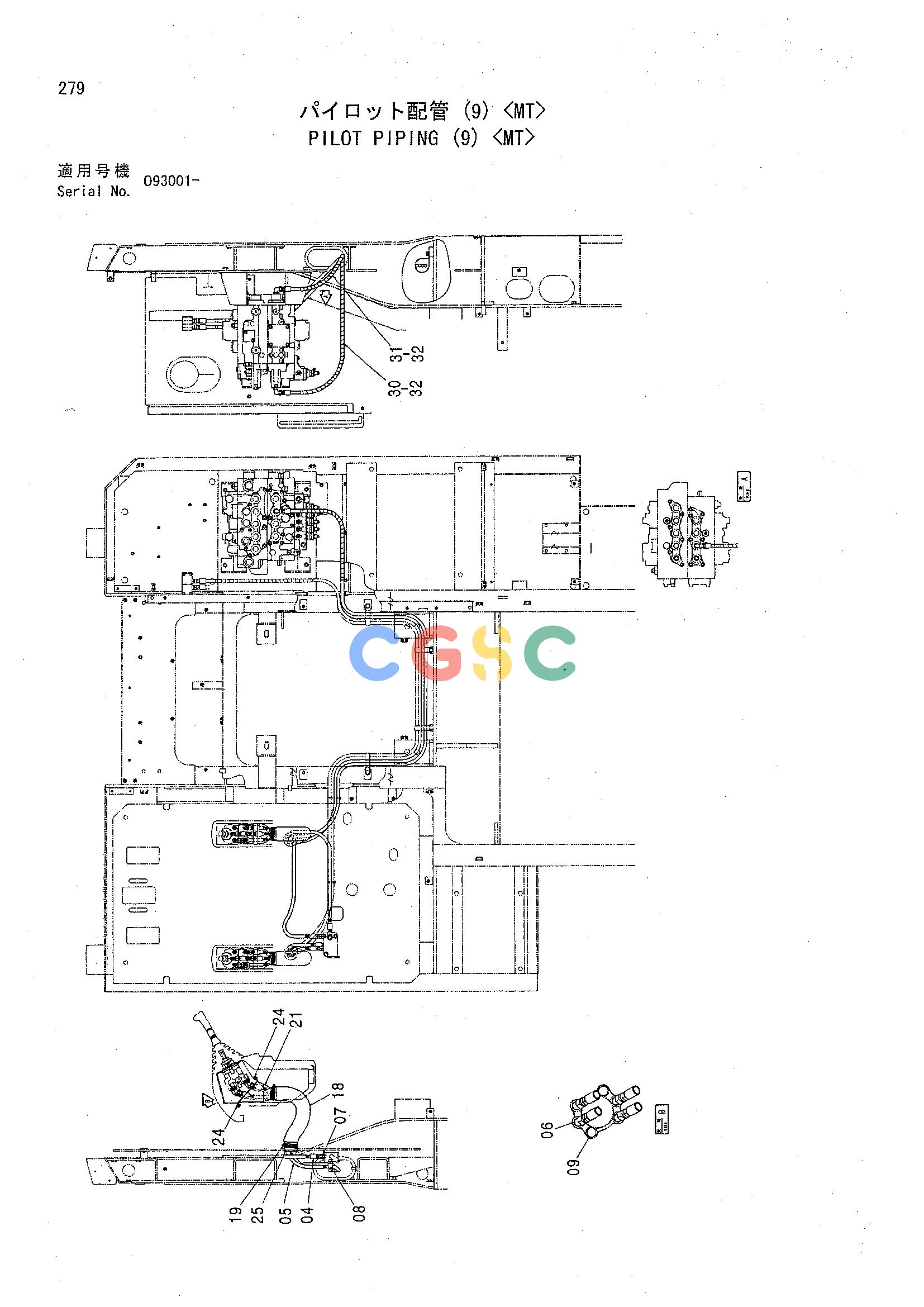

日立零件查询（CHR70）PILOT PIPING (9) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
408 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 04. | 4333395 | [1] | HOSE (P3) | |
| 05. | 4333580 | [1] | HOSE (T6) | |
| 06. | 4286916 | [4] | ELBOW;S | |
| 06A. | 957366 | [1] | O-RING | |
| 07. | 4261938 | [1] | FILTER | |
| 07A. | 4509180 | [1] | O-RING | |
| 08. | 4154671 | [1] | ELBOW;S | |
| 08A. | 4509180 | [1] | O-RING | |
| 09. | 4093624 | [2] | PLUG | |
| 09A. | 957366 | [1] | O-RING | |
| 18. | 4351175 | [1] | HOSE | |
| 19. | 4351774 | [1] | CLAMP;WIRE | |
| 21. | 3072745 | [1] | COVER | |
| 24. | J460620 | [2] | SCREW;SEMS | |
| 25. | 3079728 | [1] | BUSHING | |
| 30. | 4437979 | [1] | HOSE (7) | |
| 31. | 4437980 | [1] | HOSE (8) | |
| 32. | 4133527 | [4] | PROTECTOR | |
