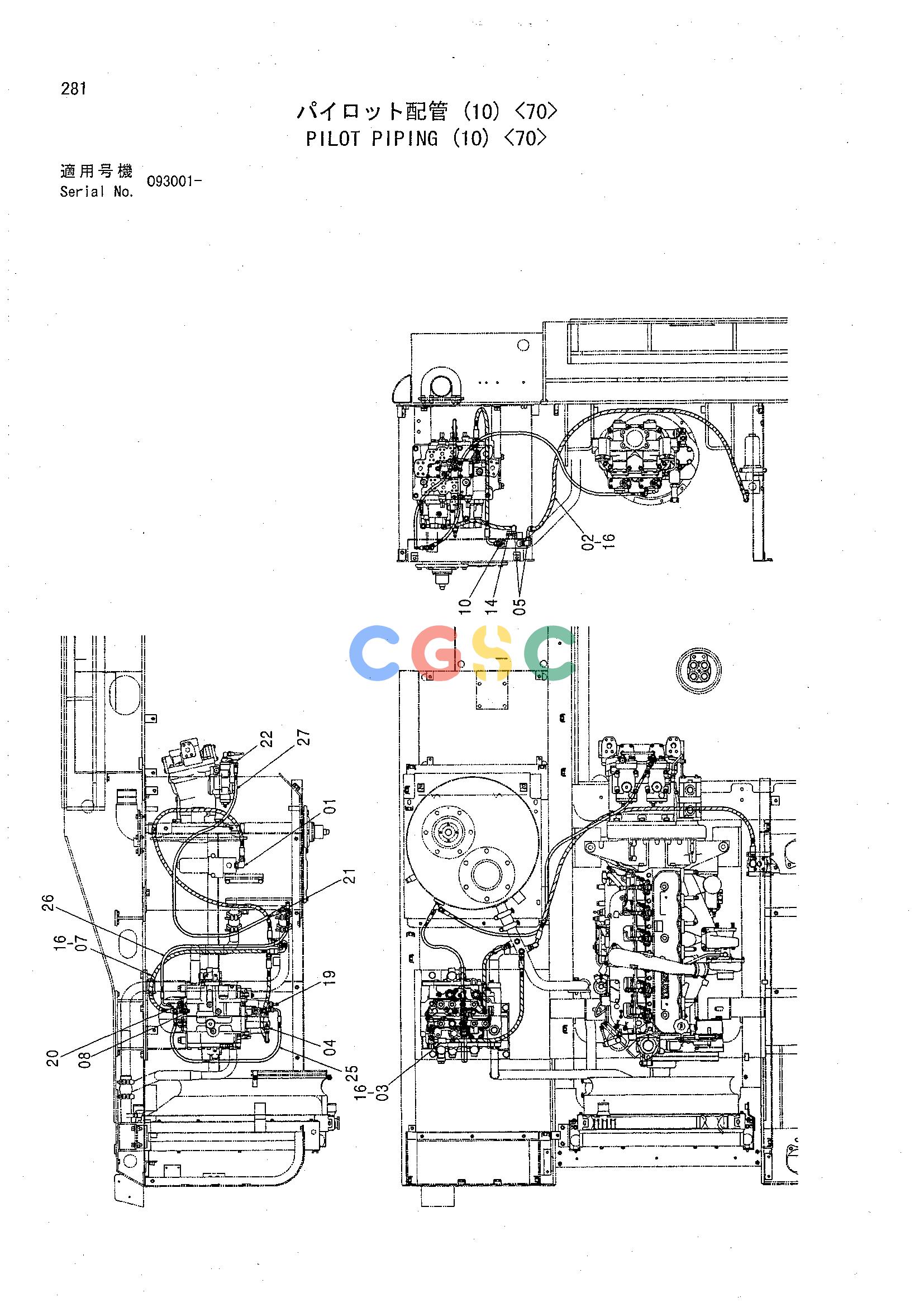

日立零件查询（CHR70）PILOT PIPING (10) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
544 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4200471 | [1] | ELBOW;S | |
| 01A. | 4506418 | [1] | O-RING | |
| 02. | 4368881 | [1] | HOSE (SQ) | |
| 03. | 4282195 | [1] | HOSE | |
| 04. | 4200467 | [1] | ADAPTER;S | |
| 04A. | 957366 | [1] | O-RING | |
| 05. | 4154671 | [2] | ELBOW;S | |
| 05A. | 4509180 | [1] | O-RING | |
| 07. | 4333390 | [1] | HOSE | |
| 08. | 4200467 | [1] | ADAPTER;S | |
| 08A. | 957366 | [1] | O-RING | |
| 10. | 4200466 | [1] | ADAPTER;S | |
| 10A. | 4509180 | [1] | O-RING | |
| 14. | 4092534 | [1] | PLUG | |
| 14A. | 4509180 | [1] | O-RING | |
| 16. | 4133527 | [6] | PROTECTOR | |
| 19. | 4200465 | [1] | ADAPTER;S | |
| 19A. | 957366 | [1] | O-RING | |
| 20. | 4269617 | [1] | TEE;S | |
| 20A. | 4509180 | [1] | O-RING | |
| 21. | 4203171 | [1] | TEE;S | |
| 21A. | 957366 | [1] | O-RING | |
| 22. | 4154670 | [1] | ELBOW;S | |
| 22A. | 957366 | [1] | O-RING | |
| 25. | 4448847 | [1] | HOSE (SM) | |
| 26. | 4386663 | [1] | HOSE | |
| 27. | 4342285 | [1] | HOSE (R2) | |
