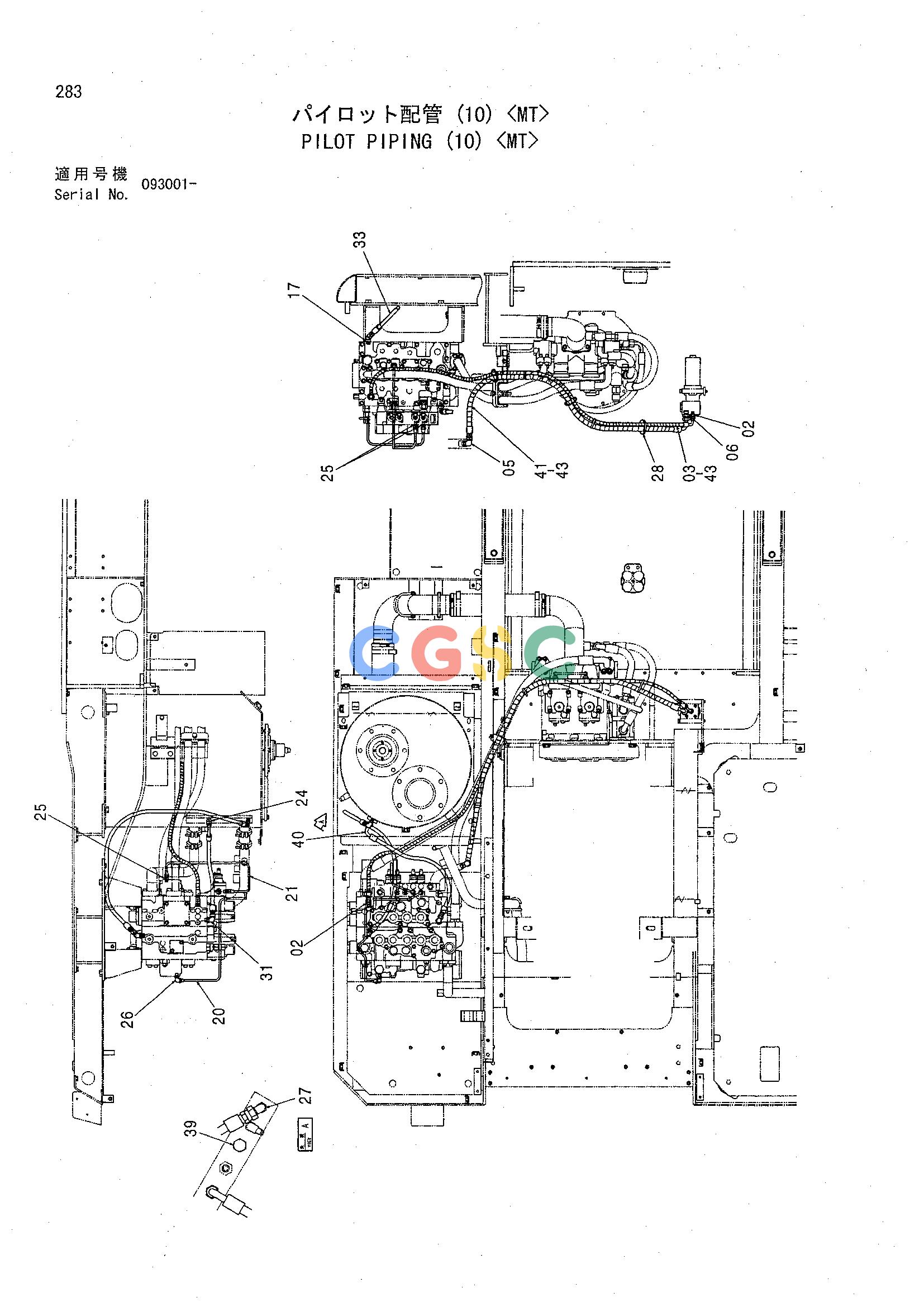

日立零件查询（CHR70）PILOT PIPING (10) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
390 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4200465 | [2] | ADAPTER;S | |
| 02A. | 957366 | [1] | O-RING | |
| 03. | 4440112 | [1] | HOSE (PI) | |
| 05. | 4219345 | [1] | ELBOW;S | |
| 05A. | 4509180 | [1] | O-RING | |
| 06. | A852144 | [1] | ADAPTER;S | |
| 06A. | 4506418 | [1] | O-RING | |
| 17. | A852233 | [1] | ELBOW;S | |
| 17A. | 4509180 | [1] | O-RING | |
| 20. | 3071730 | [1] | PIPE | |
| 21. | 3068867 | [1] | PIPE | |
| 24. | 4200466 | [1] | ADAPTER;S | |
| 24A. | 4509180 | [1] | O-RING | |
| 25. | 4255304 | [3] | FITTING;PIPE | |
| 25A. | 957366 | [1] | O-RING | |
| 26. | 4293950 | [1] | ELBOW;S | |
| 26A. | 957366 | [1] | O-RING | |
| 27. | 4156434 | [1] | ELBOW;S | |
| 27A. | 957366 | [1] | O-RING | |
| 28. | 4055312 | [10] | CLIP;BAND | |
| 31. | 4154671 | [1] | ELBOW;S | |
| 31A. | 4509180 | [1] | O-RING | |
| 33. | 4440113 | [1] | HOSE;PLASTIC (DH) | |
| 39. | 4092534 | [1] | PLUG | |
| 39A. | 4509180 | [1] | O-RING | |
| 40. | 4440114 | [1] | HOSE;PLASTIC (DC) | |
| 41. | 4440110 | [1] | HOSE (TA) | |
| 43. | 4327293 | [8] | PROTECTOR | |
