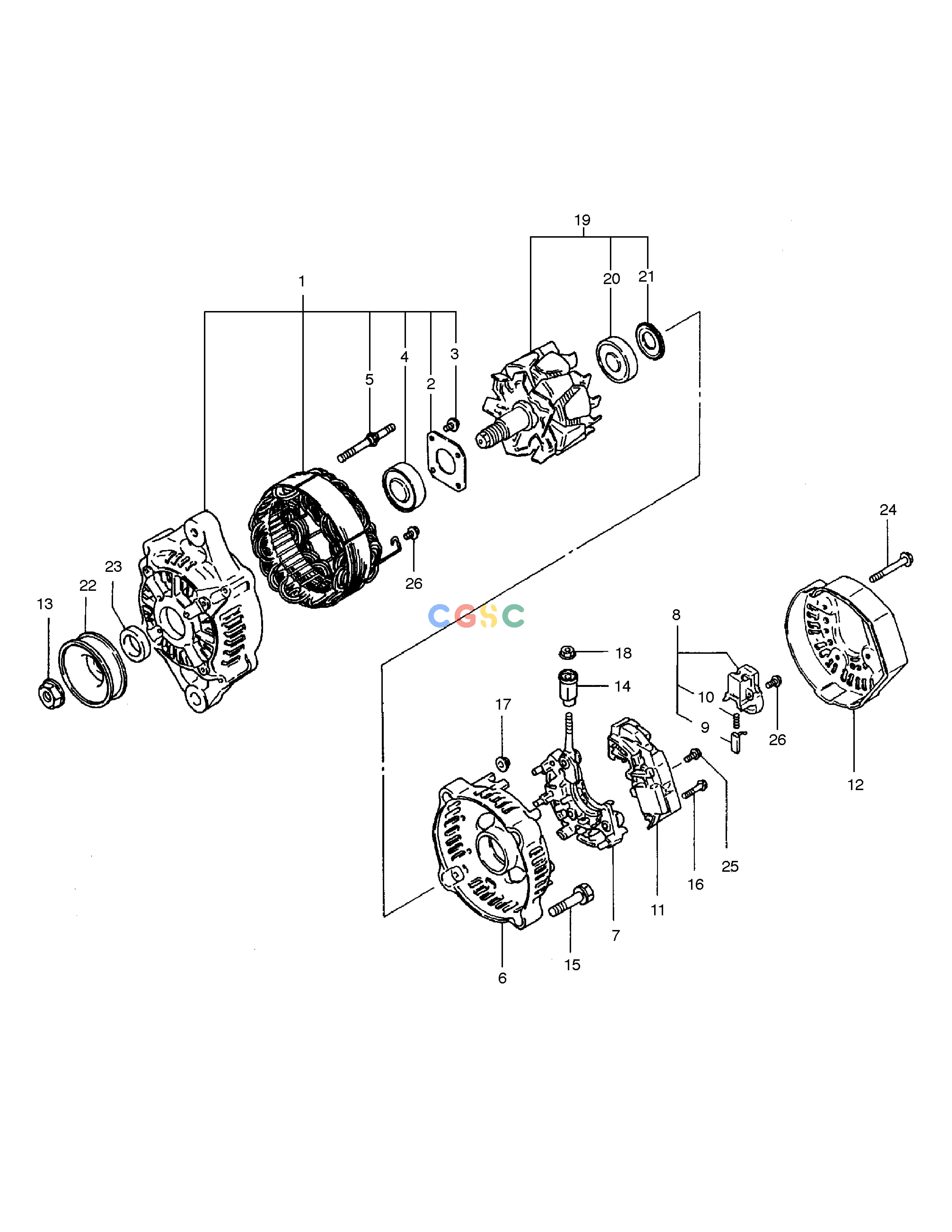

斗山零件查询GENERATOR SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
897305-2040
|
[1] |
GENERATOR ASS'Y
|
|
| 1. |
897075-9650
|
[1] |
FRAME ASS'Y;DRIVE END
|
|
| 10. |
894123-0570
|
[2] |
SPRING
|
|
| 11. |
894455-1600
|
[1] |
REGULATOR ASS'Y
|
|
| 12. |
897072-8430
|
[1] |
COVER;REA END
|
|
| 13. |
897072-8350
|
[1] |
NUT
|
|
| 14. |
894455-1660
|
[1] |
BUSH;INSULATION
|
|
| 15. |
894455-1640
|
[2] |
BOLT;FLANGE
|
|
| 16. |
894123-0610
|
[2] |
SCREW;W/WASHER
|
|
| 17. |
894123-0640
|
[2] |
NUT
|
|
| 18. |
894206-1860
|
[1] |
NUT
|
|
| 19. |
897072-8400
|
[1] |
ROTOR ASS'Y
|
|
| 2. |
894455-1540
|
[1] |
PLATE;RETAINER
|
|
| 20. |
894135-7530
|
[1] |
BEARING;BALL
|
|
| 21. |
894123-0510
|
[1] |
COVER;BEARING
|
|
| 22. |
897072-8340
|
[1] |
PULLEY
|
|
| 23. |
897072-8360
|
[1] |
COLLAR;SPACE
|
|
| 24. |
894455-1630
|
[3] |
BOLT
|
|
| 25. |
894455-1620
|
[1] |
SCREW
|
|
| 26. |
894455-1610
|
[6] |
SCREW
|
|
| 3. |
897072-8390
|
[4] |
SCREW
|
|
| 4. |
897072-8380
|
[1] |
BEARING;BALL
|
|
| 5. |
894455-1560
|
[2] |
STUD
|
|
| 6. |
897072-8410
|
[1] |
FRAME;REAR END
|
|
| 7. |
897072-8420
|
[1] |
HOLDER ASS'Y;RECTIFIER
|
|
| 8. |
894159-7810
|
[1] |
HOLDER ASS'Y;BRUSH
|
|
| 9. |
894123-0560
|
[2] |
BRUSH
|
|
